Name: HIKROBOT VC3000 Series
Brand: HIKROBOT
SKU: MV-VC3101X-128G60
Availability: InStock

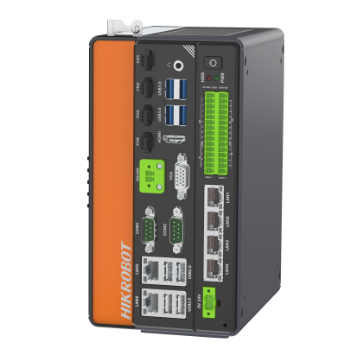

MV-VC3101X-128G60

The VC3000 vision controller is a new generation of control and processing equipment for vision inspection. It has flagship computing power and a comprehensive control/Data Interface. It has good compatibility with machine Vision Components in common positioning, detection, measurement, identification and other tasks.

Product introduction

Functional characteristics

Equipped with a desktop-level Intel 12th generation CPU, provides powerful computing Performance
Powerful expansion slot configuration to meet the expansion of commonly used image acquisition interfaces in machine vision, Performance stability
Supports 24-channel GPIO input and output functions, outputs support NPN/PNP switching
Adopt gigabit network interface, supports high-speed and stable image transmission

Ordering Model

MV-VC3101X-128G60

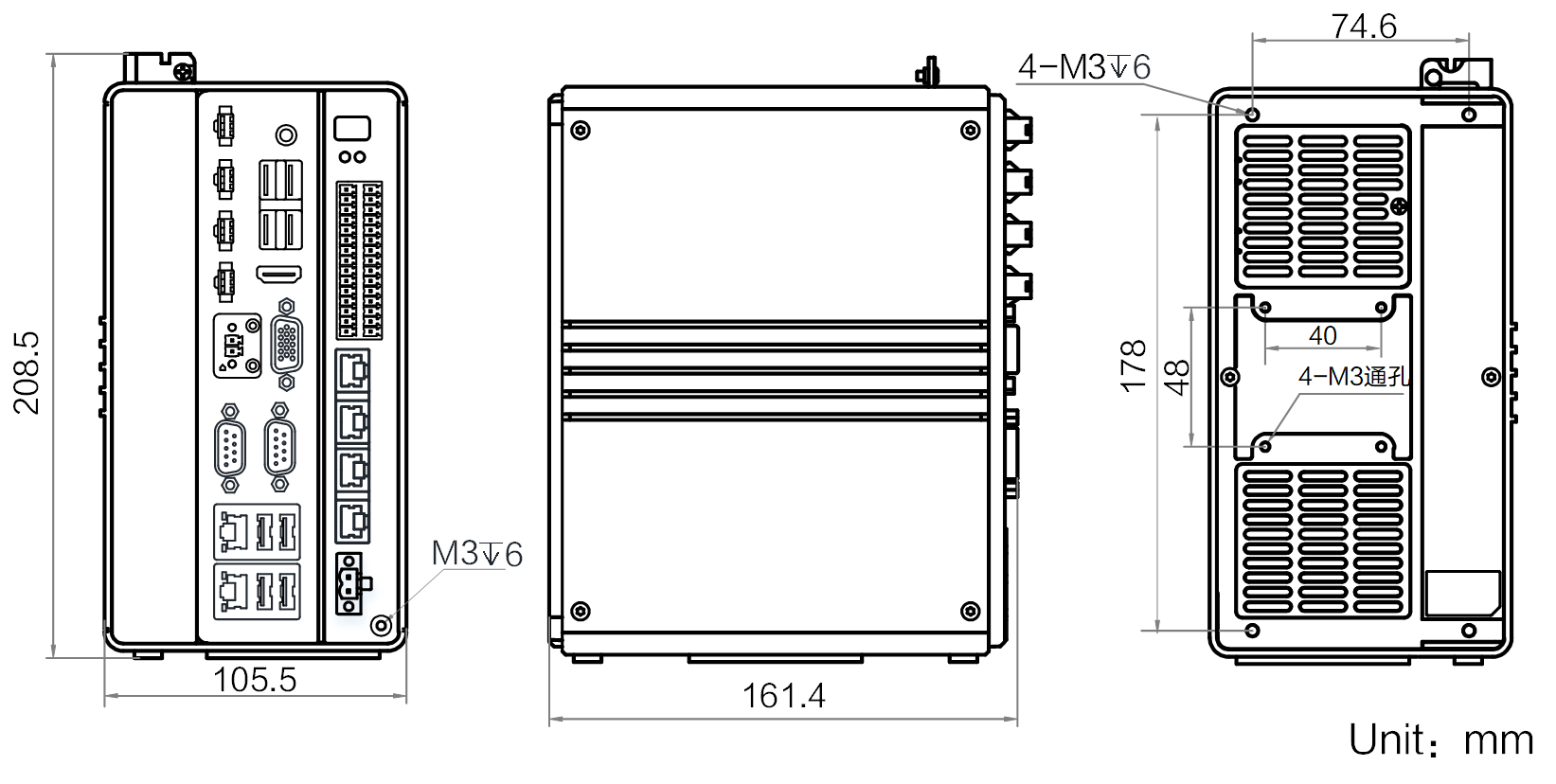

Dimensions

* The data involved in the product may cause differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-VC3101X-128G60

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-VC3101X-128G60

Model

Model	MV-VC3101X-128G60
Name	VC3000X vision controller, G6900, 8GB +128G SSD, no POE, supports PCIE extension (configuration sheet required);

Performance

Processor	Intel® Celeron® G6900
Memory	8 GB
Storage	128G SSD
GPU	Intel ® Core Graphics 710
Operating System	Windows 10, not activated

Encryption

Encryption Method

External Interfaces

Video Output	1 HDMI port, 1 VGA port Support simultaneous independent display and output The HDMI port supports a maximum of 1920 × 1080@60Hz, and the VGA port supports a maximum of 1920 × 1440@60Hz
Digital I/O	Support 8 digital isolated inputs Supports 16 optocoupler isolated outputs (supports NPN/PNP switching)
Network Interface	6 Gigabit Ethernet ports
USB Interface	4 USB 2.0 Interfaces 4 USB 3.0 Interfaces
Serial Port	2 channels full-featured RS-232, supporting RS-485 and RS-422 switching
Lighting Interface	4 channels 24V constant voltage Light Source drive, single Max. Power Consumption72 W, four-way Max. Power Consumption80 W
