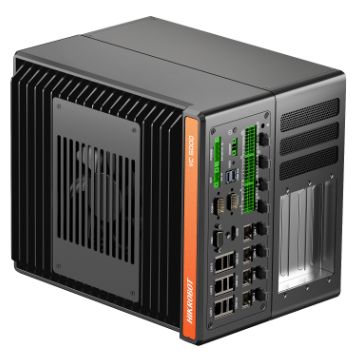

Name: HIKROBOT VC5000 Series
Brand: HIKROBOT
SKU: MV-VC5314-256G70-2T
Availability: InStock

MV-VC5525-256G70-NN

The VC5000 Series is an AI-supporting edge vision controller. It is equipped with Intel 12th generation High Performance Processor. The machine is mechanically compact, has rich visual interfaces, and powerful comprehensive Performance. It can provide efficient and stable control and data transmission services. Flexible modular design supports multiple PCIE extensions: Frame Grabbers/graphics cards, etc. It can be widely used in scenarios such as multi-station inspection and AI applications. It is a terminal processing device for vision inspection systems.

Product introduction

Functional characteristics

Equipped with a desktop Intel 12th generation CPU, provides powerful computing Performance
Supports multiple PCIe expansion, portable expansion of Frame Grabbers, peripherals for graphics cards
Supports 32 GPIO input and output functions, and some outputs Support NPN/PNP switching
adopts Gigabit network port, supports high-speed and stable image transmission
Supports multi-channel Light Source control, supports high-speed synchronous control

Ordering Model

MV-VC5525-256G70-NN

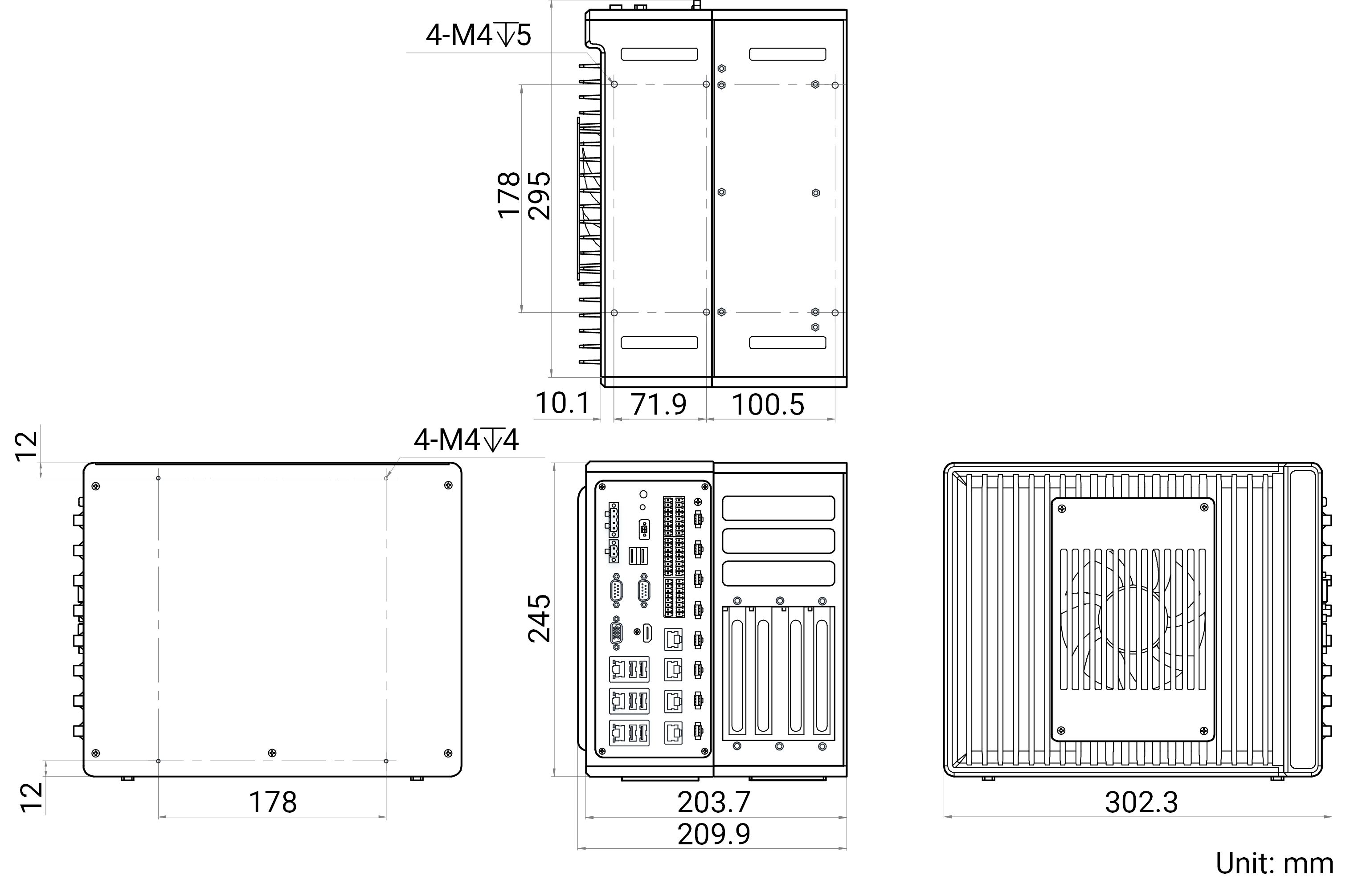

Dimensions

* Data involved in the product may occur due to environmental factors and other factors Differences The company will not bear the consequences arising therefrom.

Ordering Model

MV-VC5525-256G70-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-VC5525-256G70-NN

Model

Model	MV-VC5525-256G70-NN
Name	VC5000 vision controller, 12th-I5, 32GB +256G SSD, POE support, PCIE extension support

Performance

Processor	Intel® CoreTM i5-12400
Memory	16 GB×2
Storage	256G SSD
GPU	Intel® UHD Graphics 730
Operating System	Windows 10, not activated
Chipset	Q670

Interface

Video Output	1 HDMI port, 1 VGA port Support simultaneous independent display and output Maximum support for 1920 × 1080@60Hz
Digital I/O	Support for 8 optocoupler isolated inputs Support 12 optocoupler isolated outputs (support NPN/PNP switching), 8 digitally isolated low-side driver outputs Supports 4 channels of non-isolated bidirectional configurable differential IO
Network Interface	7 Gigabit network ports, 4 of which support PoEPower Supply
USB Interface	4 USB 2.0 Interfaces 4 USB 3.0 Interfaces 1 built-in USB2.0 Interface
Serial Port	Default 2-channel RS-232, optionally configured as RS-485 or RS-422
Lighting Interface	8-channel 24V constant voltage Light Source drive, single Max. Power Consumption72W,8-way Max. Power Consumption190W
Expansion Interface	2 SATA3.0 Interface, 1 M.2 NVMEExpansion Interface, 1 PCIe x16 extension, 1 PCIe x8 extension, 1 PCIe x4 extension

Electrical

Power Supply	24 V(4-pinInterface System Power Supply) 24 V(2-pinInterface Graphics Power Supply)
Typical Power Consumption	384 W(4-pinInterface System Power Supply) 228 W(2-pinInterface graphics card Power Supply)

Mechanical

Dimensions	302.3 mm × 248 mm × 210 mm
Weight	About 7.5 kg
Temperature	0 ~ 45 °C(using graphics card) 0 ~ 50 °C(without graphics card)
Humidity	20% ~ 95% RH No condensation
