HIKROBOT VC5000 Series

MV-VC5714-256G70-NN

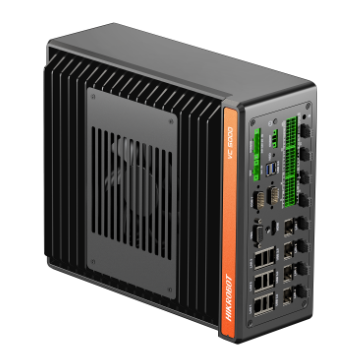

The VC5000 Series is an AI-supporting edge vision controller. It is equipped with Intel 12th generation High Performance Processor. The machine is mechanically compact, has rich visual interfaces, and powerful comprehensive Performance. It can provide efficient and stable control and data transmission services. Flexible modular design supports multiple PCIE extensions: Frame Grabbers/graphics cards, etc. It can be widely used in scenarios such as multi-station inspection and AI applications. It is a terminal processing device for vision inspection systems.

Consulting quotation
MV-VC5714-256G70-NN

Product introduction

Features

  • Equipped with desktop-level Intel 12th generation CPU, providing powerful computing Performance

  • Support 32-channel GPIO input and output functions, some outputs support NPN/PNP switching

  • Gigabit Ethernet port, support high-speed stable image transmission

  • Support multi-channel Light Source control, support high-speed synchronous control



Order Model

MV-VC5714-256G70-NN


Dimensions


* Product data may be due to environmental factors Differences , the company does not assume the consequences arising therefrom

Ordering Model

MV-VC5714-256G70-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Overall size

Detailed parameters

Ordering Model MV-VC5714-256G70-NN
Model
Model MV-VC5714-256G70-NN
Name VC5000 vision controller, 12th-I7, 16GB +256G SSD, POE support, no PCIE extension
Performance
Processor Intel® CoreTM i7-12700
Memory 16 GB×1
Storage 256G SSD
GPU Intel® UHD Graphics 770
Operating System Windows 10, not activated
Chipset H610
Interface
Video Output 1 HDMI port, 1 VGA port Support simultaneous independent display and output Maximum support for 1920 × 1080@60Hz
Digital I/O Support for 8 optocoupler isolated inputs Support 12 optocoupler isolated outputs (support NPN/PNP switching), 8 digitally isolated low-side driver outputs Supports 4 channels of non-isolated bidirectional configurable differential IO
Network Interface 7 Gigabit network ports, 4 of which support PoEPower Supply
USB Interface 4 USB 2.0 Interfaces 4 USB 3.0 Interfaces 1 built-in USB2.0 Interface
Serial Port Default 2-channel RS-232, optionally configured as RS-485 or RS-422
Lighting Interface 8-channel 24V constant voltage Light Source drive, single Max. Power Consumption72W,8-way Max. Power Consumption190W
Expansion Interface 2 SATA3.0 Interfaces
Electrical
Power Supply 24 V (4-pinInterface System Power Supply)
Typical Power Consumption 264 W (4-pinInterface System Power Supply)
Mechanical
Dimensions 302.3 mm × 248 mm × 105.2 mm
Weight About 6 kg
Temperature 0 ~ 50 °C
Humidity 20% ~ 95% RH No condensation
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
