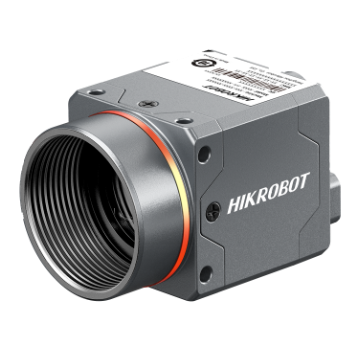

HIKROBOT CT Series Industrial Area Scan Cameras

MV-CT016G-249UM01-BASE

1440 × 1080, USB3.0, Black and white

Consulting quotation
MV-CT016G-249UM01-BASE

Product introduction

Functional characteristics

  • PRO and MAX versions support fully waterproof Interface

  • PRO and MAX versions are equipped with precise temperature control systems to achieve rapid thermal balance

  • PRO color version is equipped with multi-spectral fusion technology and supports automatic color correction

  • MAX version integrates Lenses and Light Source integrated control to enable Lenses focus and Light Source control

  • Type-C Interface, supports higher transmission bandwidth

  • Compatible with USB3 Vision protocol and GenlCamStandard, Seamless access to third-party Software



Ordering Model

MV-CT016G-249UM01-BASE


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CT016G-249UM01-BASE

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

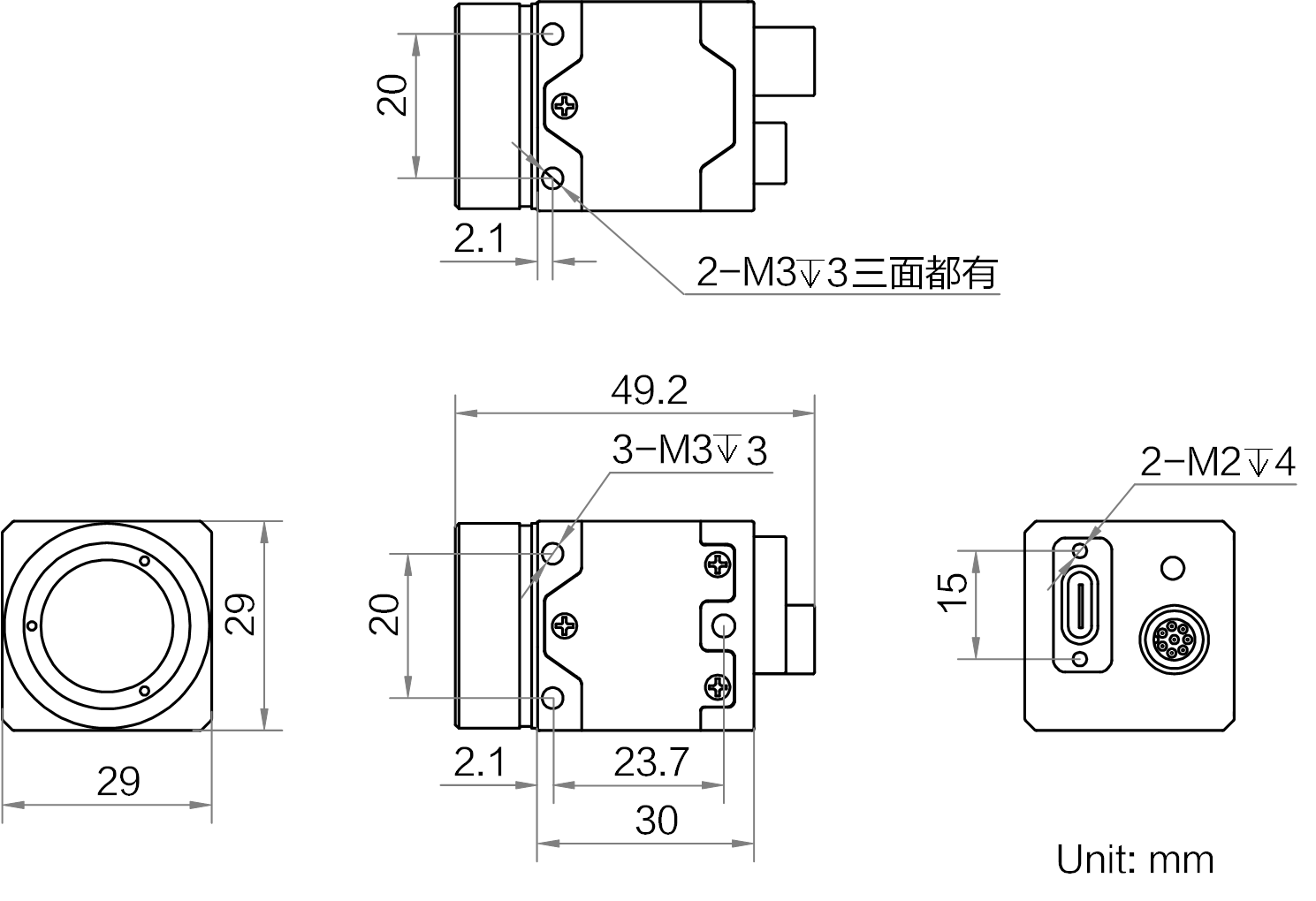

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CT016G-249UM01-BASE
Product Model MV-CT016G-249UM01-BASE
Sensor Model Stacked BSI
Resolution 1440 × 1080
Max. Frame Rate 249.0 fps
Data Interface USB3.0
Mono/Color Black and white

Data download

Product manual· SDK ·Development documentation
