Name: HIKROBOT DD Series
Brand: HIKROBOT
SKU: MV-DD020-03H
Availability: InStock

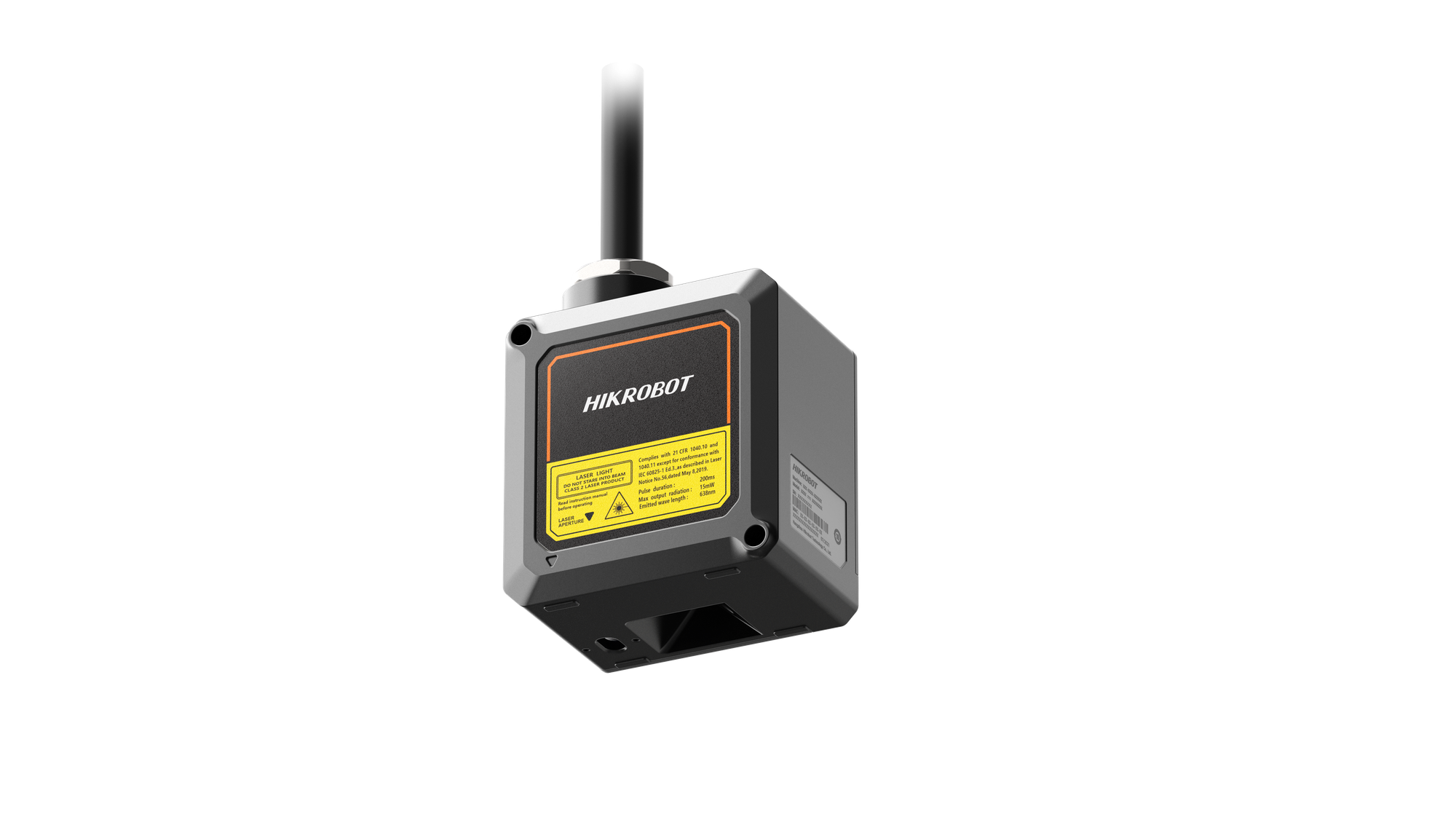

MV-DD020-03H

Laser Displacement Sensors uses laser triangulation method to capture laser point images on the surface of the measured object in real time through a high frame rate image acquisition chip, and convert image coordinates into spatial coordinates based on Camera internal parameter calibration data, thereby achieving high-precision real-time distance measurement. Due to its high speed and high precision characteristics, this Sensor is especially suitable for precision detection of industrial scenarios such as film thickness and plate flatness.

Product introduction

Functional characteristics

Ultra-high-speed chip, frame rate up to 592 kHz
Subpixel algorithm technology, accuracy up to sub-micron level
Customized Optical system, more stable imaging
Automatic lighting control technology, debugging is simpler
Supports multiple filtering modes, more flexible application
Supports multiple computing logic, more intuitive detection
Supports result output function, more convenient control

Ordering Model

MV-DD020-03H

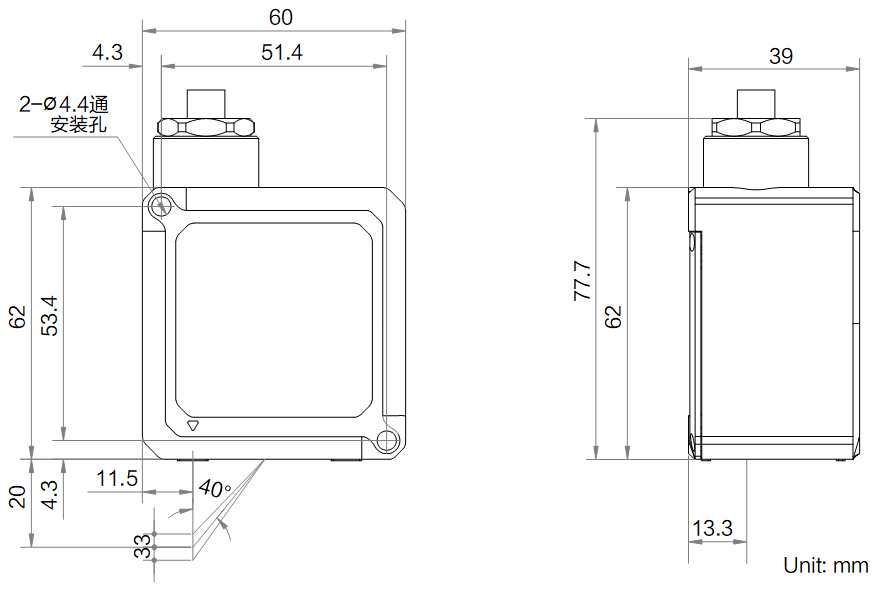

Dimensions

* The data involved in the product may cause Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MV-DD020-03H

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DD020-03H

Model

Model	MV-DD020-03H
Name	Spot laser displacement sensor

Performance

Spot diameter	Ф55 μm
Reference Distance	20 mm
Z-Axis Measurement Range	6 mm
Z-Axis Repeatability	0.05 μm@Sensor Test data of Standard gauge blocks on the Optical Platform
Z-Axis Linearity (±% of MR)	0.03
Trigger Mode	External encoder trigger
Sampling frequency	1 kHz, 2 kHz, 5 kHz, 10 kHz, 20 kHz, 50 kHz, 88 kHz, 200 kHz, 400 kHz, 592 kHz(10 different gears)

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O, including 2 digital signal inputs and 4 digital signal outputs. 1 analog output (supports analog voltage 0 ~ 10V or analog current 4 ~ 20 mA)
Power Supply	24 VDC
Typical Power Consumption	5 W@24 VDC

Mechanical

Mounting Method	Diffuse reflection
Dimensions	62 mm × 60 mm × 39 mm(excluding SRCables)
Weight	Approximately 320 g
IP Rating	IP67
Temperature	Operating Temperature0°C ~ 45°C, Storage Temperature-30°C ~ 80°C Operating Temperature0 °C ~ 45 °C, Storage Temperature-30 °C ~ 80 °C 12→34 12 → 34
Humidity	20%~85%RH No condensation
