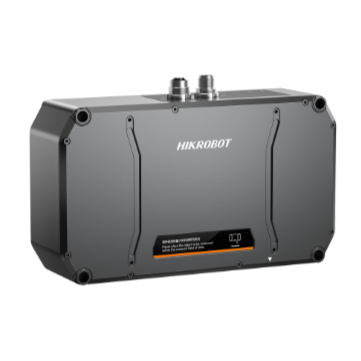

Name: HIKROBOT DS5000 Series
Brand: HIKROBOT
SKU: MV-DS5040-02H
Availability: InStock

MV-DS5040-02H

3D Structured Light Sensors, based on phase-shifting Mechanical optical coding and decoding technology, generates 3D point cloud data on the surface of the object under test in real time through projection encoded images of the surface of the object under test collected by high-speed area array cameras. It is suitable for static, non-contact, high-precision, high-speed 3D data acquisition scenarios, and is widely used in 3C, auto parts, Lithium Battery, semiconductor and other industries.

Product introduction

Functional characteristics

Phase-shift mechanical optical coding and decoding technology, with accuracy up to submicron level
Hardware multi-core asynchronous processing architecture, with a maximum frame rate of 9 frames
Customized Sham Optical system, better imaging quality
Support multiple exposure modes, stronger material robustness
Precise signal synchronization design, more accurate trigger response
Integrated design, simpler system integration

Ordering Model

MV-DS5040-02H

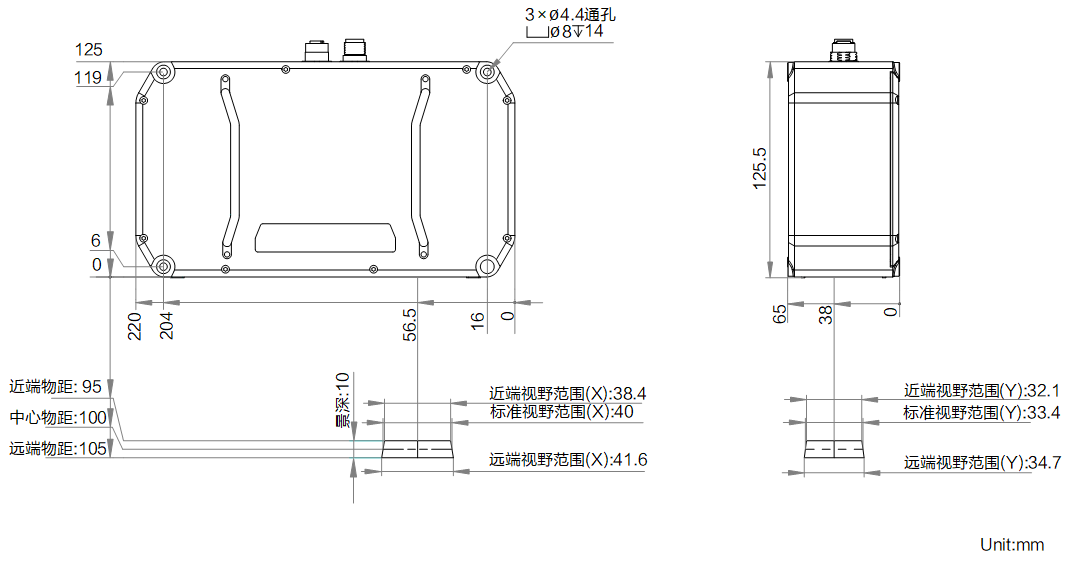

Dimensions

* Product data may cause Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MV-DS5040-02H

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DS5040-02H

Model

Model	MV-DS5040-02H
Name	3D Structured Light Sensors

Performance

Image Resolution	2472 × 2064
Full cycle frame rate	3 fps @ 5.1 M 9 fps @ 1.3 M
Reference distance	100 mm
Field of view	38.4 mm × 32.1 mm@Near Field of View 40 mm × 33.4 mm@ reference field of view 41.6 mm × 34.7 mm@Far Field of View
Z-Axis Measurement Range	±5 mm @ Reference Distance
Z-Axis Repeatability	<0.1 μm
Pixel Spacing	0.016 mm
Light Source Type	Blue LED
Light SourceWavelength	450 nm

Electrical

Data Interface	Gige Ethernet
Power Supply	24 VDC
Digital I/O	12-pin Aviation Connector provides Power Supply and I/O:1 optocoupler isolated input, 1 differential input, 1 differential output
Typical Power Consumption	25 W@24 VDC

Mechanical

Dimensions	220 mm × 125.5 mm × 65 mm
Weight	1.9 kg
IP Rating	IP67
Temperature	Operating Temperature0 °C ~ 45 °C; Storage Temperature-10 °C ~ 60 °C
Humidity	20%~85% No condensation

General Specifications

Software	3DMVS, VM3D and other third-party 3DSoftware
Operating System	Windows 7/10 32/64bits, Windows 11 64bits (8G Memory, i5 Processor)
Certification	CE,RoHS
