Name: HIKROBOT DLS Series
Brand: HIKROBOT
SKU: MV-DLS300P-04
Availability: InStock

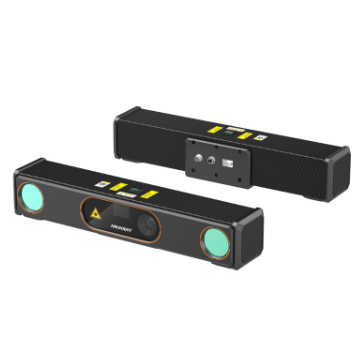

MV-DLS1400P

DLS SeriesCamera uses high-uniformity single-line laser with high-precision galvanometer scanning technology, combined with high-PerformanceOptical system, high-Performance processing chips, and high-strength materials. It can cope with many working conditions such as light absorption, high reflection, and environmental light interference, achieving high-precision, high-stability 3D imaging is widely used in workpiece grabbing and other applications.

Product introduction

Functional characteristics

Using laser galvanometer technology, submillimeter image acquisition accuracy
Support multi-frame fusion, without fear of reflection interference from the surface of metal workpieces
High-energy-efficient Optical Module is used with precise exposure synchronization to make Performance more stable
Supports synchronous alignment output of RGB and depth maps, which is convenient for secondary development
Equipped with narrowband filter, with stronger anti-interference capabilities and a wider Dynamic Range
Large field of view design, Wider scope of application

Ordering Model

MV-DLS1400P

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DLS1400P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DLS1400P

Model

Model	MV-DLS1400P
Name	Laser Galvanometer Stereoscopic Camera (MV-DLS 1400P)

Performance

Near Field of View	1400 mm × 1200 mm
Far Field of View	3300 mm× 2700 mm
Clear Distance (CD)	1500 mm
Measurement Range (MR)	2000 mm
Resolution	4000 × 3000@RGB Diagram 1920 × 1456@Depth map
Depth map detection accuracy	X,Y:0.8 mm@1.5 m;1.4 mm@3 m Z:0.3 mm@1.5 m;1.0 mm@3 m
Color map detection accuracy	X,Y:0.4 mm@1.5 m;0.8 mm@3m
Scan Frame Rate	1 fps
Data Type	Original map (black and white + color), depth map,RGB-D map, dynamic mask map

Electrical

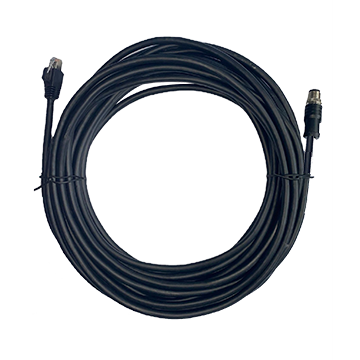

Data Interface	Gigabit Ethernet(1000Mbit/s)

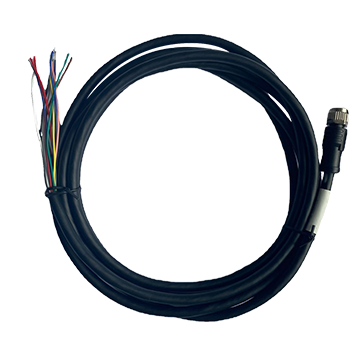

Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	12 ~ 24 VDC
Typical Power Consumption	15W@24 VDC

Mechanical

Dimensions	538 mm × 101 mm × 117.8 mm
Weight	Approximately 3.34 kg
IP Rating	IP65
Temperature	Operating Temperature 0 ~ 40°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
