Name: HIKROBOT DLS Series
Brand: HIKROBOT
SKU: MV-DLS300P-04
Availability: InStock

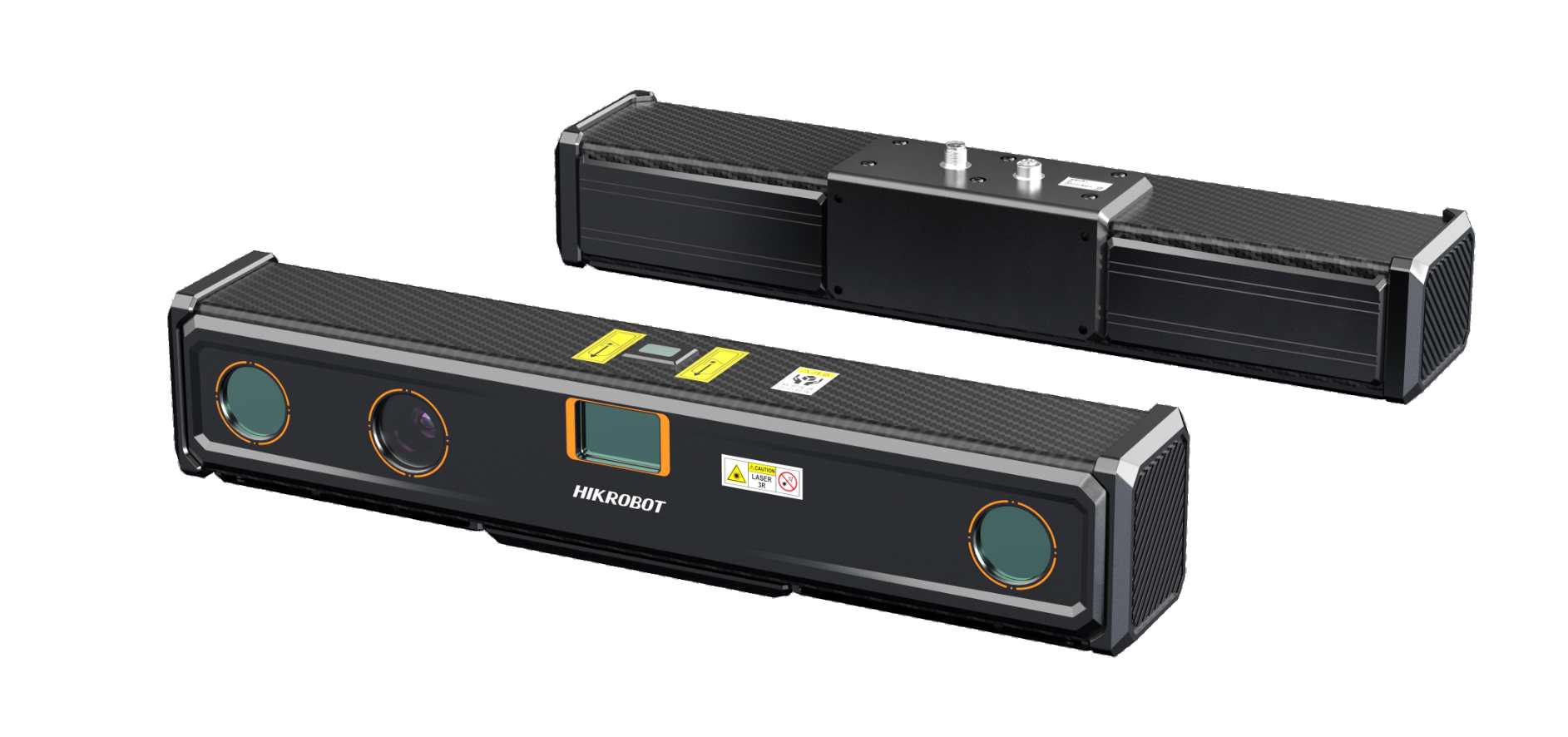

MV-DLS600P

DLS SeriesCamera uses high-uniformity single-line laser with high-precision galvanometer scanning technology, combined with high-PerformanceOptical system, high-Performance processing chips, and high-strength materials. It can cope with many working conditions such as light absorption, high reflection, and environmental light interference, achieving high-precision, high-stability 3D imaging is widely used in workpiece grabbing and other applications.

Product introduction

Functional characteristics

Using laser galvanometer technology, submillimeter image acquisition accuracy
High-energy-efficient Optical Module is combined with precise exposure synchronization to make Performance more stable
Supports multi-frame fusion without fear of reflection on the surface of metal workpieces
Supports synchronous alignment output of RGB and depth maps, which is convenient for secondary development
Equipped with narrowband filter, with stronger anti-interference capabilities and a wider Dynamic Range
Carbon fiber shell, The whole machine is lighter and stronger

Ordering Model

MV-DLS600P

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-DLS600P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DLS600P

Model

Model	MV-DLS600P
Name	Galvanometer Stereoscopic Camera (MV-DLS 600P)

Performance

Near Field of View	580 mm × 520 mm
Far Field of View	1220 mm× 960 mm
Clear Distance (CD)	1200 mm
Measurement Range (MR)	1000 mm
Resolution	3072 × 2048@RGB Diagram 1440 × 1080@Depth map
Depth map detection accuracy	X,Y:0.5 mm@1.2 m;1 mm@2 m Z:0.2 mm@1.2 m;0.4 mm@2 m
Color map detection accuracy	X,Y:0.5 mm@1.2 m;1 mm@ 2m
Scan Frame Rate	1 fps
Data Type	Original map (black and white + color), depth map,RGB-D map, dynamic mask map

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	12 ~ 24 VDC
Typical Power Consumption	15 W@24 VDC

Mechanical

Dimensions	492 mm × 99.2 mm × 94.5 mm
Weight	Approximately 2.5 kg
IP Rating	IP65
Temperature	Operating Temperature 0 ~ 40°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
