Name: HIKROBOT DLS-L Series
Brand: HIKROBOT
SKU: MV-DLS1400M-15L
Availability: InStock

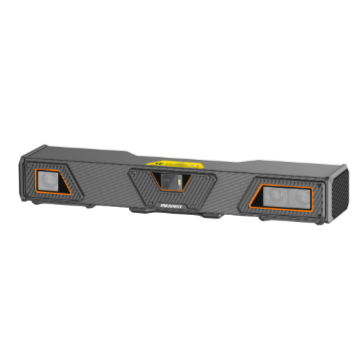

MV-DLS1400M-15L

DLS-L SeriesCamera uses multi-line laser galvanometer scanning technology, combines binoculars with a high Resolution color imaging system, and built-in highly robust 3D image processing algorithms to provide submillimeter accuracy and generate high-quality RGB-D images. Camera is specially designed for industrial applications and is suitable for scenarios such as loading and unloading of workpieces, disorderly grabbing, and assembly guidance.

Product introduction

Functional characteristics

Customized Optical system, excellent imaging quality
Multi-line highly uniform laser, strong ability to resist ambient light, complete and delicate point clouds
Multi-core parallel processing architecture, high processing efficiency
RGB, depth map synchronized alignment, convenient and fast secondary development
High-strength carbon fiber design, high stability
Large field of view design, suitable for long-distance applications

Ordering Model

MV-DLS1400M-15L

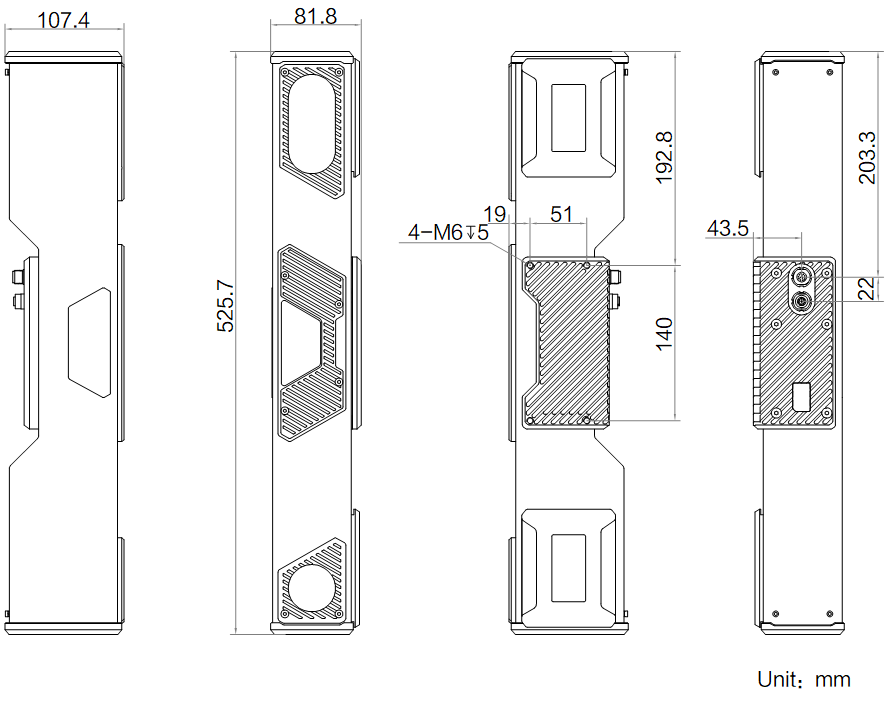

Dimensions

* Product data involved may be caused by environmental and other factors Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MV-DLS1400M-15L

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DLS1400M-15L

Model

Model	MV-DLS1400M-15L
Name	Laser Galvanometer Stereoscopic Camera

Performance

Near Field of View	1300 mm × 1100 mm@1500 mm
Far Field of View	2940 mm × 2570 mm@3500 mm
Clear Distance (CD)	1500 mm
Typical Field of View	2200 mm × 1840 mm@2500 mm
Measurement Range (MR)	2000 mm
Resolution	4000 × 3000@RGB Map 1920 × 1536@Depth map
Z-Axis Repeatability	0.2 mm@2500 mm
VDI/VDE accuracy	0.3 mm@2500 mm
Data Type	Original map (black and white + color), depth map,RGB-D map
Acquisition time	0.9 s ~ 1.4 s
Plot delay time	1.4 s ~ 1.9 s

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 V DC
Typical Power Consumption	17 W@24 V DC

Mechanical

Dimensions	525.7 mm × 81.8 mm × 107.4 mm
Weight	Approximately 2.6 kg
IP Rating	IP65
Temperature	Operating Temperature 0 °C ~ 45 °C, Storage Temperature-30 °C ~ 80 °C
Humidity	20% ~ 85%RH No condensation
