Name: HIKROBOT DLS-U Series
Brand: HIKROBOT
SKU: MV-DLS250U-05
Availability: InStock

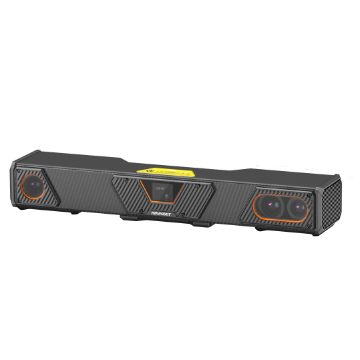

MV-DLS1300U-15

The DLS-U series Camera adopts high-uniformity single-line laser scanning technology, a customized high-Performance Optical system, a high-resolution Sensor, and a depth map can reach 500WResolution. Combined with 1200W RGB image and subpixel processing and other technologies, it can effectively cope with large field of view and high-precision scenes, greatly Improve the 3D imaging effect and obtain more delicate RGBD images.

Product introduction

Functional characteristics

Customized Optical system, excellent imaging quality
High uniformity laser, complete and delicate point clouds
Multin-core parallel processing architecture, high processing efficiency
RGB, depth map synchronized alignment, secondary development Convenient and fast
High-strength carbon fiber design, high stability
Large field of view design, suitable for long-distance applications

Ordering Model

MV-DLS1300U-15

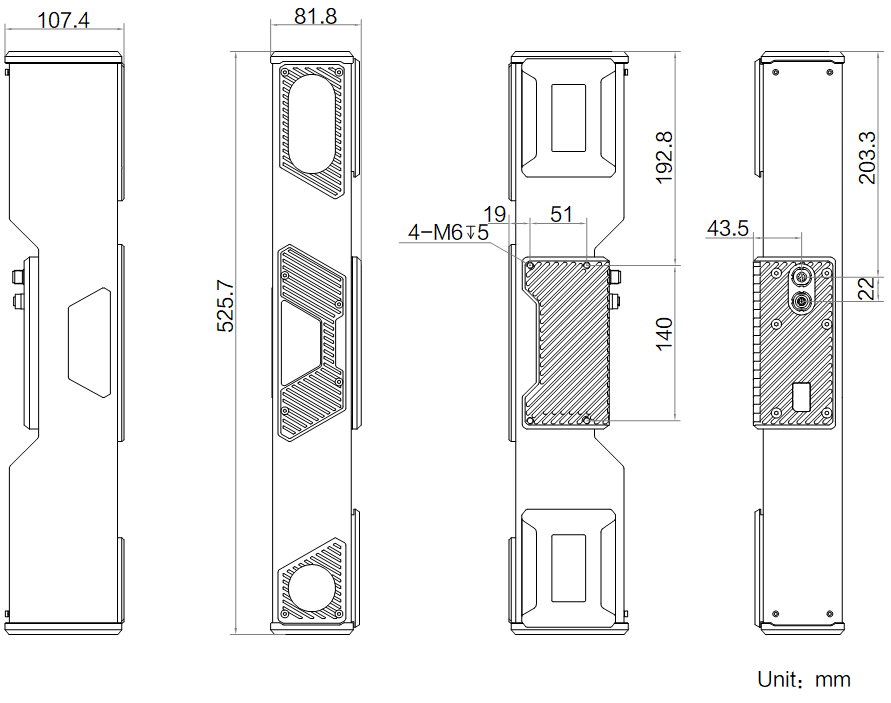

Dimensions

* Product data may cause Differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-DLS1300U-15

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DLS1300U-15

Model

Model	MV-DLS1300U-15
Name	Laser Galvanometer Stereoscopic Camera

Performance

Near Field of View	1300 mm × 1100 mm@1500 mm
Far Field of View	2800 mm × 2600 mm@3500 mm
Typical Field of View	2200 mm × 2000 mm@2500 mm
Clear Distance (CD)	1500 mm
Measurement Range (MR)	2000 mm
Resolution	4000 × 3000@RGB Map 2448 × 2048@Depth map
Z-Axis Repeatability	0.2 mm@2500 mm1
VDI/VDE accuracy	0.3 mm@2500 mm2
Acquisition time	0.4 ~ 0.9 s
Data Type	Original map (black and white + color), depth map,RGB-D map
Print delay time	1.0 ~ 1.7 s

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Typical Power Consumption	15 W@24 VDC

Mechanical

Dimensions	525.7mm × 81.8 mm × 107.4 mm
Weight	Approximately 2.35 kg
IP Rating	IP65
Temperature	Operating Temperature 0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
