Name: HIKROBOT DLS-T Series
Brand: HIKROBOT
SKU: MV-DLS300P-04T
Availability: InStock

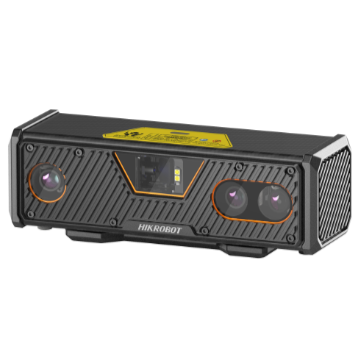

MV-DLS300P-04T

DLS-T SeriesCamera uses highly uniform single-line laser scanning technology and a customized Optical system for binocular stereoscopic imaging. It has excellent resistance to ambient light and can handle various high-reflection workpieces and present delicate point clouds.

Product introduction

Functional characteristics

Customized Optical system, super ambient light resistance
High uniformity laser, excellent imaging quality
Multin-core parallel processing architecture, high processing efficiency
RGB, depth map synchronous alignment, Secondary development is convenient and fast
Lightweight design, small size, high stability, flexible installation and use

Ordering Model

MV-DLS300P-04T

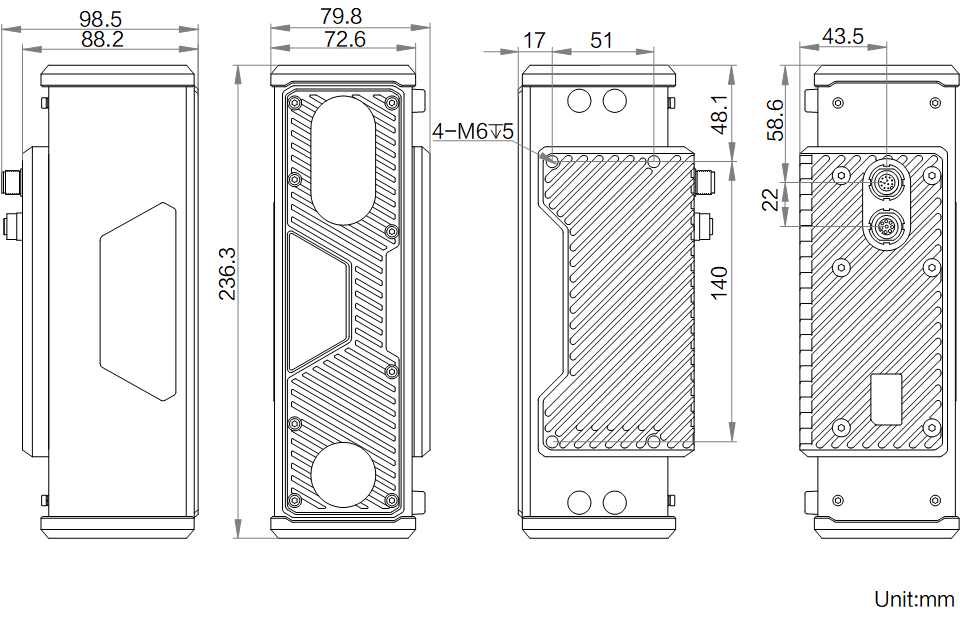

Dimensions

* The data involved in the product may cause differences and due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-DLS300P-04T

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DLS300P-04T

Model

Model	MV-DLS300P-04T
Name	Laser Galvanometer Stereoscopic Camera

Performance

Near Field of View	220 mm × 240 mm@400 mm
Typical Field of View	360 mm × 360 mm@600 mm
Far Field of View	460 mm × 480 mm@800 mm
Clear Distance (CD)	400 mm
Measurement Range (MR)	400 mm
Z-Axis Repeatability	0.08 mm@600 mm
VDI/VDE Accuracy	0.1 mm@600 mm
Resolution	3200 × 1944@RGB Map 1264 × 1152@Depth map
Acquisition time	1.4 s ~ 2.6 s
Plot delay time	1.7 s ~ 3 s
Data Type	Original map (black and white + color), depth map,RGB-D map

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Power Consumption	14.4 W@24 V DC

Mechanical

Dimensions	236.3 mm × 79.8 mm × 98.5 mm
Weight	Approximately 1.3 kg
IP Rating	IP65
Temperature	Operating Temperature 0 °C ~ 45 °C, Storage Temperature-30 °C ~ 80 °C
Humidity	20% ~ 85% RH No condensation
