Name: HIKROBOT DPS Series
Brand: HIKROBOT
SKU: MV-DPS200P-02
Availability: InStock

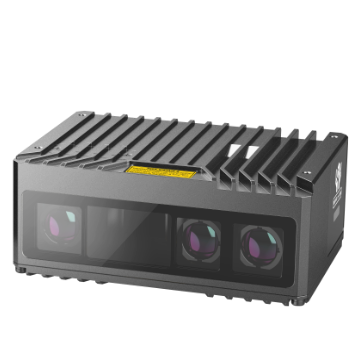

MV-DPS200P-02

DPS SeriesCamera uses projection Mechanical light technology for fast imaging and small size. With its excellent imaging Performance and precise positioning capabilities, it can cooperate with the robotic arm to complete processes such as guided grasping, alignment assembly, etc., and is especially suitable for scenes that require strict Camera volume Weight, such as composite robots, collaborative arms, and education machines.

Product introduction

Functional characteristics

Customized Optical system, excellent imaging quality
High PerformanceMechanical light projection, complete and delicate point clouds
Multin-core parallel processing architecture, high processing efficiency
RGB, depth map synchronization, convenient and fast development
Lightweight design, small size, high stability, flexible installation and use

Ordering § Model 10§* The data involved in the product may cause

MV-DPS200P-02

Dimensions

* Data related to the product may be generated due to environmental factors and other factors differences due to environmental factors and other factors. The company will not bear the consequences.

Ordering Model

MV-DPS200P-02

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Dimensions drawings can be downloaded from the product manual to view, or contact sales for CAD / PDF drawings.

Detailed parameters

Ordering Model MV-DPS200P-02

Model

Model	MV-DPS200P-02
Name	Projection Mechanical Light Stereoscopic Camera

Performance

Near Field of View	180 mm × 160 mm@250 mm
Far Field of View	420 mm × 320 mm@500 mm
Clear Distance (CD)	250 mm
Measurement Range (MR)	250 mm
Z-Axis Repeatability	0.02 mm@300 mm1
VDI/VDE Accuracy	0.03 mm@300 mm2
Resolution	3200 × 1944@RGB Map 1632 × 1264@Depth map
Data Type	Original map (black and white + color), depth map,RGB-D map
Acquisition time	0.2 ~ 0.7 s
Plot delay time	0.6 ~ 1.2 s

Optical

Light Source

Blue LED (450 nm, RG2)

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 V DC
Typical Power Consumption	10 W@24 V DC

Mechanical

Dimensions	126 mm × 90 mm × 50 mm
Weight	0.74 kg
IP Rating	IP67
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
