Name: HIKROBOT DPS Series
Brand: HIKROBOT
SKU: MV-DPS200P-02
Availability: InStock

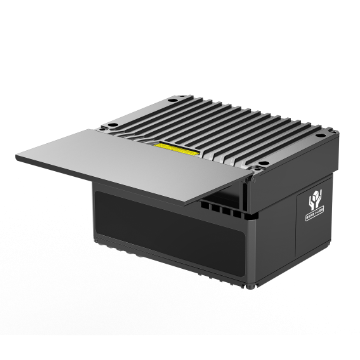

MV-DPS250P-03W

DPS SeriesCamera uses projection Mechanical light technology for fast imaging and small size. With its excellent imaging Performance and precise positioning capabilities, it can cooperate with the robotic arm to complete processes such as guided grasping, alignment assembly, etc., and is especially suitable for scenes that require strict Camera volume Weight, such as composite robots, collaborative arms, and education machines.

Product introduction

Functional characteristics

Customized Optical system, excellent imaging quality
High PerformanceMechanical light projection, complete and delicate point cloud
Multin-core parallel processing architecture, high processing efficiency
RGB, depth map synchronization, convenient and fast development
Electric flip cover protection, small size, lightweight, high synchronization control, flexible installation

Ordering Model

MV-DPS250P-03W

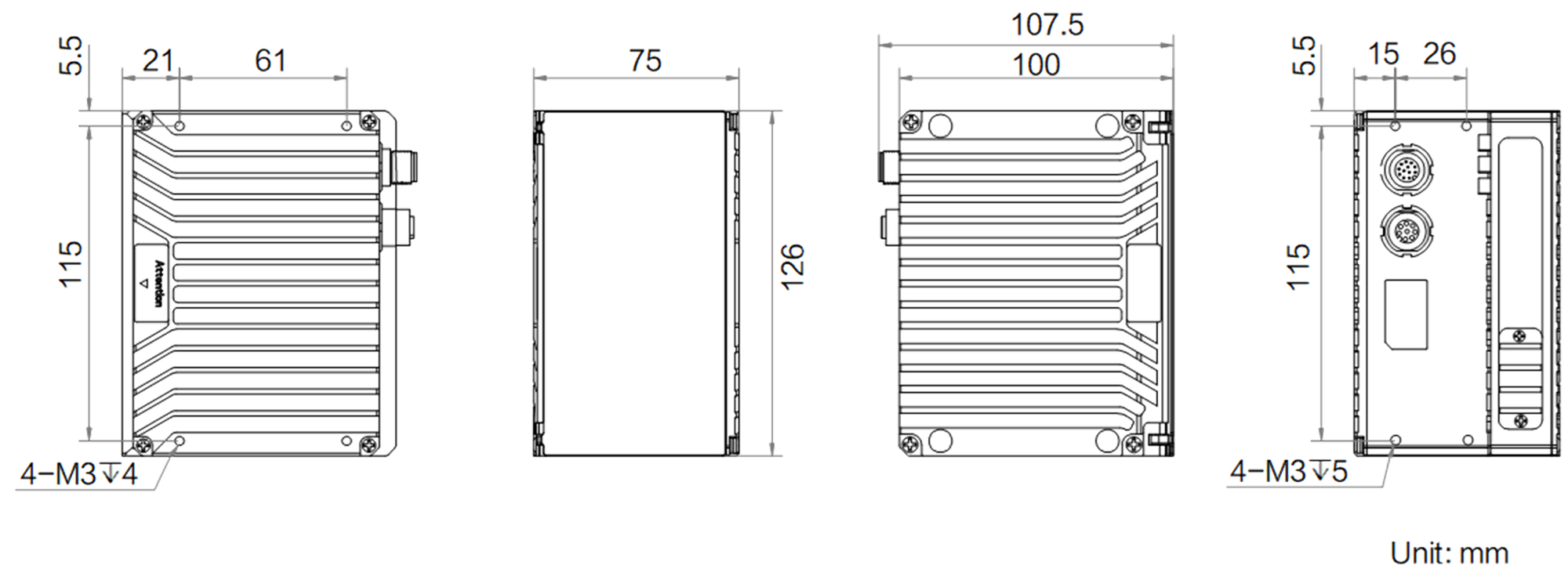

Dimensions

* Product data may cause differences due to environmental factors and other factors. The company will not bear the consequences.

Ordering Model

MV-DPS250P-03W

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DPS250P-03W

Model

Model	MV-DPS250P-03W
Name	Projection Mechanical Light Stereoscopic Camera

Performance

Near Field of View	260 mm × 200 mm@300 mm
Far Field of View	720 mm × 590 mm@900 mm
Clear Distance (CD)	300 mm
Measurement Range (MR)	600 mm
Z-Axis Repeatability	0.06 mm@600 mm1
VDI/VDE Accuracy	0.10 mm@600 mm2
Resolution	3200 × 1944@RGB Map 1632 × 1264@Depth map
Data Type	Original map (black and white + color), depth map,RGB-D map
Acquisition time	0.2 ~ 0.7 s
Plot delay time	0.6 ~ 1.2 s

Optical

Light Source

Blue LED (450 nm, RG2)

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 V DC
Typical Power Consumption	12.9 W@24 V DC

Mechanical

Dimensions	126 mm × 100 mm × 75 mm
Weight	1.18 kg
IP Rating	IP65
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
