Name: HIKROBOT Express & Logistics Series
Brand: HIKROBOT
SKU: MV-DB300S-V
Availability: InStock

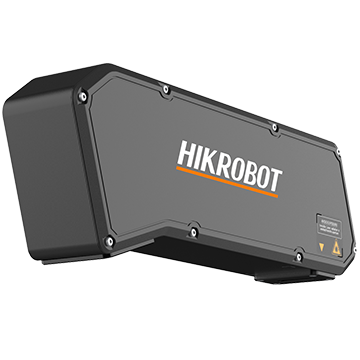

MV-DL2125-04H-R

Adopt binocular stereo matching and linear laser technology to cover dynamic and static applications. The product is designed for the express Logistics industry and is especially suitable for application scenarios such as single piece separation, de-duplication and double removal, and volume measurement.

Product introduction

Functional characteristics

Wide dynamic algorithm, more accurate measurement of high-reflection/high-absorption materials
Efficiency optimization, can support up to 3m/s
Subpixel technology, accuracy up to 5mm
High-power Optical Module, wider Dynamic Range
Narrowband filter, stronger anti-interference ability
Precise exposure synchronization, more stable Performance
Supported volume (Length, width and height, integrated volume), point cloud, top coordinate output

Ordering Model

MV-DL2125-04H-R

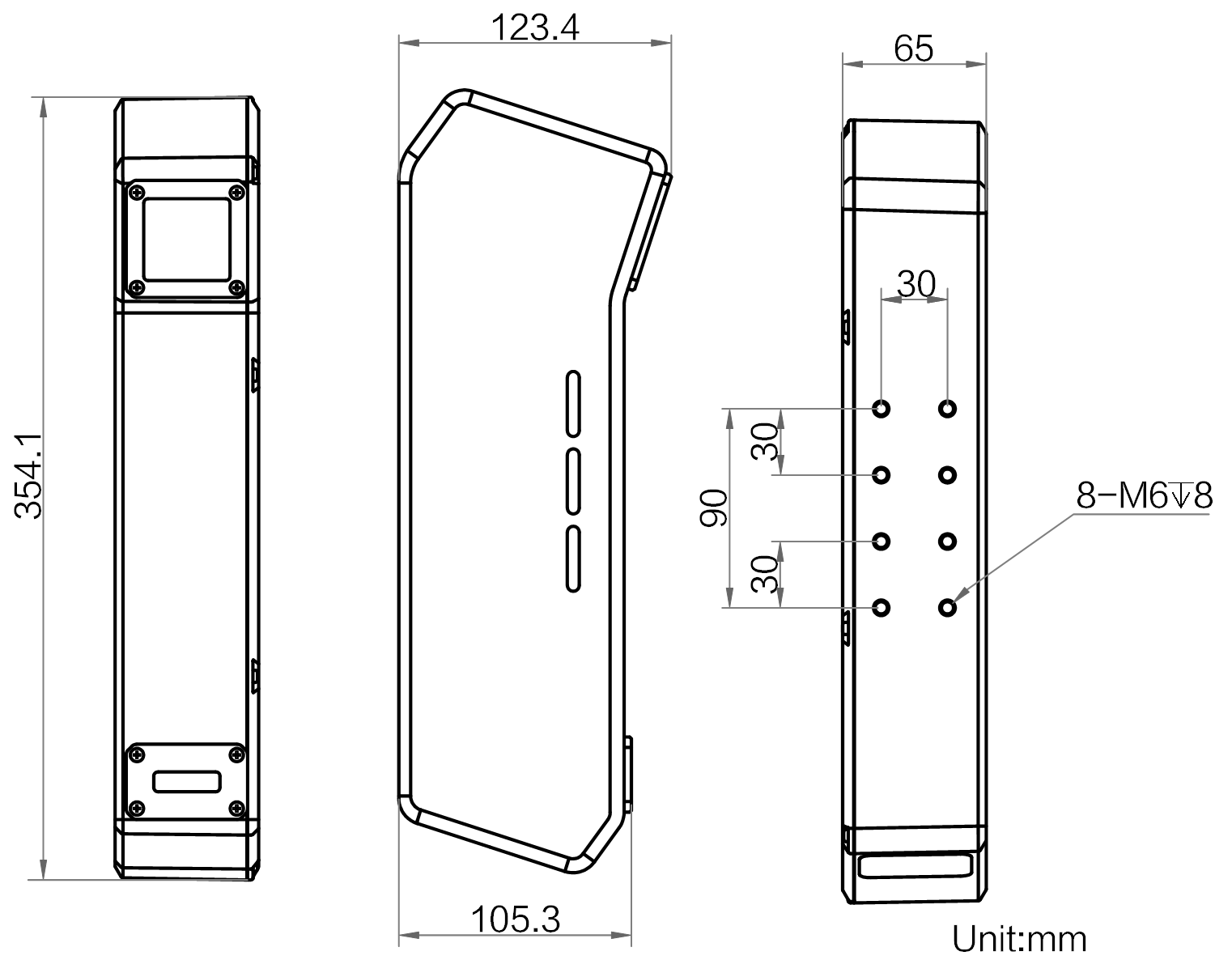

Dimensions

* Data involved in the product may cause Differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DL2125-04H-R

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DL2125-04H-R

Model

Model	MV-DL2125-04H-R
Name	Line Laser Stereoscopic Camera

Performance

Near Field of View	1000 mm
Far Field of View	2600 mm
Clear Distance (CD)	700 mm
Measurement Range (MR)	1000 mm
Inspection accuracy	± 5 mm(regular parts)
Inspection speed	3 m/s@± 5 mm Inspection accuracy
Scan Frame Rate	600 fps@1 m Measurement range
Data Type	Point cloud, length, width and height size, integrated volume, top surface coordinates, depth map
Trigger Mode	External trigger, encoder trigger (Up to 15 KHz trigger signal access is supported)
Laser Safety Class	Class 3B

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12Interface provides I/O, including 3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7), 1-way RS-232 Serial Port
Power Supply	12 ~ 24 VDC
Typical Power Consumption	10.0 W@12 VDC

Mechanical

Dimensions	354.1 mm × 65 mm × 123.4 mm
Weight	1.6 kg
Temperature	Operating Temperature 0 ~45°C, Storage Temperature-30~80°C
Humidity	20%~85%RH Condensation Free
