Name: HIKROBOT Warehousing & Logistics Series
Brand: HIKROBOT
SKU: MV-DLS1300P
Availability: InStock

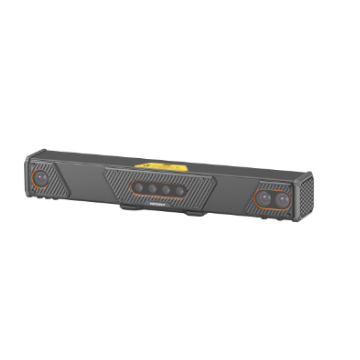

MV-TL200

Based on 3D vision +AI algorithm + robot control full-link technology, HIKROBOT has launched three 3D vision-guided robot unstacking solutions to achieve flexible, efficient and precise automated material unstacking operations.

Product introduction

Functional characteristics

Built-in high-precision deep fusion algorithm, with an accuracy up to millimeter level
Ultra-large field of view Depth of Field coverage, meeting application scenarios such as palletizing, stack type identification and detection, and large volume measurement
Supports multiple exposure modes, and the material is more adaptable
Equipped with narrowband filters, without fear of interference from ambient light
IP65 protection level, industrial-grade dust and waterproof

Ordering Model

MV-TL200

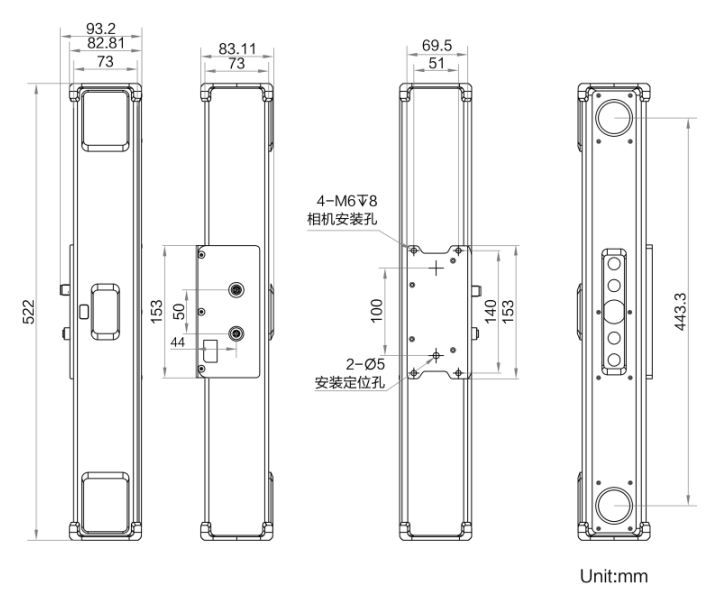

Dimensions

* The data involved in the product may be caused by environmental factors Differences The company will not bear the consequences arising therefrom.

Ordering Model

MV-TL200

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-TL200

Model

Model	MV-TL200
Name	RGB-DBinocular Structured Light Stereo Cameras

Performance

Near Field of View	1350 mm × 1200 mm
Far Field of View	3650 mm × 2750 mm
Clear Distance (CD)	1200 mm
Measurement Range (MR)	1800 mm
Depth map detection accuracy	X, Y: 5 mm@1.2 m; 9 mm@2 m; 14 mm@3m<br/>Z: 1 mm@1.2 m; 2 mm@2 m; 3 mm@3m
Color map detection accuracy	X, Y: 3 mm@1.2 m; 4.6 mm@ 2m; 6.8 mm@ 3m
Resolution	3072 × 2048@RGB map<br/> 1536 × 1024@Depth map
Scan Frame Rate	1.5 fps
Data Type	Original map (black and white + color), depth map, RGB-D map
Laser Safety Class	Class 3R

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O, 3 optocoupler isolation inputs (Line 0/3/6), 3 optocoupler isolation outputs (Line 1/4/7)
Power Supply	12~24 VDC
Typical Power Consumption	7 W@24 VDC

Mechanical

Dimensions	522 mm × 82.8 mm × 83.1 mm
Weight	Approximately 2.5 kg
IP Rating	IP65
Temperature	Operating Temperature0°C ~ 45°C, Storage Temperature-30°C ~ 80°C
Humidity	20%~85%RH No condensation
