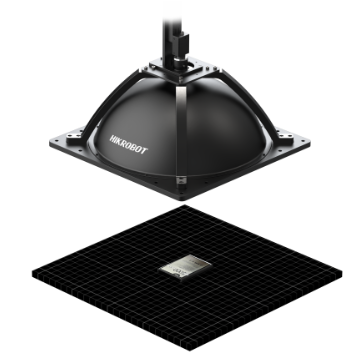

Name: HIKROBOT Dome 2.5D Vision Inspection System
Brand: HIKROBOT
SKU: MV-PSL-4K200-C4D30-WDM
Availability: InStock

Product introduction

Functional characteristics

2.5D Vision Inspection Systems based on the principle of optical three-dimensional extracts uneven features on the sample surface
Effectively avoids the influence of homogeneous color interference, matte materials, and complex backgrounds, and is suitable for surface defect detection of matte and rough materials
Dome Lights supports area array and line array scanning modes to handle static/dynamic scanning scenarios
2.5D system can be used in conjunction with Vision Master Software. Simultaneous realization of 2.5D imaging and defect identification

Ordering Model

MV-PSA-12UM-C4D30-WDM

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-PSA-12UM-C4D30-WDM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Dimensions drawings can be downloaded from the product manual to view, or contact sales for CAD / PDF drawings.

Detailed parameters

Ordering Model MV-PSA-12UM-C4D30-WDM

Model

Model	MV-PSA-12UM-C4D30-WDM
Name	Area array Dome Light Vision Inspection System, Resolution 12 million, 300mm specification Dome Lights, white light

Camera

Pixel Size	3.45 μm × 3.45 μm
Resolution	4096 × 3000
Max. Frame Rate	30.7 fps @4096 × 3000 Mono 8
Mono/Color	Black and White
Pixel Format	Mono 8/10/10Packed/12/12Packed
Transmission Interface	USB 3.0, compatible with USB2.0
