Name: HIKROBOT IDH5000P Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH5000P/13NR/04RN/U
Availability: InStock

Product introduction

Functional characteristics

Using a self-developed high-performance barcode recognition algorithm, it can efficiently read DPM difficult codes in industrial scenes
The algorithm is highly robust and can effectively deal with low contrast, Yin and Yang codes, barcode dirt, defects, etc.
Integrated direct and diffuse lighting methods, combined with intelligent polling switching of white light, red light, blue light and three-color light, effectively responding to scenarios such as highly reflective and irregular surfaces
Supports batch code reading, accurate code reading, inductive code reading and other modes, Greatly improves the reading efficiency of multi-code scenarios
Supports multiple output modes of USB-HID, USB-CDC, RS-232, network protocol, and industrial protocol
Appearance adopts wire separation design for easy replacement and use
Supports IP65 protection level and 2.0-meter Drop Height, rugged
Supports buzzer and Indicator, vibration multiple status indicators
Rich data format editing functions, can be used through IDMVS, Convenient debugging of IDAS (Android) or setting codes

Ordering Model

MV-IDH5000P/13NR/04RN/L

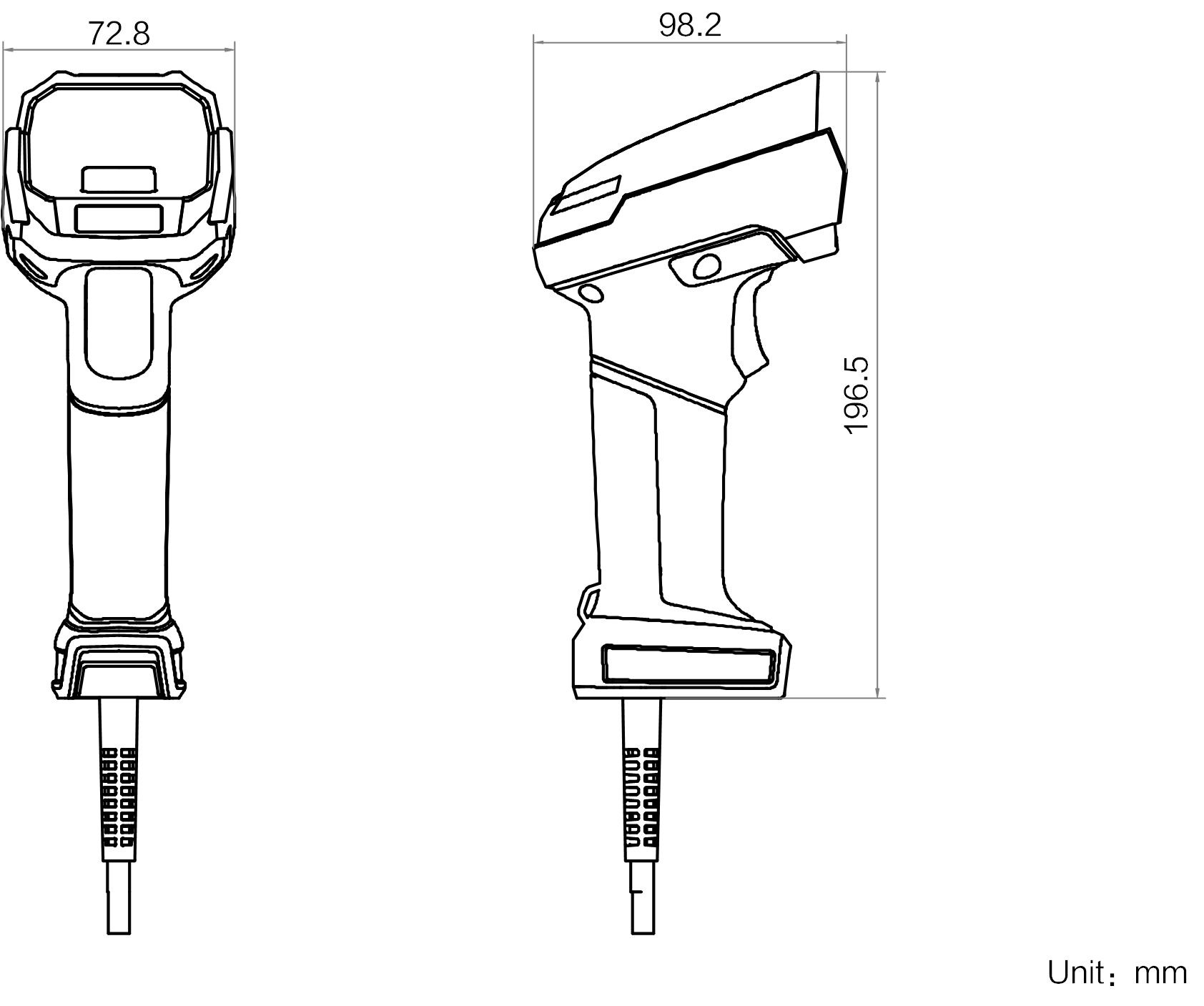

Dimensions

* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences.

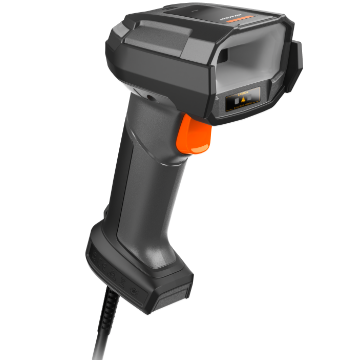

MV-IDH5000P/13NR/04RN/L

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-IDH5000P/13NR/04RN/L

Model

Model	MV-IDH5000P/13NR/04RN/L
Name	Universal Cable Industry Handheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128(including GS1-128),Coda Bar,EAN8,EAN13,ISBN,ISSN,ITF14,ITF25,UPCA,UPCE Matrix QR codes:QR Code(including GS1-QR),Data Matrix(including GS1-DM),Micro QR,Aztec,Han Xin Stacking QR codes:PDF417,Micro PDF417
Min. Barcode Resolution	One-dimensional code:3 mil QR code:5 mil
Sensor Type	CMOS
Resolution	1280 × 1024
Depth of Field	Code 39(3 mil):10 mm ~ 125 mm Code 39(10 mil):0 ~ 325 mm Code 128(5 mil):0 ~ 155 mm Data Matrix(5 mil):30 mm ~ 100 mm QR Code(10 mil):0 ~ 195 mm PDF417(7 mil):0 ~ 190 mm
Field of View Angle	41° (H) × 33° (V)
Inspection Angle	Tilt angle ±65°, tilt angle ±65°, rotation angle 360°
Symbol Contrast	20 %
Communication Protocol	SmartSDK, TCP Server, Serial, FTP, TCP Client, UDP

Electrical

Interface	Fast Ethernet(100 Mbit/s),DC terminal, RS-232
Power Supply	12 ~ 24 VDC
Current Consumption	DC terminal:0.63 A(maximum current);0.28 A(typical current) USB:0.9 A(maximum current);0.56 A(typical current)

Mechanical

Ambient Light	0 ~ 100000 lux
Light Source	Direct Light Source: White LED Diffuse Light Source: Red LED, Blue LED
Aimer	Cross Laser Aimer
Notification Method	LEDIndicator, buzzer, vibrator
Dimensions	72.8 mm × 98.2 mm × 196.5 mm
Weight	Approximately 260 g
IP Rating	IP65
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C
Humidity	5% ~ 95%RH non-condensing
Drop Height	Drop:2.0 m drops 50 times Drop:1.8 m drops 70 times Rolling:0.5 m rolling 2000 times
