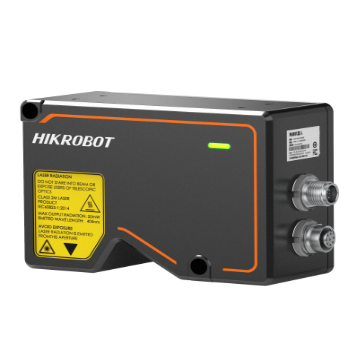

Name: HIKROBOT DP2000 Series
Brand: HIKROBOT
SKU: MIS-DP2850-10P
Availability: InStock

MIS-DP2600-10P

HIKROBOT DP2000 Series3D Laser Profile Sensors is a high-precision industrial-grade profile inspection product based on triangulation. It is suitable for size measurement, surface defect detection and other scenarios requiring sub-micron accuracy. It supports multiple exposure modes and sensitivity adjustment. It has ROI selection and one-click debugging functions. It is widely used in Lithium Battery, semiconductor, automotive parts and other industries

Product introduction

Functional characteristics

Built-in high-precision algorithm, with accuracy up to submicron level
High frame rate chip, scanning rate up to 23.9kHz
Supports multiple exposure modes, making it more robust
Multi-frame algorithm fusion technology, more complete outline
Multiple filtering modes are optional, data is more stable
Support ROI selection, one-click debugging, more convenient operation

Ordering Model

MIS-DP2600-10P

Dimensions

* Product data involved in the product may be caused by environmental and other factors Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MIS-DP2600-10P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

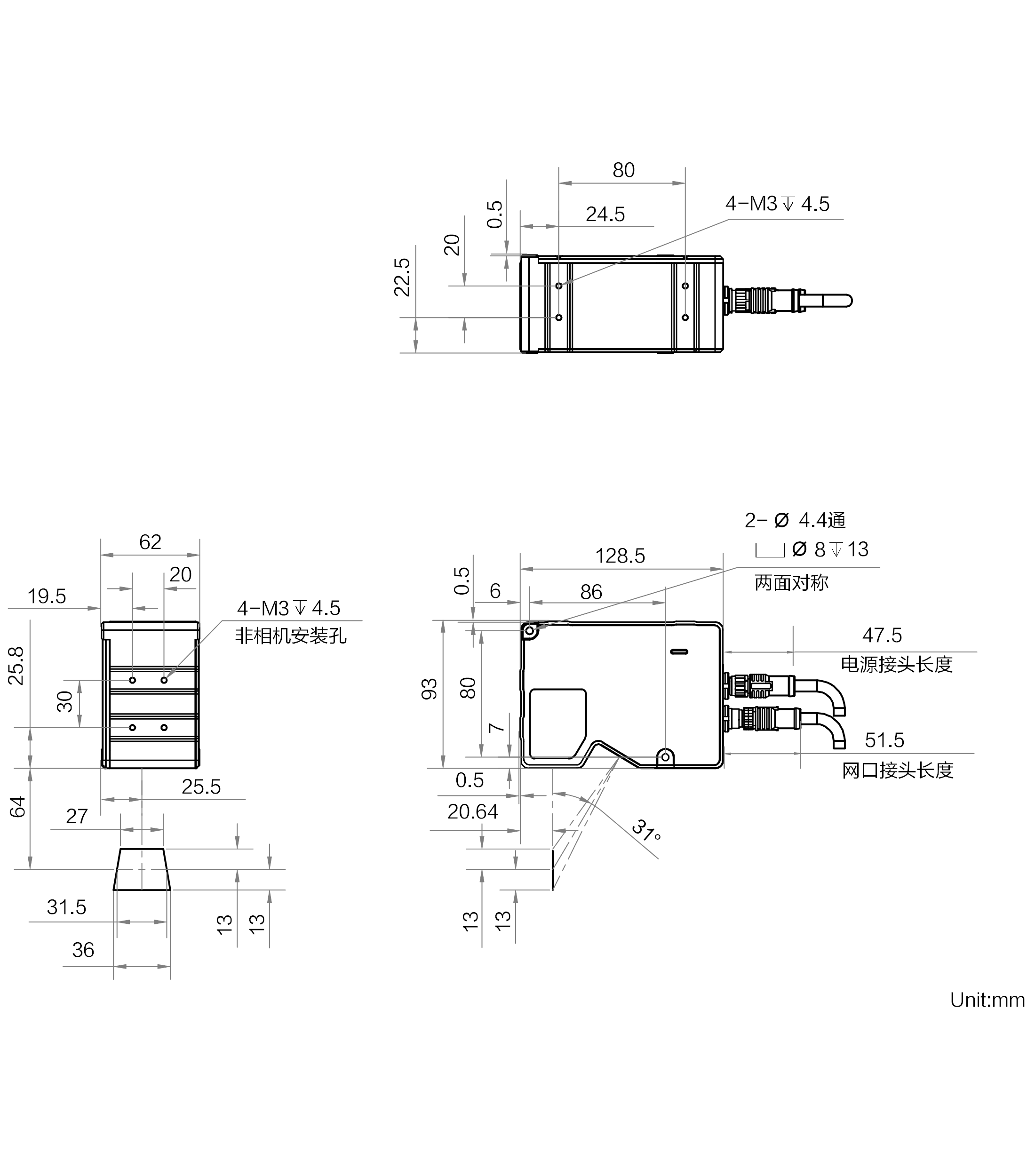

Dimensions

Detailed parameters

Ordering Model MIS-DP2600-10P

Model

Model	MIS-DP2600-10P
Name	3D Laser Profile Sensor

Performance

Points per Profile	3200
Reference Distance	64 mm
Z-Axis Measurement Range	26 mm
X-Axis Measurement Range	27 mm@ Proximal<br/> 31.5 mm@Reference Distance<br/> 36 mm@ distal end
Z-Axis Resolution	1.45 ~ 2.83 μm
Z-Axis Repeatability	0.49 μm@Sensor tests the data of the Standard gauge block on the Optical Platform 1
Z-Axis Linearity (±% of MR)	0.01
Profile Data Interval	8.5 ~ 11.8 μm
Scan Frame Rate	1.7kHz ~ 23.9kHz (high frame rate mode)
Data Output Type	Original map, contour data, depth map, brightness map
Trigger Mode	Soft trigger, hard trigger (differential encoder trigger)
Laser Wavelength	405 nm
Laser Safety Class	Class3R

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12 Interface provides Power Supply and I/O, 2 optocoupler isolated inputs (line 0/9), 2 differential signal inputs (line 3/6), 1 differential signal output (line 1)
Power Supply	24 VDC
Typical Power Consumption	15.2 W@24 VDC

Mechanical

Dimensions	128.5 mm × 93 mm × 62 mm
Weight	Approximately 850 g
IP Rating	IP67
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20%~85%RH No condensation
