Name: HIKROBOT DP3000 Series
Brand: HIKROBOT
SKU: MV-DP3060-01PS
Availability: InStock

MV-DP3060-01PS

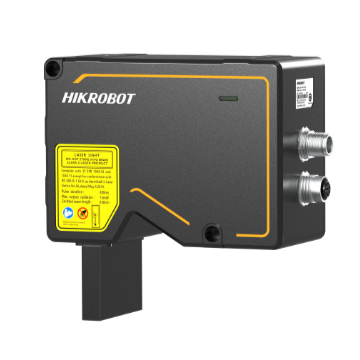

HIKROBOT DP3000 Series3D Laser Profile Sensors, with sub-micron Z-Axis Resolution, a scanning rate of up to 46.7K Hz, supports single frame HDR and multi-exposure wide dynamic modes, supports complex material adaptive adjustment, and is widely used in Lithium Battery, semiconductors, automotive parts and other inspection and measurement scenarios.

Product introduction

Functional characteristics

Built-in high-precision measurement algorithm, with accuracy up to submicron level
High frame rate chip, scanning rate up to 46.7 kHz
Support ROI selection, one-click debugging, easy operation
Parallel light output, laser line is more uniform
Laser shaping is optimized, details are more detailed
Laser Power density is enhanced, Dynamic Range is better

Ordering Model

MV-DP3060-01PS

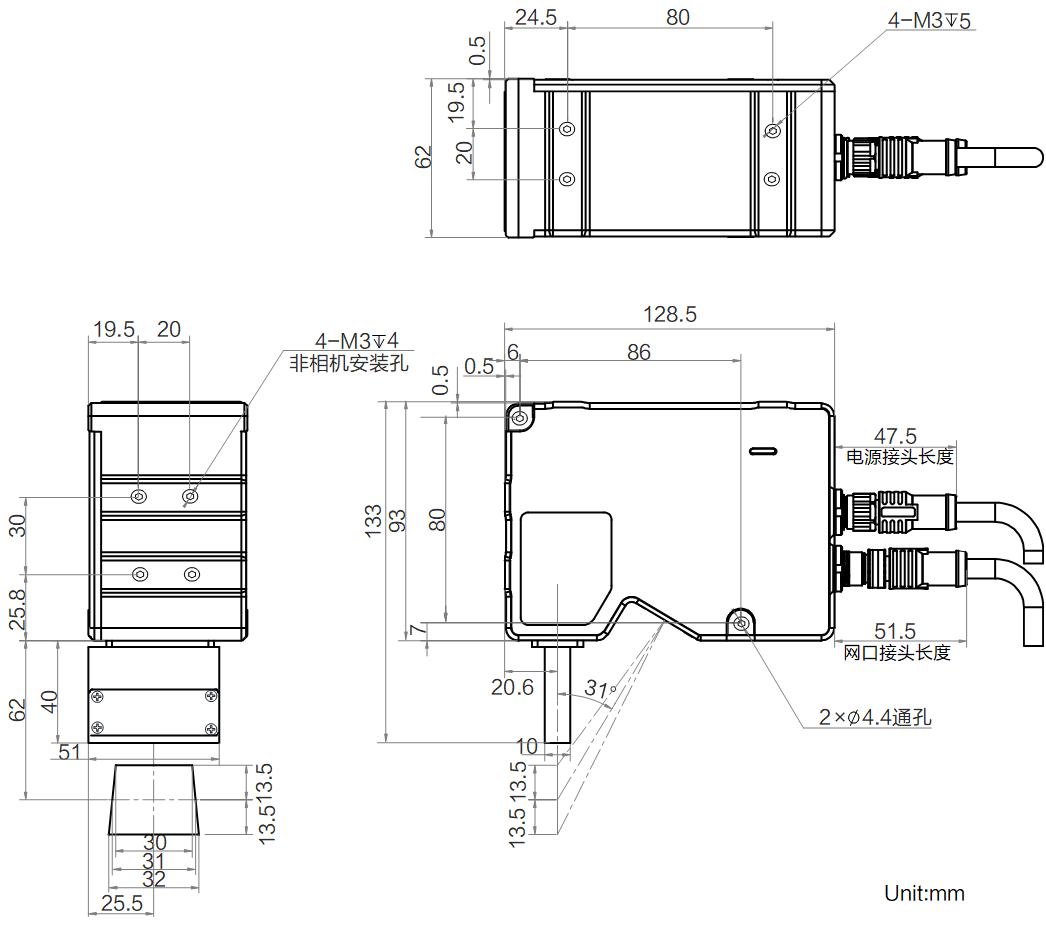

Dimensions

* Product data involved may be caused by environmental factors. Differences The company will not bear the consequences arising therefrom.

Ordering Model

MV-DP3060-01PS

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DP3060-01PS

Model

Model	MV-DP3060-01PS
Name	3D Line Laser Profile Sensor

Performance

Points per Profile	3200
Reference Distance	62 mm
Z-Axis Measurement Range	27 mm
X-Axis Measurement Range	30 mm@ proximal end; 31 mm@Reference Distance; 32 mm@ distal end
Profile Data Interval	9.3 ~ 13.2 μm
Scan Frame Rate	3.4 kHz ~ 46.7 kHz(high frame rate mode)
Data Output Type	Original map, contour data, depth map, brightness map
Trigger Mode	Soft trigger, hard trigger (differential encoder trigger)
Laser Wavelength	405 nm
Laser Safety Class	Class 3R
Z-Axis Resolution	1.74 ~ 3.07 μm
Z-Axis Repeatability	0.56 μm@Sensor testing data from Standard gauge blocks on Optical Platform 1
Z-Axis Linearity (±% of MR)	0.01

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12 Interface provides Power Supply and I/O, 2 optocoupler isolated inputs (Line 0/9), 2 differential signal inputs (Line 3/6), 1 differential signal output (Line 1)
Power Supply	24 VDC
Typical Power Consumption	17.2 W@24 VDC

Mechanical

Dimensions	128.5 mm × 133 mm × 62 mm
Weight	approximately 900 g
IP Rating	IP67
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20%~85%RH No condensation
