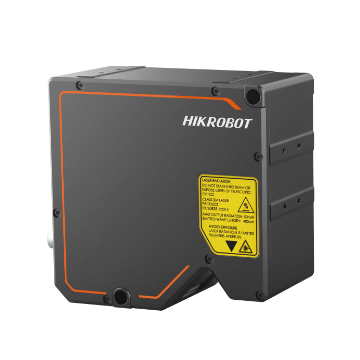

Name: HIKROBOT DP4000 Series
Brand: HIKROBOT
SKU: MV-DP4020-01P
Availability: InStock

MV-DP4020-01P

HIKROBOT DP4000 Series3D Laser Profile Sensors have ultra-high precision and ultra-high frame rate, Points per Profile4080 points, Scan Frame Rate up to 49K Hz, support single frame HDR, adaptive light control, and are suitable for precision manufacturing scenarios such as Lithium Battery, 3C, and semiconductors.

Product introduction

Functional characteristics

High frame rate, high Resolution, large pixel image chip
FPGA hardware acceleration, scanning rate up to 49 KHz
Customized large aperture Lenses and ultra-uniform laser Optical solution
Ultra-high subpixel algorithm, accuracy up to sub-micron level
Supports multiple exposure modes, is more robust
Multi-frame algorithm fusion technology, more complete outline
Multiple filtering modes are optional, and the data is more stable
Integrated design, installation, Convenient debugging

Ordering Model

MV-DP4020-01P

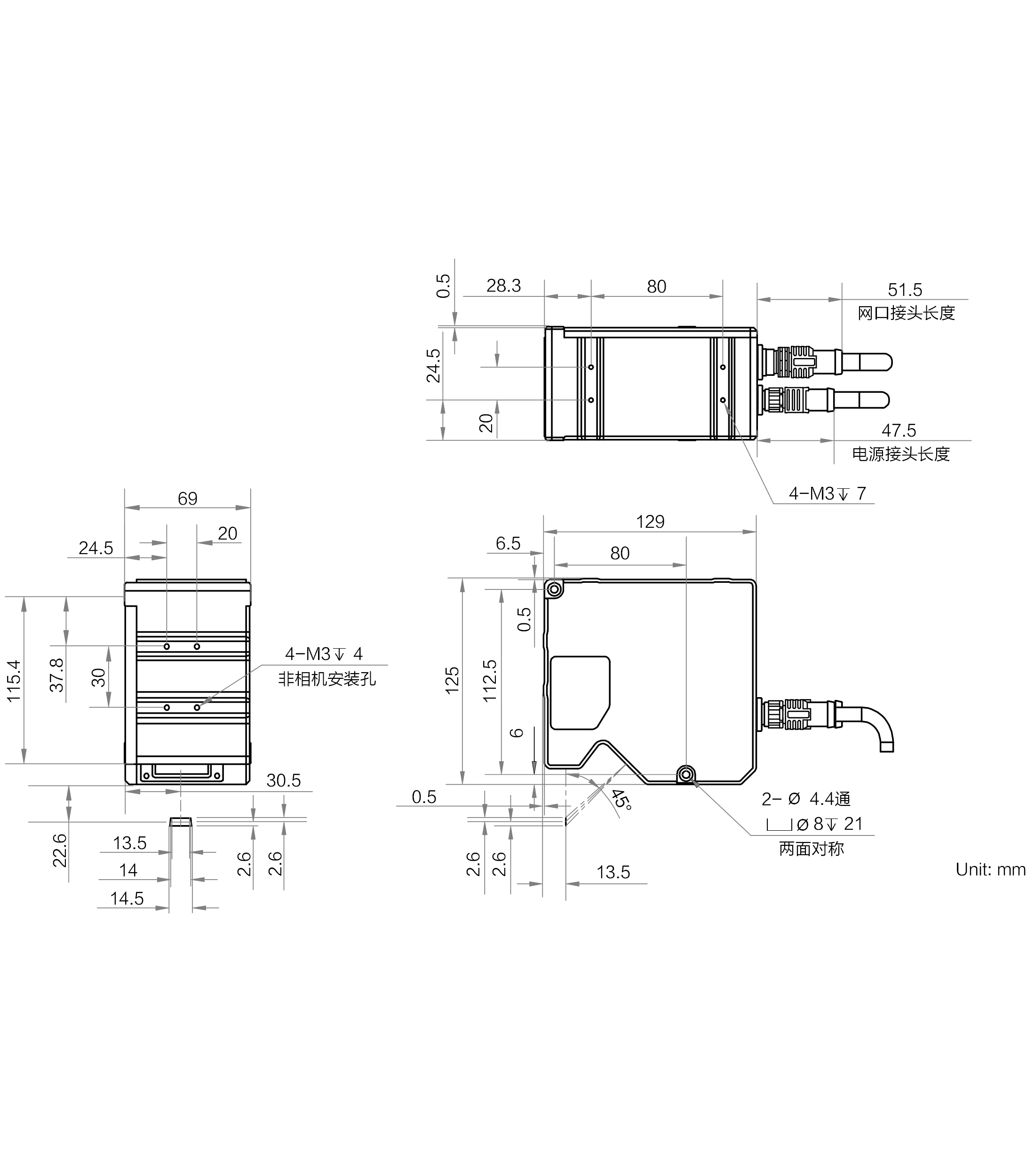

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-DP4020-01P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DP4020-01P

Model

Model	MV-DP4020-01P
Name	3D Laser Profile Sensors, DP4000 Series

Performance

Points per Profile	4080
Reference Distance	22.6 mm
Z-Axis Measurement Range	5.2 mm
X-Axis Measurement Range	13.5 mm@ Proximal 14 mm@Reference Distance 14.5 mm@ Distal end
Z-Axis Resolution	0.41 ~ 0.58 μm
Z-Axis Repeatability	0.15 μm@Sensor testing data from Standard gauge blocks on the OpticalPlatform
Z-Axis Linearity (±% of MR)	0.01
Profile Data Interval	3.3 ~ 3.9 μm
Scan Frame Rate	2.5 KHz(maximum measurement range), up to 49KHz(ROI mode)
Data Output Type	Profile data, depth map, brightness map
Trigger Mode	Soft triggering, hard triggering (differential encoder triggering)
Laser Wavelength	405 nm
Laser Safety Class	Class 3B

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232
Power Supply	24 VDC
Typical Power Consumption	20.6 W@24 VDC

Mechanical

Dimensions	129 mm ×125 mm × 69 mm
Weight	approximately 1330 g
IP Rating	IP67
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20%~85%RH No condensation
