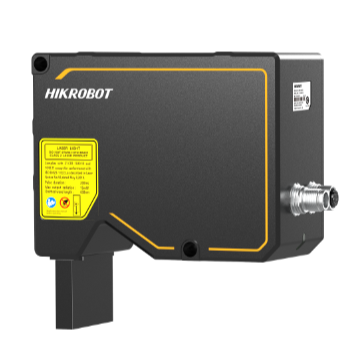

Name: HIKROBOT DP4000 Series
Brand: HIKROBOT
SKU: MV-DP4020-01P
Availability: InStock

MV-DP4060-01PS

HIKROBOT DP4000 Series3D Laser Profile Sensors have ultra-high precision and ultra-high frame rate, Points per Profile4080 points, Scan Frame Rate up to 49K Hz, support single frame HDR, adaptive light control, and are suitable for precision manufacturing scenarios such as Lithium Battery, 3C, and semiconductors.

Product introduction

Functional characteristics

High frame rate, high Resolution, large pixel image chip
FPGA hardware acceleration, scanning rate up to 49 kHz
Customized large aperture Lenses, excellent sensitivity Performance
Parallel light output, laser line is more uniform
Laser shaping is optimized, details are more detailed
Laser Power density is enhanced, Dynamic Range is better

Ordering § Model 11§* The data involved in the product may cause

MV-DP4060-01PS

Dimensions

* Data related to the product may be generated due to environmental factors and other factors Differences due to environmental factors. The company does not bear the consequences.

Ordering Model

MV-DP4060-01PS

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DP4060-01PS

Model

Model	MV-DP4060-01PS
Name	3D Laser Profile Sensors, DP4000 Series

Performance

Points per Profile	4080
Reference Distance	60 mm
Z-Axis Measurement Range	21 mm
X-Axis Measurement Range	28 mm@ proximal; 32 mm@Reference Distance; 36 mm@ Distal end
Z-Axis Resolution	1.06 ~ 1.98 μm
Z-Axis Repeatability	0.36 μm@Sensor tests data from Standard gauge blocks on the OpticalPlatform 1
Z-Axis Linearity (±% of MR)	0.01
Profile Data Interval	6.9 ~ 9.7 μm
Scan Frame Rate	2.5 kHz(maximum measurement range), up to 49 KHz(ROI mode)
Data Output Type	Profile data, depth map, brightness map
Trigger Mode	Soft trigger, hard trigger (differential encoder trigger)
Laser Wavelength	405 nm
Laser Safety Class	Class 2

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232
Power Supply	24 VDC
Typical Power Consumption	20.6 W@24 VDC

Mechanical

Dimensions	144 mm × 150 mm × 67 mm
Weight	approximately 1210 g
IP Rating	IP67
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20%~85%RH No condensation
