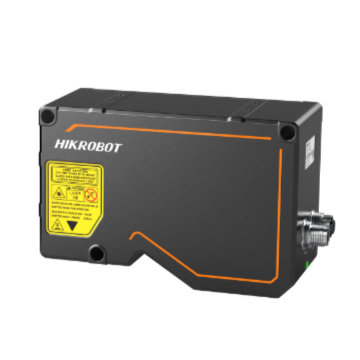

Name: HIKROBOT DP4000 Series
Brand: HIKROBOT
SKU: MV-DP4020-01P
Availability: InStock

MV-DP4920-05MAX

HIKROBOT DP4000 Series3D Laser Profile Sensors have ultra-high precision and ultra-high frame rate, Points per Profile4080 points, Scan Frame Rate up to 49K Hz, support single frame HDR, adaptive light control, and are suitable for precision manufacturing scenarios such as Lithium Battery, 3C, and semiconductors.

Product introduction

Functional characteristics

High frame rate, high Resolution, large pixel image chip
FPGA hardware acceleration, scanning rate up to 49 KHz
Customized large aperture Lenses and ultra-uniform laser Optical solution
Ultra-high subpixel algorithm, accuracy up to sub-micron level
Supports multiple exposure modes, is more robust
Multi-frame algorithm fusion technology, more complete outline
Multiple filtering modes are optional, and the data is more stable
Integrated design, installation, Convenient debugging

Ordering Model

MV-DP4920-05MAX

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-DP4920-05MAX

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

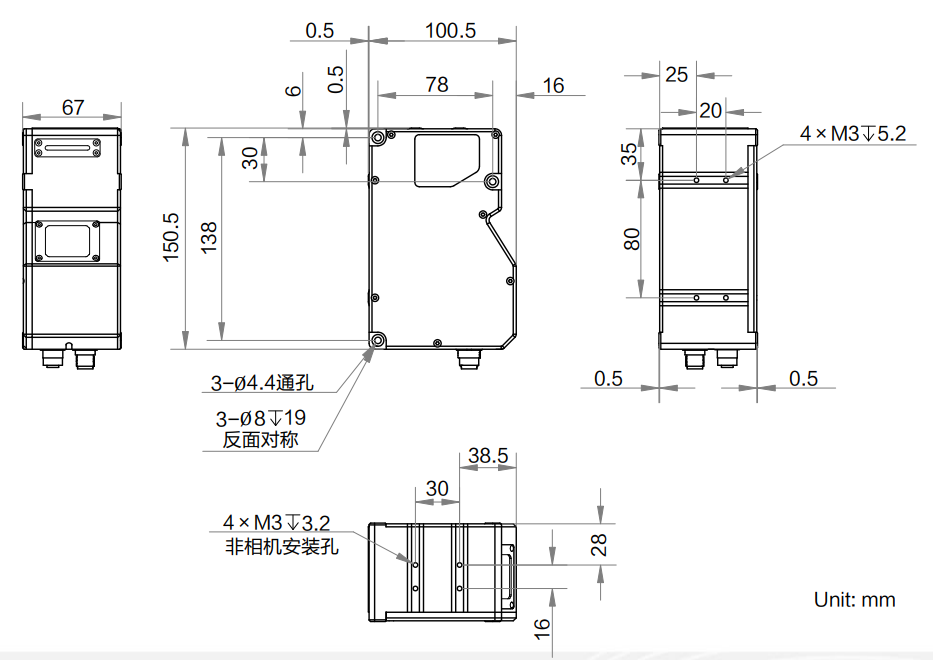

Dimensions

Detailed parameters

Ordering Model MV-DP4920-05MAX

Model

Model	MV-DP4920-05MAX
Name	3D Laser Profile Sensor

Performance

Points per Profile	4080
Reference Distance	94 mm
Z-Axis Measurement Range	42 mm
X-Axis Measurement Range	44 mm@ Proximal<br/> 51.5 mm@Reference Distance<br/> 59 mm@ Distal end
Z-Axis Resolution	1.87 ~ 3.98 μm
Z-Axis Repeatability	0.66 μm@Sensor tests data from Standard gauge blocks on the OpticalPlatform
Z-Axis Linearity (±% of MR)	0.01
Profile Data Interval	10.6 ~ 15.9 μm
Scan Frame Rate	2.5 KHz(maximum measurement range), up to 49KHz(ROI mode)
Data Output Type	Profile data, depth map, brightness map
Trigger Mode	Soft trigger, hard trigger (differential encoder trigger)
Laser Wavelength	405 nm
Laser Safety Class	Class 3R

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232
Power Supply	24 VDC
Typical Power Consumption	20.6 W@24 VDC

Mechanical

Dimensions	150.5 mm ×100.5 mm × 67 mm
Weight	approximately 1150 g
IP Rating	IP67
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20%~85%RH No condensation
