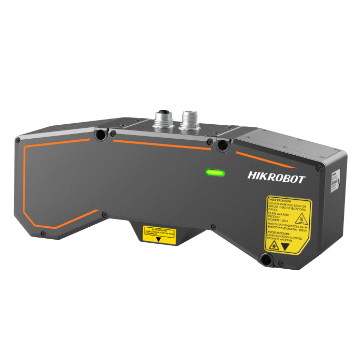

Name: HIKROBOT Binocular Single-Line Series
Brand: HIKROBOT
SKU: MV-DP3060-01D
Availability: InStock

MIS-DP3850-10D

The Binocular Single-Line Series Laser Profile Sensor adopts binocular fusion, which can effectively eliminate blind spots in the field of view and suppress stray light on the metal surface. The hardware has built-in high-precision 3D algorithms, wide dynamic image processing algorithms and data fusion algorithms, which can output high-precision 3D point cloud data in real time. The products are widely used in 3C, electronics manufacturing, automotive and other industries, such as automotive Connector testing.

Product introduction

Functional characteristics

Dual image Sensor design eliminates blind spots in the field of view and suppresses stray light
Built-in high-precision 3D algorithm, and the repetition accuracy can reach sub-micron level
Using a high frame rate image chip, the scanning rate can reach up to 46.7kHz
Supports multiple exposure modes, larger Dynamic Range
adopts image fusion algorithm technology, and point cloud data is more complete
Supports multiple filtering modes to choose from. Point cloud data is more stable

Ordering Model

MIS-DP3850-10D

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MIS-DP3850-10D

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

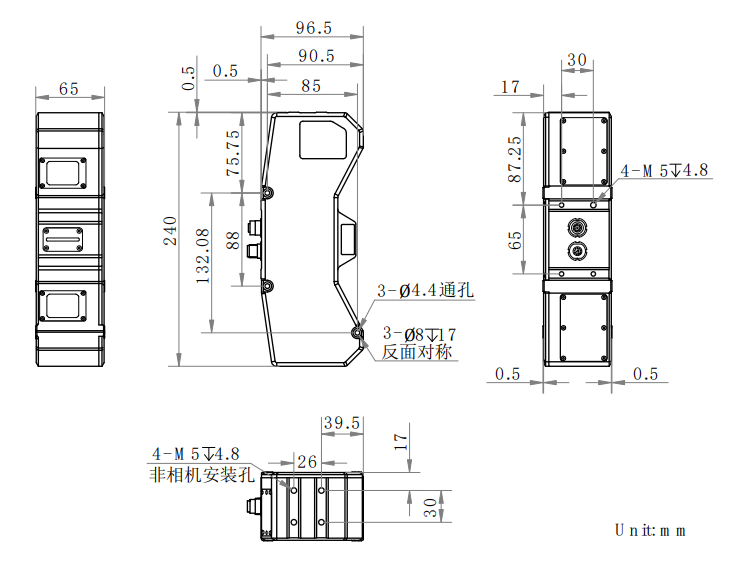

Dimensions

Detailed parameters

Ordering Model MIS-DP3850-10D

Model

Model	MIS-DP3850-10D
Name	3D Laser Profile Sensors

Performance

Points per Profile	3200
Reference Distance	117.0 mm
Z-Axis Measurement Range	80.0 mm
X-Axis Measurement Range	57.0 mm@ Proximal<br/> 74.2 mm@Reference Distance<br/> 91.4 mm@ Distal end
Z-Axis Resolution	3.89 µm ~ 7.56 µm
Z-Axis Repeatability	1.48 µm@Sensor tests the data of Standard gauge blocks on the OpticalPlatform
Z-Axis Linearity (±% of MR)	0.008
Profile Data Interval	18.1 µm ~ 29.8 µm
Scan Frame Rate	3.4kHz ~ 46.7kHz (high frame rate mode)
Data Output Type	Profile data, depth map, brightness map, line width map
Trigger Mode	Soft trigger, hard trigger (differential encoder trigger)

Laser Performance

Laser Safety Class	Class3R
Wavelength	405 nm

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O, 2 differential signal inputs (Line 3/6), two-way optocoupler isolation inputs (Line 0/9), 1 differential signal output (Line 1)
Power Supply	24 VDC
Typical Power Consumption	28 W@24 VDC

Mechanical

Dimensions	240 mm × 96.5 mm × 65 mm
Weight	approximately 1407 g
IP Rating	IP67
Temperature	Operating Temperature0 °C ~ 40 °C, Storage Temperature-30 °C ~ 80 °C
Humidity	20%~85%RH No condensation
