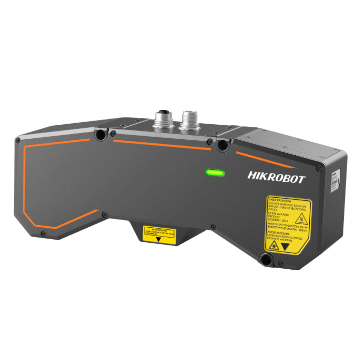

Name: HIKROBOT Binocular Single-Line Series
Brand: HIKROBOT
SKU: MV-DP3060-01D
Availability: InStock

MV-DP3120-01D

The Binocular Single-Line Series Laser Profile Sensor adopts binocular fusion, which can effectively eliminate blind spots in the field of view and suppress stray light on the metal surface. The hardware has built-in high-precision 3D algorithms, wide dynamic image processing algorithms and data fusion algorithms, which can output high-precision 3D point cloud data in real time. The products are widely used in 3C, electronics manufacturing, automotive and other industries, such as automotive Connector testing.

Product introduction

Functional characteristics

Dual image Sensor design eliminates blind spots in the field of view and suppresses stray light
Built-in high-precision 3D algorithm, and the repetition accuracy can reach sub-micron level
Using a high frame rate image chip, the scanning rate can reach up to 46.7kHz
Supports multiple exposure modes, larger Dynamic Range
adopts image fusion algorithm technology, and point cloud data is more complete
Supports multiple filtering modes to choose from. Point cloud data is more stable

Ordering Model

MV-DP3120-01D

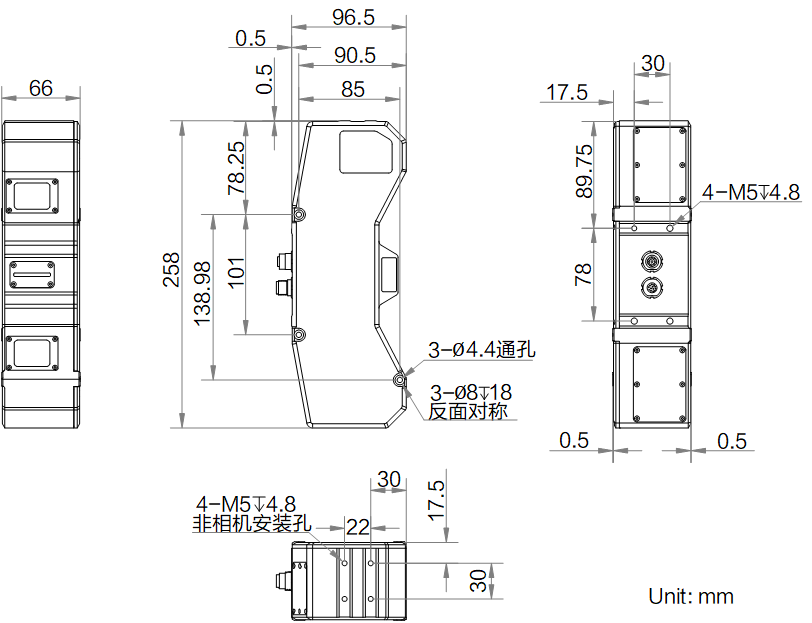

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DP3120-01D

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DP3120-01D

Model

Model	MV-DP3120-01D
Name	3D Laser Profile Sensors, DP3000 Series Binocular Single Line

Performance

Points per Profile	3200
Reference Distance	125 mm
Z-Axis Measurement Range	80.0 mm
X-Axis Measurement Range	61 mm@ proximal end; 77.6 mm@Reference Distance; 94.2 mm@ Distal end
Profile Data Interval	19.4 μm ~ 31.4 μm
Scan Frame Rate	1.3kHz (maximum measurement range), up to 19kHz (in ROI mode)
Data Output Type	Profile data, depth map, brightness map, line width map
Trigger Mode	Soft trigger, hard trigger (differential encoder trigger)
Laser Wavelength	405 nm
Laser Safety Class	Class3R
Z-Axis Resolution	4.23 μm ~ 7.47 μm
Z-Axis Repeatability	1.55 μm@Sensor testing data of Standard gauge blocks on the Optical Platform
Z-Axis Linearity (±% of MR)	0.008

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232
Power Supply	24 VDC
Typical Power Consumption	21 W@24 VDC

Mechanical

Dimensions	258 mm × 96.5 mm × 66 mm
Weight	approximately 1532 g
IP Rating	IP67
Temperature	Operating Temperature0 °C ~ 45 °C, Storage Temperature-30 °C ~ 80 °C
Humidity	20%~85%RH No condensation
