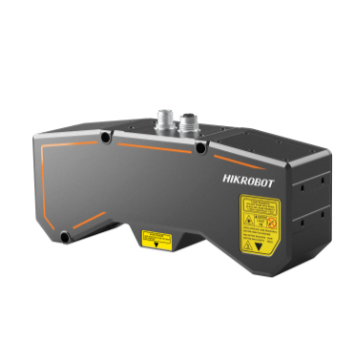

Name: HIKROBOT Binocular Single-Line Series
Brand: HIKROBOT
SKU: MV-DP3060-01D
Availability: InStock

MV-PDCDY01

The Binocular Single-Line Series Laser Profile Sensor adopts binocular fusion, which can effectively eliminate blind spots in the field of view and suppress stray light on the metal surface. The hardware has built-in high-precision 3D algorithms, wide dynamic image processing algorithms and data fusion algorithms, which can output high-precision 3D point cloud data in real time. The products are widely used in 3C, electronics manufacturing, automotive and other industries, such as automotive Connector testing.

Product introduction

Functional characteristics

Dual image Sensor design eliminates blind spots in the field of view and suppresses stray light
Built-in high-precision 3D algorithm, and the repetition accuracy can reach sub-micron level
Using a high frame rate image chip, the scanning rate can reach up to 46.7kHz
Supports multiple exposure modes, larger Dynamic Range
adopts image fusion algorithm technology, and point cloud data is more complete
Supports multiple filtering modes to choose from. Point cloud data is more stable

Ordering Model

MV-PDCDY01

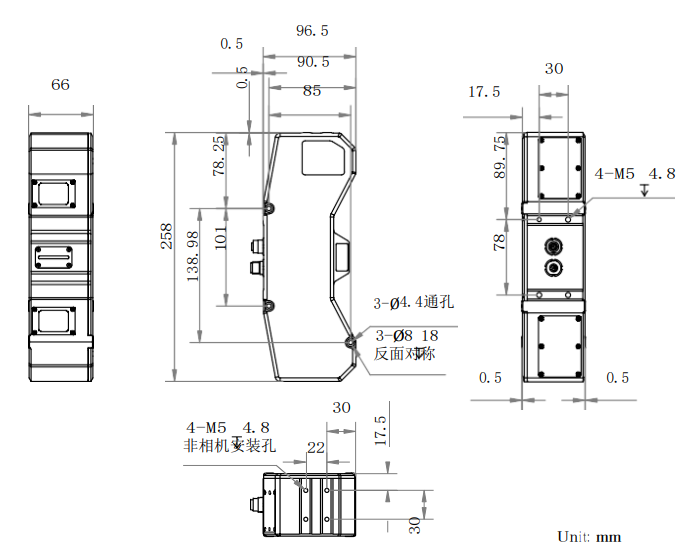

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-PDCDY01

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-PDCDY01

Model

Model	MV-PDCDY01
Name	3D Laser Profile Sensor

Performance

Points per Profile	3200
Reference Distance	125.0 mm
Z-Axis Measurement Range	80.0 mm
X-Axis Measurement Range	61 mm@ Proximal<br/> 77.6 mm@Reference Distance<br/> 94.2 mm@ distal end
Z-Axis Resolution	4.23 µm ~ 7.47 µm
Z-Axis Repeatability	1.55 µm@Sensor tests data on Standard gauge blocks on OpticalPlatform
Z-Axis Linearity (±% of MR)	0.008
Profile Data Interval	19.4 µm ~ 31.4 µm
Scan Frame Rate	1.3kHz (maximum measurement range) up to 19kHz (in ROI mode)
Data Output Type	Profile data, depth map, brightness map, line width map
Trigger Mode	Soft triggering, hard triggering (differential encoder triggering)

Laser Performance

Laser Safety Class	Class3R
Wavelength	405 nm

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin M12 Interface provides Power Supply and I/O, 3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232
Power Supply	24 VDC
Typical Power Consumption	21 W@24 VDC

Mechanical

Dimensions	258 mm × 96.5 mm × 66 mm
Weight	approximately 1532 g
IP Rating	IP67
Temperature	Operating Temperature 0 °C ~ 45 °C, Storage Temperature-30 °C ~ 80 °C
Humidity	20%~85%RH No condensation
