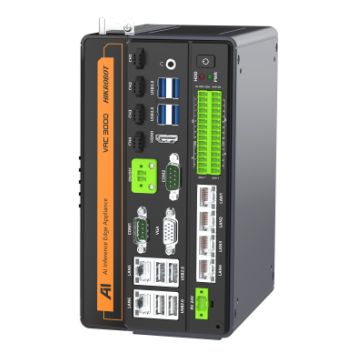

Name: HIKROBOT VAC3000 Series Smart AI Inference Terminals
Brand: HIKROBOT
SKU: MV-VAC3504H-128G01
Availability: InStock

MV-VAC3504H-128G01

The VAC3000 intelligent AI inference terminal is equipped with an AI accelerator card jointly developed by HIKROBOT and domestic chip manufacturers. It is deeply adapted to HIKROBOT VMSoftware, efficiently completing deep learning module calculations, and meeting the end-side deployment needs of industrial scenarios.

Product introduction

Functional characteristics

Equipped with a desktop-level Intel® CPU, providing multi-threaded parallel power computing Performance
Medium-high Performance and low-Power Consumption inference GPU, seamlessly connected with VM AI
Supports various interfaces, such as network port, IO, Serial Port, Light Source, etc.
Equipped with VM full-featured Software, it has rich VM traditional computing functions, deep learning functions and edge learning functions

Ordering

MV-VAC3504H-128G01

Dimensions

* The data involved in the product may be caused by environmental and other factors Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MV-VAC3504H-128G01

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-VAC3504H-128G01

Model

Model	MV-VAC3504H-128G01
Name	AI Inference Terminal 3504H Single Card

Performance

Processor	Intel® CoreTM i5-8500 Processor,6 core 6 threads
Memory	2*8 GB, supports 2 DDR4 SO-DIMMemory slots, maximum support for a single root is 16 GB, maximum support for 32 GB
Storage	128 GB M.2 SATA 2280 SSD;2 TB 2.5-inch 5400 rpm HDD
GPU	AI Inference Dedicated Card 1070D Memory capacity:8 GB GDDR4X Power:25 W Computing power: INT8/UINT8 TC:70 TOPS

Interface

Network Interface	6 Gigabit Internet ports
USB Interface	External 4 USB2.0 Interface1, 4 USB3.0 Interface1 Built-in USB2.0 Interface
Lighting Interface	4-channel 24V constant voltage Light Source drive requires a separate Power Supply, a single channel Max. Power Consumption72 W, four-way Max. Power Consumption 80W
Serial Port	Default 2 RS-232, optional configuration as RS-485/RS-422
Digital I/O	Support 8 digitally isolated inputs Supports 16 optocoupler isolated outputs (supports NPN/PNP switching)
Video Output	1 HDMI port, 1 VGA port Support simultaneous independent display and output Maximum support for 1920 × 1080@60Hz

Processing Capabilities

Task type	Support all VM traditional algorithms; support all VM edge learning CPUs; Supports deep learning GPUs and CPU modules
AI parallel processing capabilities	Supports parallel processing of multiple AI inference tasks, but no parallel acceleration effects
AI capability set	Target detection, character positioning, character recognition, single character detection, image classification, instance segmentation, image segmentation/fast image segmentation, Unsupervised segmentation, etc.

Electrical

Power Supply	24 V DC
Typical Power Consumption	150 W

Mechanical

Mounting Method	Place on a desktop or wall mount
Dimensions	161.4 mm × 208.5 mm × 105.5 mm
Weight	About 2.2 kg
Temperature	0 ~ 45 °C
Humidity	20%~95% RH No condensation
