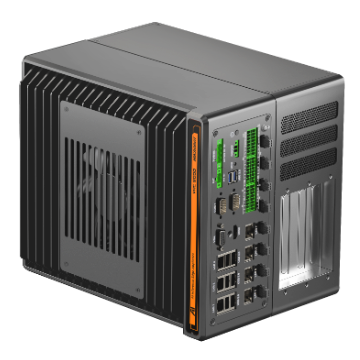

Name: HIKROBOT VAC5000 Series Smart AI Inference Terminals
Brand: HIKROBOT
SKU: MV-VAC5524-256G02
Availability: InStock

MV-VAC5724-256G02

The VAC5000 intelligent AI inference terminal is equipped with two AI acceleration cards jointly developed by HIKROBOT and domestic chip manufacturers. It is deeply adapted to HIKROBOT VMSoftware, making it easy to cope with concurrent reasoning of multiple AI modules and meet the end-side deployment needs of industrial scenarios.

Product introduction

Functional characteristics

Equipped with a desktop-level Intel® CPU, providing multi-threaded parallel power computing Performance
Medium-high Performance and low-Power Consumption inference GPU, seamlessly connected with VM AI
Supports various interfaces, such as network port, IO, Serial Port, Light Source, etc.
Equipped with VM full-featured Software, it has rich VM traditional computing functions, deep learning functions and edge learning functions

Ordering

MV-VAC5724-256G02

Dimensions

* The data involved in the product may be caused by environmental and other factors Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MV-VAC5724-256G02

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

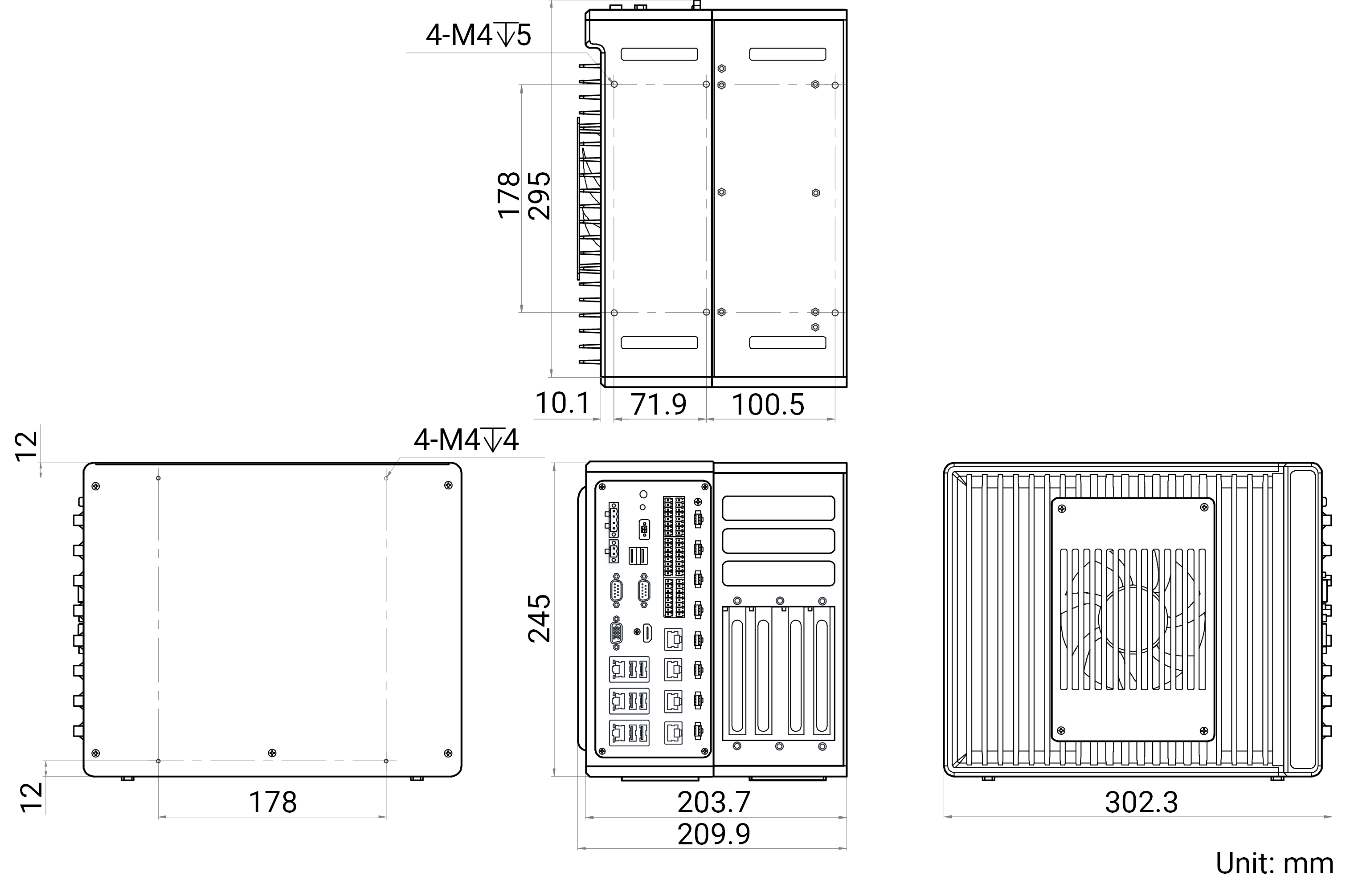

Dimensions

Detailed parameters

Ordering Model MV-VAC5724-256G02

Model

Model	MV-VAC5724-256G02
Name	AI Inference Terminal VC5724 Dual Card

Performance

Processor	Intel® CoreTM i7-12700 Processor,12 core 20 threads
Memory	16 GB, supports 2 DDR5 SO-DIMMemory slots, maximum support for a single root of 32 GB, maximum support for 64 GB
Storage	256 GB M.2 SATA 2280 SSD;2 TB 3.5-inch 5400 rpm HDD
GPU	AI Inference Dedicated Card 1070D × 2 Memory capacity:8 GB GDDR4X × 2 Power:25 W Computing power: INT8/UINT8 TC:70 TOPS

Interface

Network Interface	7 Gigabit network ports, 4 of which support PoEPower Supply
USB Interface	External 4 USB2.0 Interface, 4 USB3.0 Interface Built-in USB2.0 Interface
Lighting Interface	8-channel 24V constant voltage Light Source drivers require separate Power Supply, single Max. Power Consumption72 W,8-way Max. Power Consumption 190W
Serial Port	Default 2 RS-232, optional configuration as RS-485/RS-422
Digital I/O	Support 8 optocoupler isolated inputs Support 12 optocoupler isolated outputs (support NPN/PNP switching), 8 digitally isolated low-side driver outputs Supports 4 channels of non-isolated bidirectional differential I/Os
Video Output	1 HDMI port, 1 VGA port Support simultaneous independent display and output Maximum support of 1920 × 1080@60Hz
Expansion Interface	2 SATA3.0, 1 M.2NVME, 1 PCIe x16, 1 PCIe x8Expansion Interface

Processing Capabilities

Task types	Support all VM legacy algorithms; Support all VM edge learning CPUs; Supports deep learning GPUs and CPU modules
AI parallel processing capabilities	Supports parallel processing of multiple AI inference tasks, with obvious acceleration effects
AI capability set	Target detection, character positioning, character recognition, single character detection, image classification, instance segmentation, image segmentation/fast image segmentation, Unsupervised segmentation, etc.

Electrical

Power Supply	24 V DC
Typical Power Consumption	314 W (4-pinInterface System Power Supply)+232 W (2-pinInterface provides auxiliary Power Supply for PCIe cards, If you do not use the auxiliary Power Supply of a PCIe card, you can not connect it)

Mechanical

Mounting Method	Place it on a desktop or wall mount
Dimensions	302.3 mm × 248 mm × 210 mm
Weight	About 7.6 kg
Temperature	0 ~ 45 °C
Humidity	20%~95% RH No condensation
