HIKROBOT CE Series Industrial Area Scan Cameras

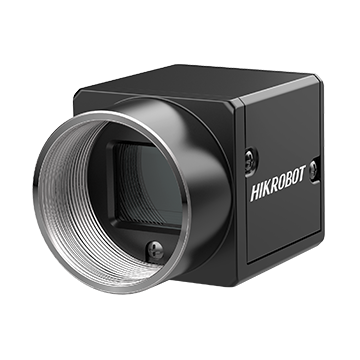

MV-CE120-10UM

4000×3036, USB3.0, Black and white

Consulting quotation
MV-CE120-10UM

Product introduction

Functional characteristics

  • Support Global Reset mode, which can be used with Light Source to obtain smear-free images in sports environments

  • Color Camera is implanted with excellent image interpolation algorithm, excellent Color restoration characteristics

  • Support automatic or manual adjustment of Gain, Exposure Time, white balance, manual adjustment of Gamma and LUT correction, etc.

  • Support custom ROI, support horizontal Mirror and vertical Mirror

  • Support hard trigger, soft trigger and free run modes

  • Compatible with USB3 Vision protocol and GenICamStandard, Can be seamlessly connected with third-party SoftwarePlatforms



Ordering Model

MV-CE120-10UM


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CE120-10UM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

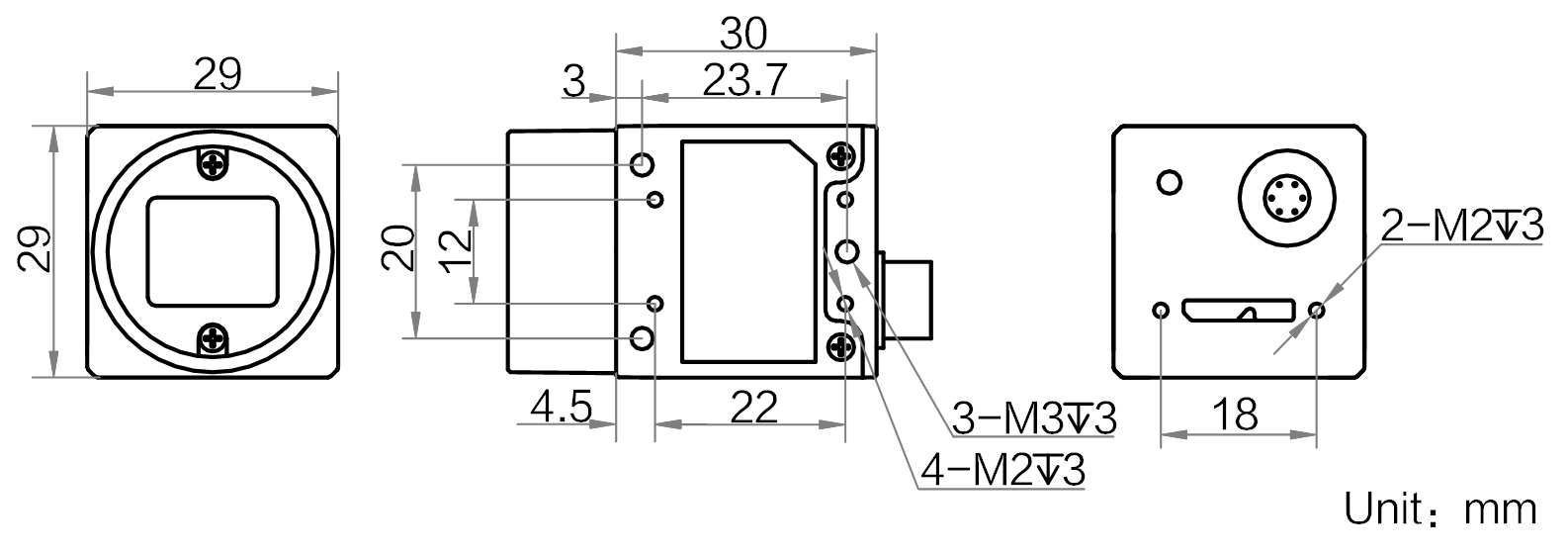

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CE120-10UM
Product Model MV-CE120-10UM
Sensor Model IMX226
Resolution 4000×3036
Max. Frame Rate 31.9 fps
Data Interface USB3.0
Mono/Color Black and white

Data download

Product manual· SDK ·Development documentation
