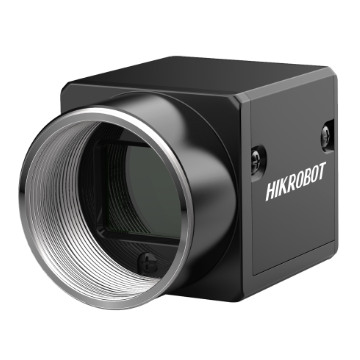

Name: HIKROBOT CA Series Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CA003-20GC
Availability: InStock

Product introduction

Functional characteristics

Supports automatic or manual adjustment of Gain, Exposure Time, white balance, Gamma, LUT correction, etc.
Supports custom ROI, supports horizontal Mirror and vertical Mirror
Supports hard triggering, soft triggering and free running mode
Mechanical Compact, Dimensions29 mm × 29 mm × 30 mm, suitable for smaller installation requirements
Compatible with USB3 Vision protocol and GenICamStandard, Can be seamlessly connected with third-party SoftwarePlatforms

Ordering Model

MV-CA003-21UC

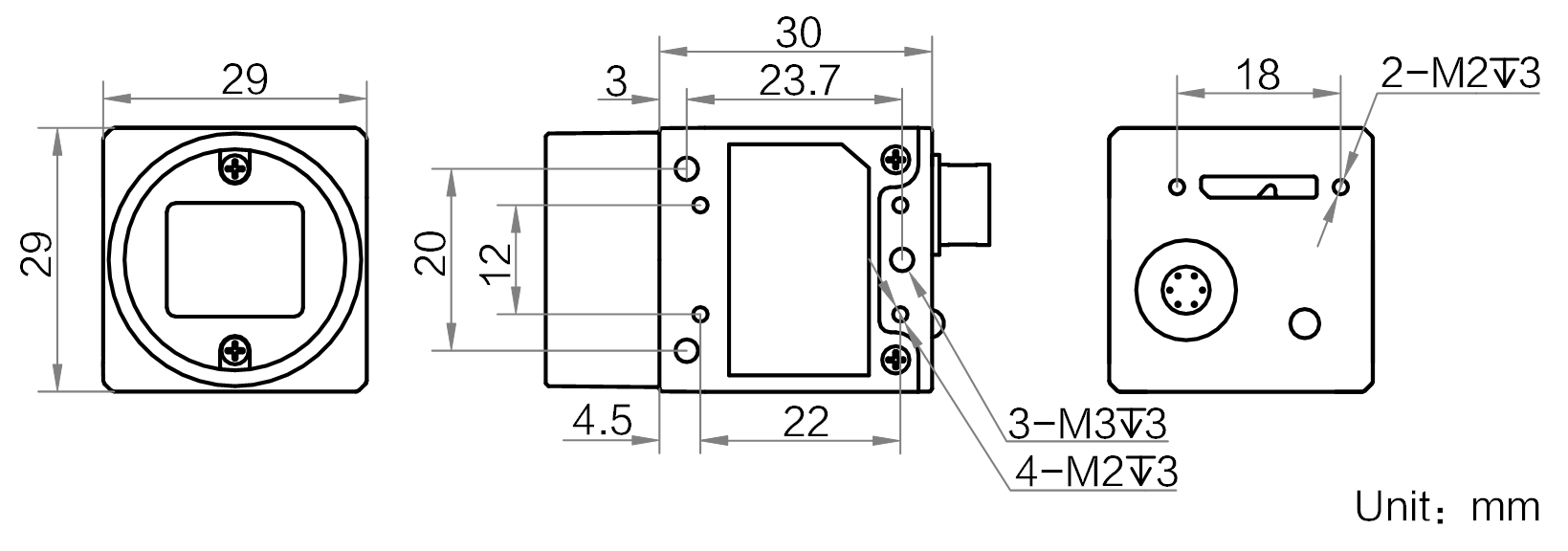

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CA003-21UC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-CA003-21UC

Model

Model	MV-CA003-21UC
Name	300,000 area array Camera, PYTHON300, color

Performance

Sensor Type	CMOS, global shutter
Sensor Model	OnSemi PYTHON300
Pixel Size	4.8 μm×4.8 μm
Optical Format	1/4"
Resolution	640×480
Max. Frame Rate	814.5 fps@640 × 480
Dynamic Range	59 dB
SNR	39.9 dB
Gain	0 dB ~15 dB
Exposure Time	40 μs ~ 10 sec
Shutter Mode	Support automatic exposure, manual exposure, one-click exposure modes
Mono/Color	Color
Pixel Format	Mono 8/10/12 Bayer RG 8/10/10Packed/12/12Packed YUV422Packed,YUV422_YUYV_Packed RGB 8,BGR 8
Binning	Support 1 × 1,1 × 2, 1 × 4, 2 × 1,2 × 2, 2 × 4, 4 × 1,4 × 2, 4 × 4
Downsampling	Support 1 × 1,2 × 2
Mirror	Support horizontal Mirror, Vertical Mirror
Cache capacity	128MB

Electrical

Data Interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7Connector provides Power Supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated IO(Line2)
Power Supply	12 VDC, support USBPower Supply
Typical Power Consumption	3.3 W@5 VDC(USBPower Supply)

Mechanical

Lens Mount	C-Mount
Dimensions	29 mm × 29 mm × 30 mm
Weight	approx. 56 g
IP Rating	IP30 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~80% RH No condensation

General Specifications

Software	MVS or third-party Software compatible with the USB3 Vision protocol
Operating System	Windows XP/7/10 32/64bits,Linux 32/64bits and MacOS 64bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	CE,FCC,RoHS,KC
