Name: HIKROBOT CA Series Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CA003-20GC
Availability: InStock

Product introduction

Functional characteristics

Supports automatic or manual adjustment of Gain, Exposure Time, etc., manual adjustment of LUT, Gamma correction, etc.
Supports custom ROI, supports horizontal Mirror and vertical Mirror
Mechanical compact, Dimensions 29 mm×29 mm×30 mm, suitable for smaller installation requirements
Compatible with USB3 Vision protocol and GenlCam Standard, can be connected to third-party SoftwarePlatform

Ordering Model

MV-CA013-A0UM

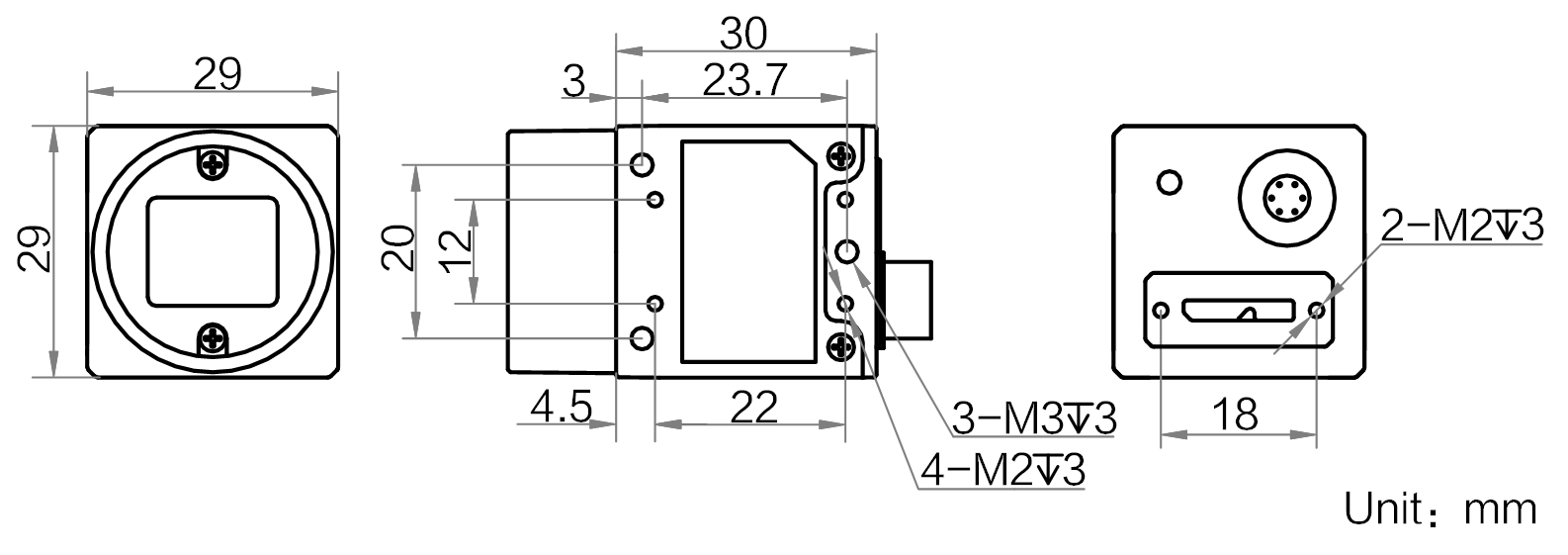

Dimensions

* Product data may cause Differences , The company will not bear the consequences arising therefrom.

MV-CA013-A0UM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-CA013-A0UM

Model

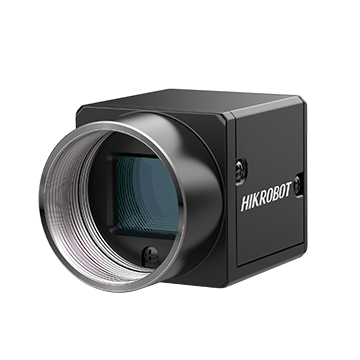

Model	MV-CA013-A0UM
Name	1.3 megapixel USB3.0 area array Camera, black and white

Performance

Sensor Type	CMOS, global shutter
Pixel Size	4.8 μm × 4.8μm
Optical Format	1/2"
Resolution	1280 × 1024
Max. Frame Rate	201 fps@1208 × 1024 Mono 8
Dynamic Range	53 dB
SNR	40 dB
Gain	0 dB ~ 16 dB
Exposure Time	9 μs ~ 10 sec
Shutter Mode	Support automatic exposure, manual exposure, one-click exposure modes
Mono/Color	Black and white
Pixel Format	Mono 8/10/10Packed/12/12Packed
Binning	Support 1 × 1,2 × 2,4 × 4
Downsampling	Support 1 × 1,2 × 2,4 × 4
Mirror	Support horizontal Mirror, vertical Mirror output

Electrical

Data Interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7Connector provides Power Supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated IO(Line2)
Power Supply	9 ~ 24 VDC, support USBPower Supply
Typical Power Consumption	2.4 W@5 VDC(USBPower Supply)

Mechanical

Lens Mount	C-Mount
Dimensions	29 mm × 29 mm × 30 mm
Weight	Approximately 80 g
IP Rating	IP30 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95% RH No condensation

General Specifications

Software	MVS or third-party Software compatible with the USB3 Vision protocol
Operating System	Windows XP/7/10/11 32/64 bits, Linux 32/64 bits and MacOS 64bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	CE,RoHS,KC
