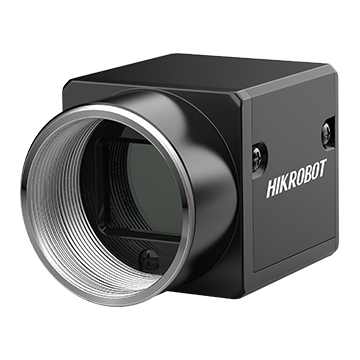

Name: HIKROBOT CA Series Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CA003-20GC
Availability: InStock

Product introduction

Functional characteristics

Supports automatic or manual adjustment of Gain, Exposure Time, white balance, Gamma, LUT correction, etc.
Supports custom ROI, supports horizontal Mirror and vertical Mirror
Supports hard triggering, soft triggering and free running mode
Mechanical compact, Dimensions 29 mm×29 mm×30 mm, suitable for smaller installation requirements
Compatible with USB3 Vision protocol and GenICam Standard, Can be seamlessly connected with third-party SoftwarePlatforms

Ordering Model

MV-CA023-10UM

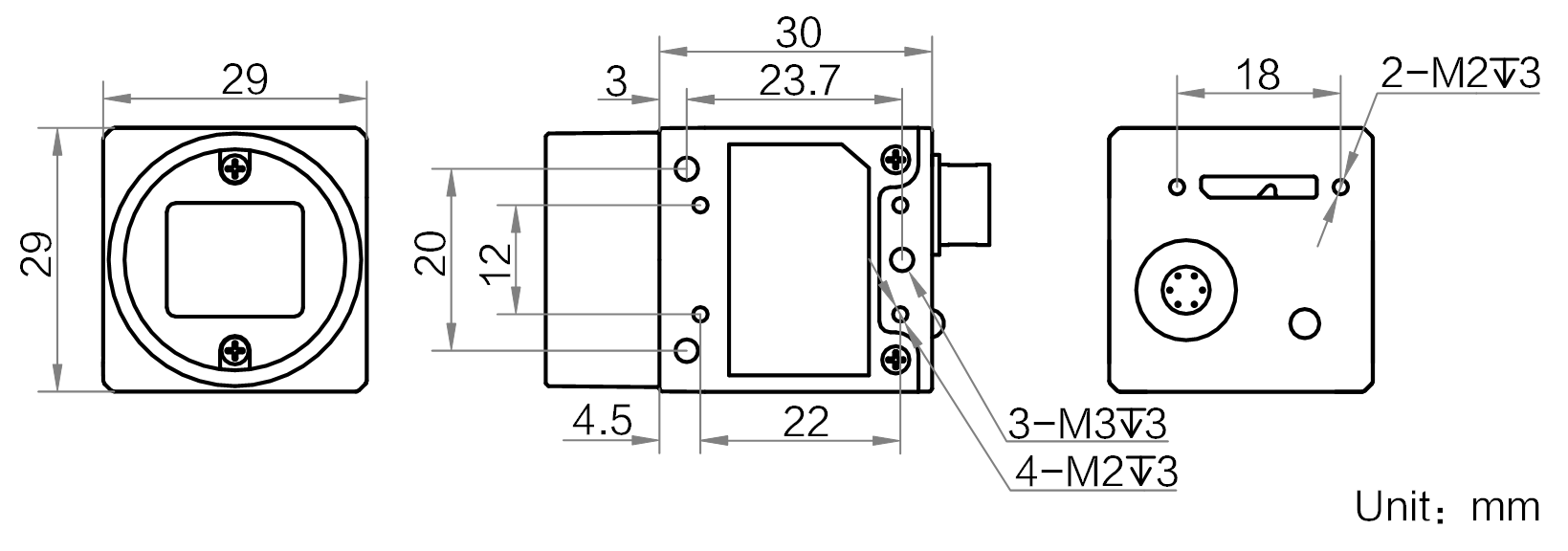

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CA023-10UM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-CA023-10UM

Model

Model	MV-CA023-10UM
Name	2.3 megapixel USB 3.0 Area Array Camera, IMX249, Black and White

Performance

Sensor Type	CMOS, global shutter
Sensor Model	Sony IMX249
Pixel Size	5.86 μm×5.86 μm
Optical Format	1/1.2"
Resolution	1920×1200
Max. Frame Rate	41 fps@1920×1200 Mono 8
Dynamic Range	70 dB
SNR	40 dB
Gain	0 dB ~20 dB
Exposure Time	34 μs ~ 10 sec
Shutter Mode	Support automatic exposure, manual exposure, and one-click exposure modes
Mono/Color	black and white
Pixel Format	Mono 8/10/10Packed/12/12Packed
Binning	Support 1×1,1×2,1×4,2×1,2×2,2×4,4×1,4×2,4×4
Downsampling	Support 1×1,1×2,1×4,2×1,2×2,2×4,4×1,4×2,4×4
Mirror	Support horizontal Mirror and vertical Mirror

Electrical

Data Interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7Connector provides Power Supply and I/O:1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated IO(Line2)
Power Supply	12 VDC, support for USBPower Supply
Typical Power Consumption	2.5 W@5 VDC(USBPower Supply)

Mechanical

Lens Mount	C-Mount
Dimensions	29 mm×29 mm×30 mm
Weight	Approximately 56 g
IP Rating	IP30(with Lenses and Cables installed correctly)
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~80% RH non-condensing

General Specifications

Software	MVS or third-party Software compatible with the USB3 Vision protocol
Operating System	Windows XP/7/10/11 32/64bits,Linux 32/64bits, and MacOS 64bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	CE,FCC,RoHS,KC
