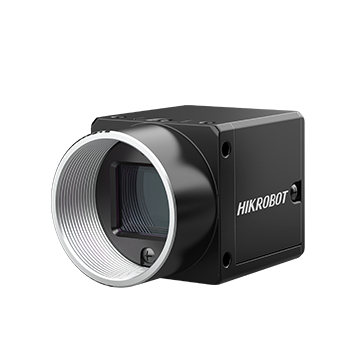

HIKROBOT CH Series Industrial Area Scan Cameras

MV-CH050-10UC

2448 × 2048, USB3.0, Color

Consulting quotation
MV-CH050-10UC

Product introduction

Functional characteristics

  • Mechanical design is compact and supports four-sided installation

  • Supports LSCLenses shadow correction, Sequencer and Super Palette functions

  • Supports automatic or manual adjustment of Gain, Exposure Time, Gamma correction, LUT, etc.

  • Supports hard trigger, soft trigger and free run mode

  • Supports custom ROI, supports horizontal Mirror and vertical Mirror

  • Compatible with USB3 Vision protocol and GenlCamStandard, Access to third-party SoftwarePlatform



Order Model

MV-CH050-10UC


Dimensions


* Data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-CH050-10UC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

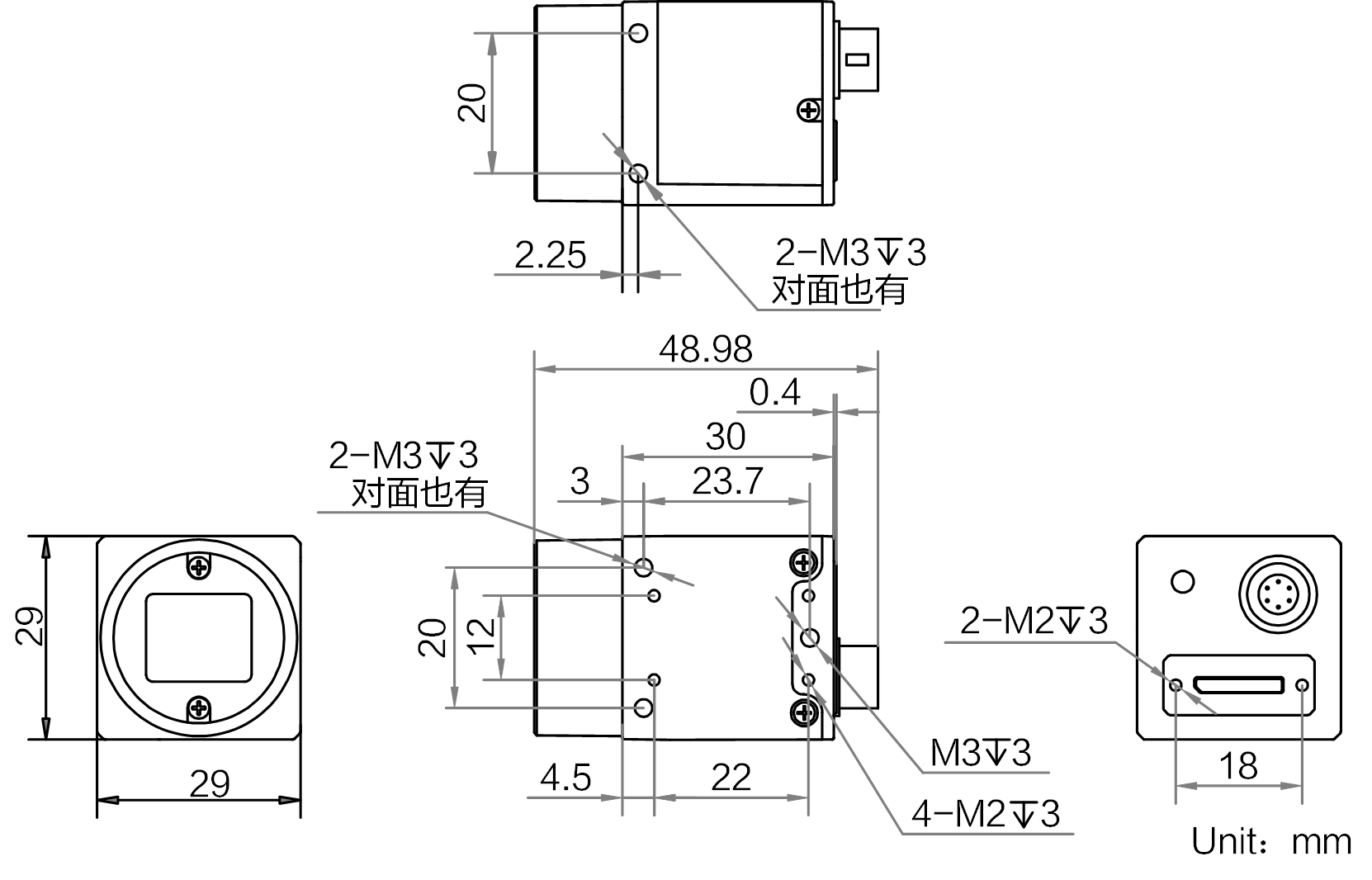

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CH050-10UC
Product Model MV-CH050-10UC
Resolution 2448 × 2048
Max. Frame Rate 74.1 fps
Sensor Model IMX250
Data Interface USB3.0
Mono/Color Color

Data download

Product manual· SDK ·Development documentation
