Name: HIKROBOT CH Series Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CH040-A0CM
Availability: InStock

Product introduction

Functional characteristics

Resolution2592 × 2160, Pixel Size2.5 µm
Global shutter CMOS, high Dynamic Range, good SNR, and excellent image quality
Supports high-order functions such as LSCLenses shadow correction, super palette, CCM, and SuperBayer
Use CXP-6Interface to transmit data
Compatible with the CoaXPress protocol and GenlCamStandard

Ordering Model

MV-CH050-90XM-C-NN

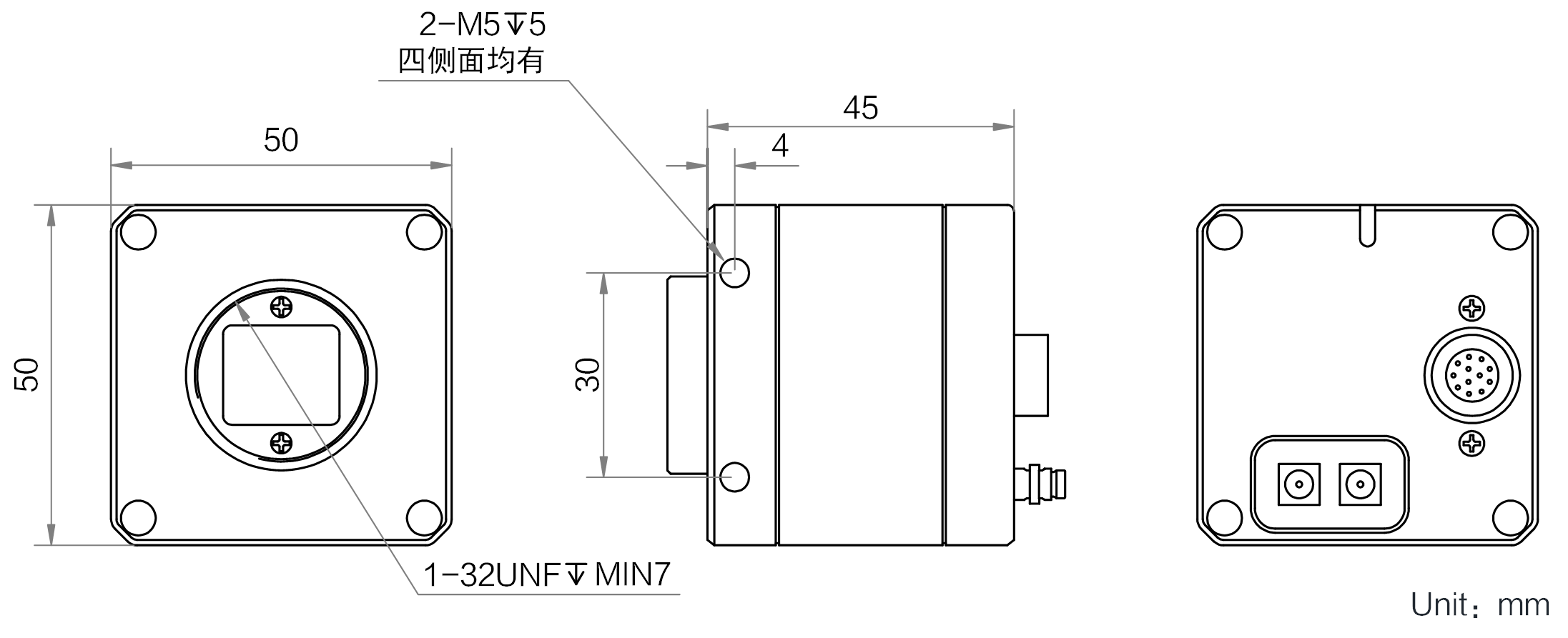

Dimensions

* The data involved in the product may cause differences and due to environmental and other factors. The company will not bear the consequences.

MV-CH050-90XM-C-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

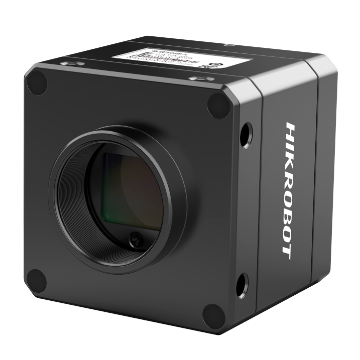

Ordering Model MV-CH050-90XM-C-NN

Model

Model	MV-CH050-90XM-C-NN
Name	5-megapixel CXP-6 area array Camera, GMAX2505, C-port, fanless, black and white

Performance

Sensor Type	CMOS, global shutter
Sensor Model	Gpixel GMAX2505
Pixel Size	2.5 μm × 2.5 μm
Optical Format	1/2''
Resolution	2592 × 2160
Max. Frame Rate	213 fps @2592 × 2160 Mono 8
Dynamic Range	63.8 dB
SNR	37 dB
Gain	1.0x,1.25x,1.5x,1.75x,2.0x
Exposure Time	5 μs ~ 10 sec
Shutter Mode	Support automatic exposure, manual exposure, one-click exposure modes
Mono/Color	Black and white
Pixel Format	Mono 8/12
Binning	Support 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1,4 × 2, 4 × 4
Downsampling	Support 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Mirror	Support horizontal Mirror, vertical Mirror output

Electrical

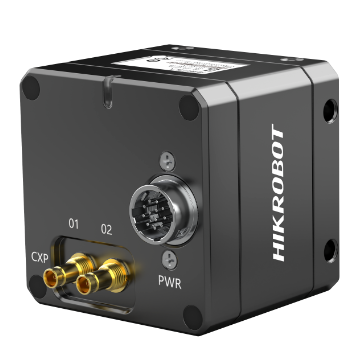

Data Interface	CoaXPress(DINInterface)
Digital I/O	12-pin P10Connector provides Power Supply source and I/O: 1 optocoupler isolated input (Line 0), 1 optocoupler isolated output (Line 1), 1 bidirectional configurable non-isolated I/O(Line2), 1 RS-232
Power Supply	9 ~ 24 VDC, CXP-1Interface supports PoCXPPower Supply
Typical Power Consumption	5.3 W @12 VDC

Mechanical

Lens Mount	C-Mount
Dimensions	50 mm × 50 mm × 45 mm
Weight	approximately 220 g
IP Rating	IP40 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature0°C~ 50°C, Storage Temperature-30°C~ 80°C
Humidity	20% ~ 95%RH No condensation

General Specifications

Software	MVS or Frame Grabbers Control Software compliant with the CoaXPress protocol
Operating System	Windows 7/10 32/64bits, Windows 11 64bits and Linux 32/64bits
Protocol / Standard	CoaXPress,GenlCam
Certification	CE,RoHS,KC
