HIKROBOT CH Series Industrial Area Scan Cameras

MV-CH050-90Y1M-NN

2448 × 2048, CoaXPress, Black and white

Consulting quotation
MV-CH050-90Y1M-NN

Product introduction

Features

  • Resolution2448 × 2048, Pixel Size3.4 µm

  • Global shutter CMOS, high Dynamic Range, good SNR, excellent image quality

  • Data transmission using CXP-12Interface

  • Compatible with CoaXPress protocol and GenlCamStandard



Ordering Model

MV-CH050-90Y1M-NN


Dimensions


* The data involved in the product may vary § 10 §difference, the company will not bear the consequences arising therefrom.

Ordering Model

MV-CH050-90Y1M-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

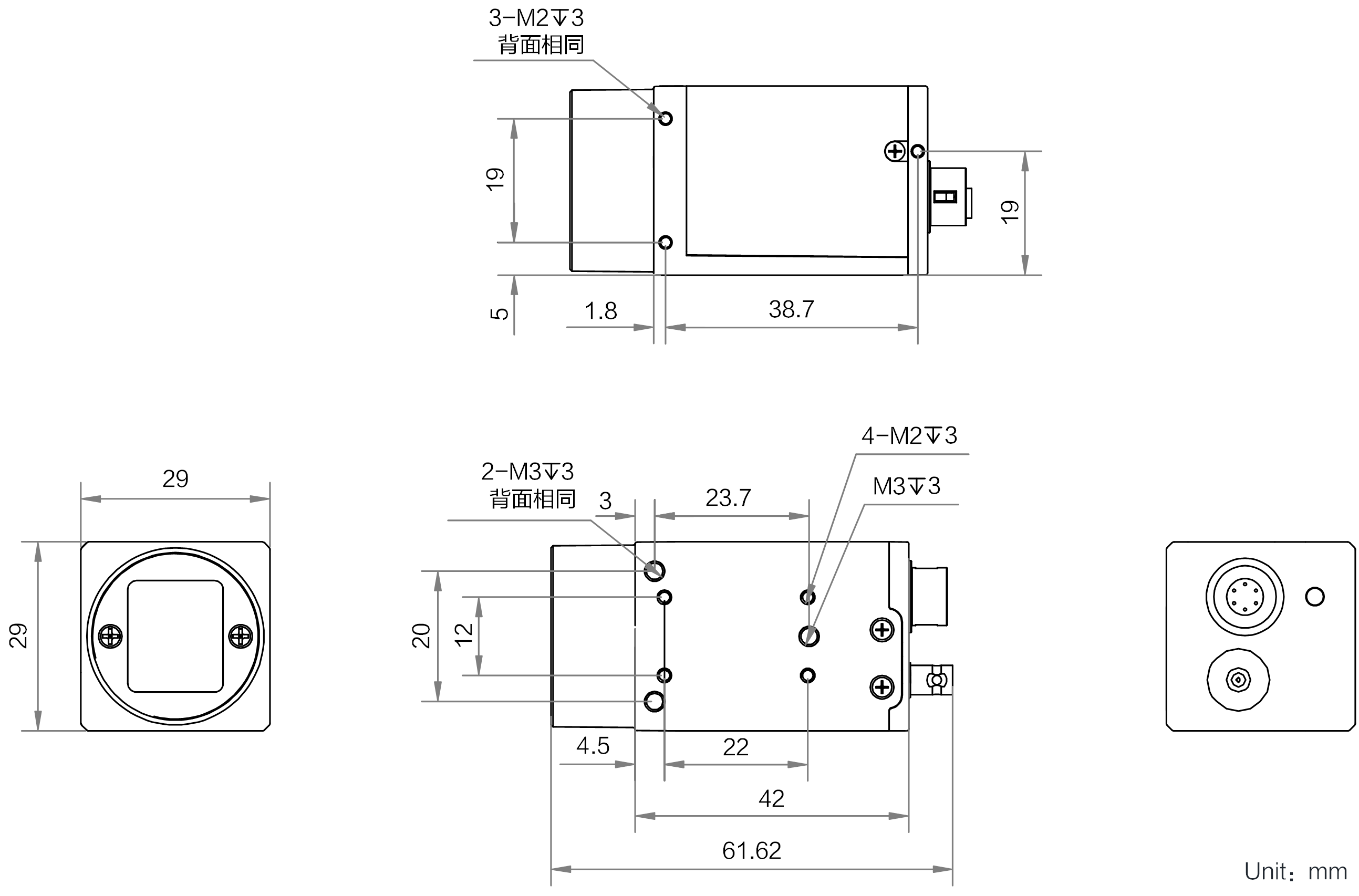

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CH050-90Y1M-NN
Product Model MV-CH050-90Y1M-NN
Resolution 2448 × 2048
Max. Frame Rate 164.0 fps
Sensor Model GMAX3405
Data Interface CoaXPress
Mono/Color Black and white

Data download

Product manual· SDK ·Development documentation
