Name: HIKROBOT CH Series Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CH040-A0CM
Availability: InStock

Product introduction

Functional characteristics

Supports high-level functions such as LSC, Sequencer, and passive transmission
Color Camera supports interpolation, white balance, CCM, SuperPalette, SuperBayer and other color algorithms
A new generation of Mechanical design supports four-sided installation. Small size, can fit into C-port Lenses
Compatible with USB3 Vision protocol and GenICamStandard, and can seamlessly connect with third-party Software Platforms

Ordering Model

MV-CH120-10UM

Dimensions

* Data related to the product may be generated due to environmental factors and other factors Differences , the company will not bear the consequences arising therefrom.

Ordering Model

MV-CH120-10UM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Dimensions drawings can be downloaded from the product manual to view, or contact sales for CAD / PDF drawings.

Detailed parameters

Ordering Model MV-CH120-10UM

Model

Model	MV-CH120-10UM
Name	12 megapixel USB 3.0 Area Array Camera, IMX304, Black and White, V4

Performance

Sensor Type	CMOS, global shutter
Sensor Model	Sony IMX304
Pixel Size	3.45 μm×3.45 μm
Optical Format	1.1"
Resolution	4096×3000
Max. Frame Rate	30.5 fps@4096×3000 Mono 8
Dynamic Range	70.4 dB
SNR	40.2 dB
Gain	0 dB ~ 24 dB
Exposure Time	Ultra-small exposure mode:2 μs ~ 14 μs Normal exposure mode:15 μs ~ 10 sec
Shutter Mode	Supports automatic exposure, manual exposure, and one-click exposure modes
Mono/Color	Black and white
Pixel Format	Mono 8/10/10Packed/12/12Packed
Binning	Support 1× 1, 2 × 2, 4 ×4
Downsampling	Support 1× 1, 2 × 2, 4 ×4
Mirror	Support horizontal Mirror and vertical Mirror

Electrical

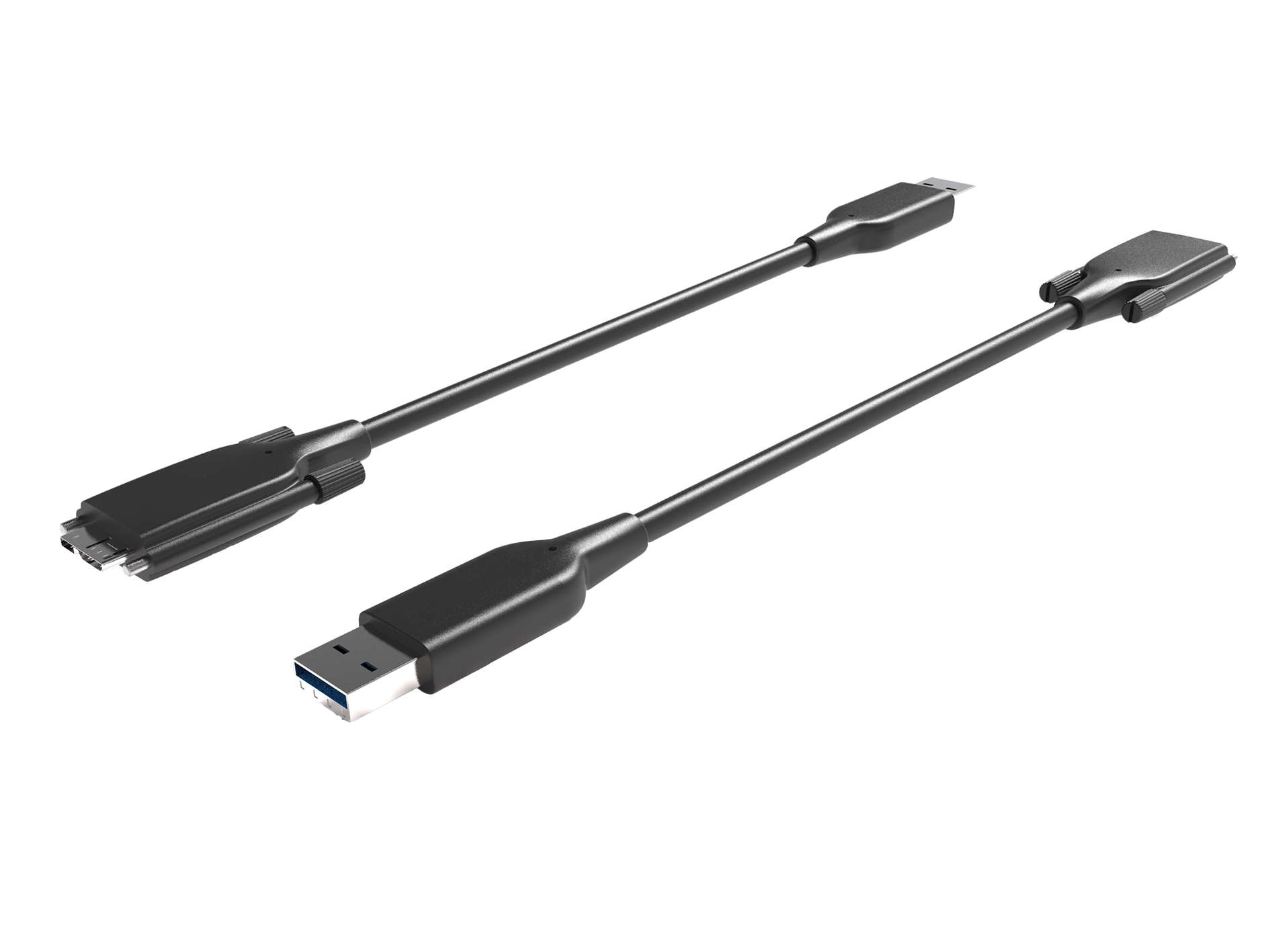

Data Interface	USB 3.0, compatible with USB 2.0

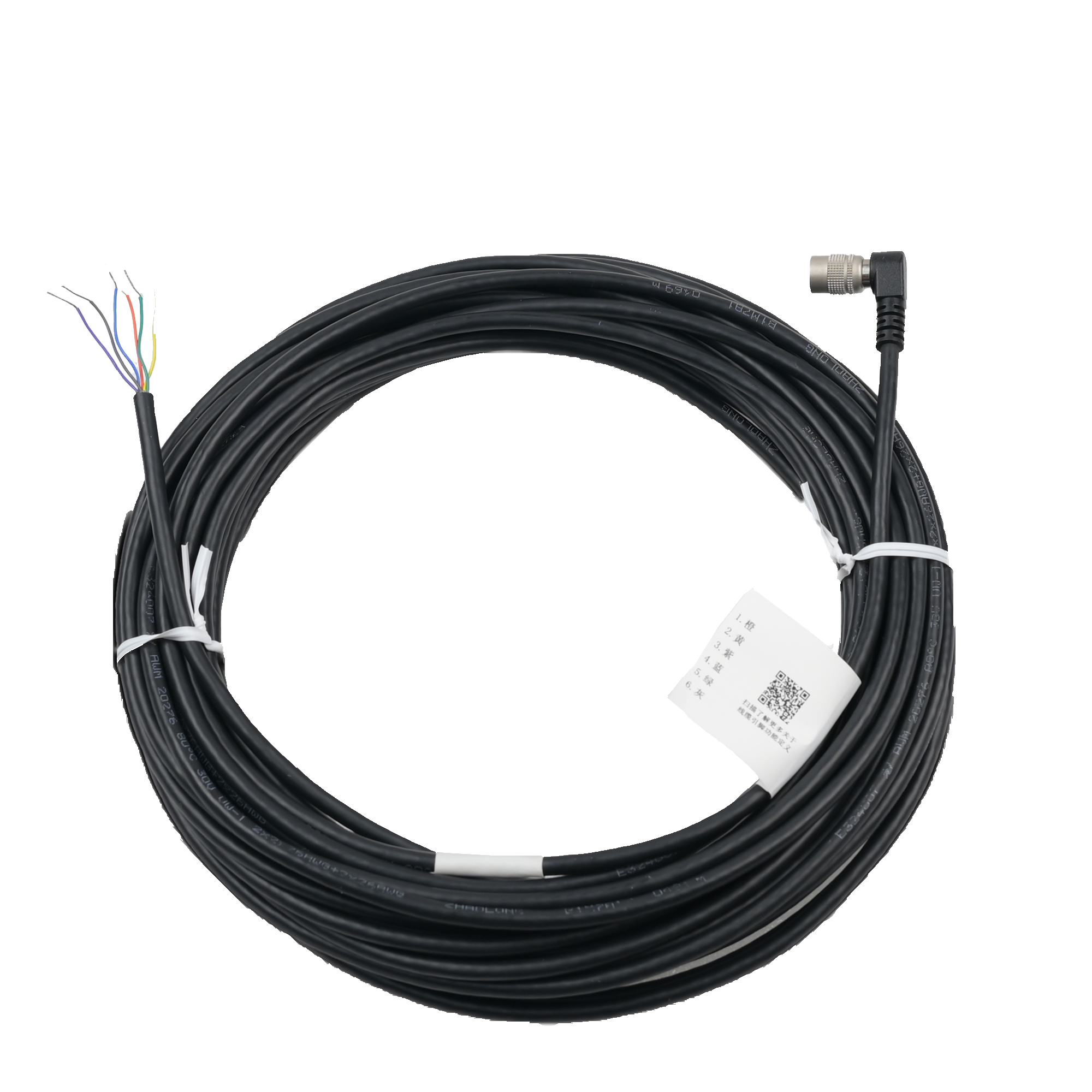

Digital I/O	6-pin P7Connector provides Power Supply and I/O:1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated IO(Line2)
Power Supply	9~24 VDC, support USBPower Supply
Power Consumption	2.9 W@5 VDC(USB 3.0Power Supply)

Mechanical

Lens Mount	C-Mount
Dimensions	29 mm×29 mm×30 mm
Weight	About 80 g
IP Rating	IP40(if Lenses and Cables are installed correctly)
Temperature	Operating Temperature-10~50°C, Storage Temperature-30~80°C
Humidity	20%~95% RH Non-condensing

General Specifications

Software	MVS or third-party Software compatible with the USB3 Vision protocol
Operating System	Windows 7/10 32/64bits,Windows 11 64bits,Linux 32/64bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	CE,RoHS,KC
