Name: HIKROBOT CH Series Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CH040-A0CM
Availability: InStock

Product introduction

Functional characteristics

Resolution28416 × 21280, Pixel Size3.76 µm
Optional 151 million or 604 million Resolution mode, built-in ISP algorithm improves imaging quality
Rolling shutter CMOS, high Dynamic Range, low noise level
Supports FFC correction and LSC correction to eliminate response differences between pixels
Supports 16-bit ADC output with high sampling accuracy
Transferring data using the CXP-6Interface
Compatible with CoaXPress protocol and GenlCamStandard

Ordering Model

MV-CH6040-10XM-M72-NF

Dimensions

* Data related to the product may be generated due to environmental factors and other factors Differences , the company will not bear the consequences arising therefrom.

Ordering Model

MV-CH6040-10XM-M72-NF

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Dimensions drawings can be downloaded from the product manual to view, or contact sales for CAD / PDF drawings.

Detailed parameters

Ordering Model MV-CH6040-10XM-M72-NF

Model

Model	MV-CH6040-10XM-M72-NF
Name	604 megapixel CoaXPress Area Array Camera, IMX411, black and white, with fan

Performance

Sensor Type	CMOS, rolling shutter
Sensor Model	Sony IMX411
Pixel Size	3.76 μm × 3.76 μm
Optical Format	66.7 mm
Resolution	28416 × 21280
Max. Frame Rate	1.45 fps @28416 × 21280 Mono 8
Dynamic Range	78.7 dB
SNR	46.4 dB
Gain	0 ~ 40 dB
Exposure Time	15 μs ~ 1 s
Shutter Mode	Supports automatic exposure, manual exposure, one-click exposure modes, supports Rolling and Global Reset modes
Mono/Color	Black and white
Pixel Format	Mono 8/10/12/16
Binning	Support 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Downsampling	Not supported
Mirror	Support Level Mirror

Electrical

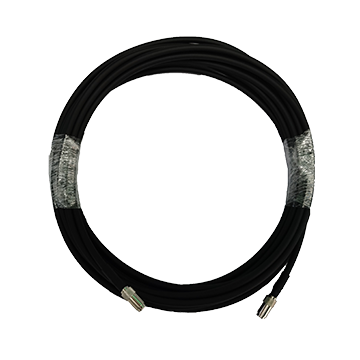

Data Interface	CoaXPress(DIN port)
Digital I/O	12-pin P10Connector provides Power Supply source and I/O:1 optocoupler isolated input (Line 0), 1 optocoupler isolated output (Line 1), 1 bidirectional configurable non-isolated I/O(Line 2), 1 RS-232
Power Supply	24 VDC
Typical Power Consumption	15 W @24 VDC

Mechanical

Lens Mount	M72* 0.75, Optical back focus 19.55 mm
Dimensions	100 mm × 100 mm × 128.5 mm
Weight	About 1.4 kg
IP Rating	IP40(if Lenses and Cables are installed correctly)
Temperature	Performance guarantees Temperature20°C ~ 35°C,Operating Temperature0°C ~ 50°C, Storage Temperature-30°C ~ 80°C
Humidity	20% ~ 95% RH Non-condensing

General Specifications

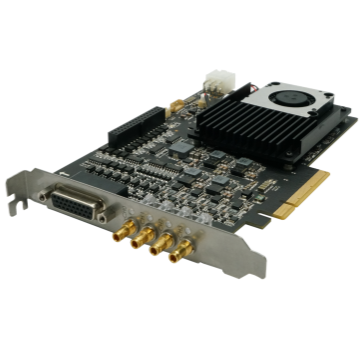

Software	Frame Grabbers Control Software compliant with the CoaXPress protocol
Operating System	Windows 7/10 32/64bits, Windows 11 64 bits, Linux 32/64bits
Protocol / Standard	CoaXPress,GenICam
Certification	CE,RoHS,KC
