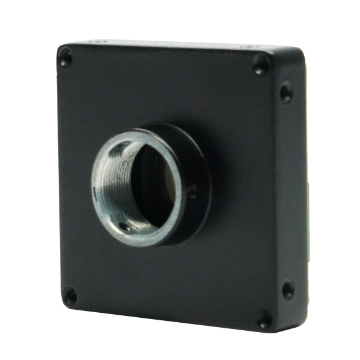

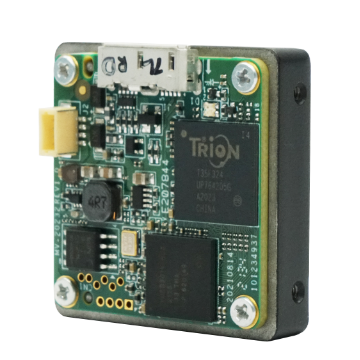

Name: HIKROBOT CB Series Board-Level Cameras
Brand: HIKROBOT
SKU: MV-CB004-10GM-C
Availability: InStock

Product introduction

Functional characteristics

Supports automatic or manual adjustment of Gain, Exposure Time, white balance, Gamma correction, LUT, etc.
Color Camera is implanted with excellent image interpolation algorithms for better Color restoration
Via USB3.0 InterfacePower Supply and data transmission
Compatible with USB3 Vision protocol and GenlCamStandard, can be connected to third-party Software Platform

Ordering Model

MV-CB013-A0UM-S

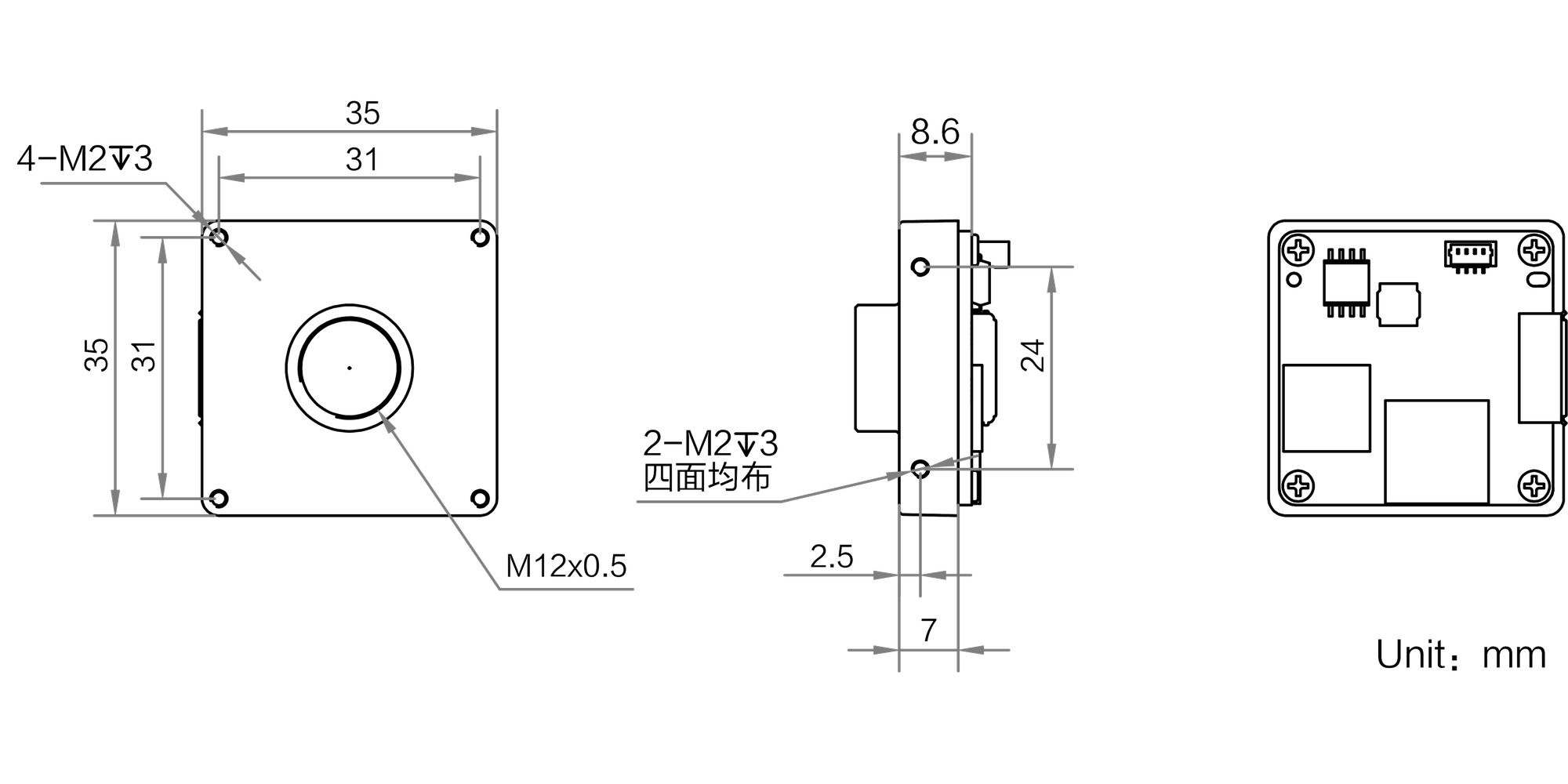

Dimensions

* Data involved in the product may cause Differences due to environmental factors. The company will not bear the consequences.

MV-CB013-A0UM-S

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-CB013-A0UM-S

Model

Model	MV-CB013-A0UM-S
Name	1.3 megapixel USB 3.0 board-level Camera, black and white, M1, 2 port

Performance

Sensor Type	CMOS, global shutter
Pixel Size	4.8 μm×4.8 μm
Optical Format	1/2"
Resolution	1280×1024
Max. Frame Rate	201 fps @1280×1024 Mono 8
Dynamic Range	53 dB
SNR	40 dB
Gain	0 dB ~16 dB
Exposure Time	9 μs ~ 10 sec
Shutter Mode	Support automatic exposure, manual exposure, one-click exposure mode
Mono/Color	Black and white
Pixel Format	Mono 8/10/10Packed/12/12Packed
Binning	Support 1 × 1,2 × 2,4 ×4
Downsampling	Support 1× 1,2 × 2,4×4
Mirror	Support horizontal Mirror, vertical Mirror

Electrical

Data Interface	USB3.0
Digital I/O	2 §2-way configurable non-isolated IO (Line2,Line5)
Power Supply	Support USB Power Supply
Typical Power Consumption	1.6 W@5 VDC(USB Power Supply)

Mechanical

Lens Mount	M12-Mount
Dimensions	35 mm×35 mm×8.6 mm
Weight	About 30g
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~80%RH No condensation

General Specifications

Software	MVS or third-party Software compatible with the USB3 Vision protocol
Operating System	Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	RoHS,CE,FCC,KC
