Name: HIKROBOT CB Series Board-Level Cameras
Brand: HIKROBOT
SKU: MV-CB004-10GM-C
Availability: InStock

Product introduction

Functional characteristics

Supports automatic or manual adjustment of Gain, Exposure Time, white balance, Gamma, LUT correction, etc.
Color Camera is implanted with excellent image interpolation algorithms for better Color restoration
Via USB3.0 InterfacePower Supply and data transmission
Compatible with USB3 Vision protocol and GenlCamStandard, can be connected to third-party Software Platform

Ordering Model

MV-CB016-10UM-B

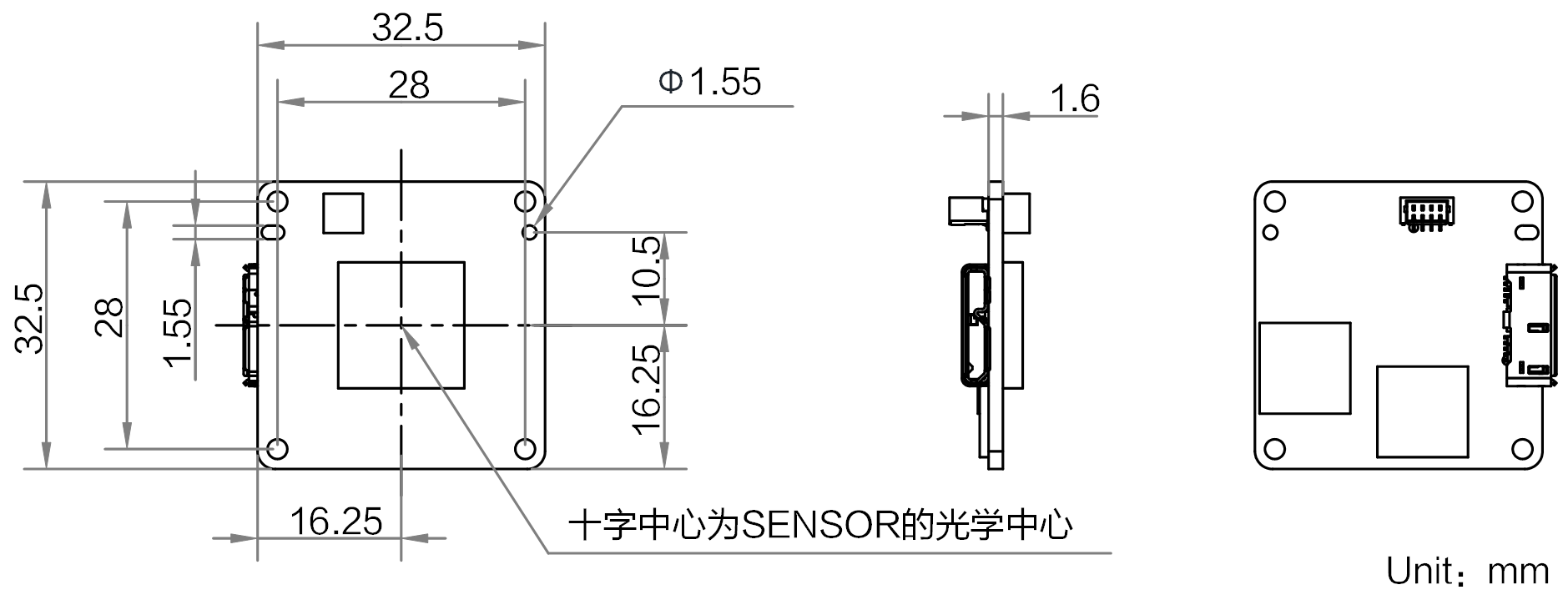

Dimensions

* Data involved in the product may cause Differences due to environmental factors. The company will not bear the consequences.

MV-CB016-10UM-B

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-CB016-10UM-B

Model

Model	MV-CB016-10UM-B

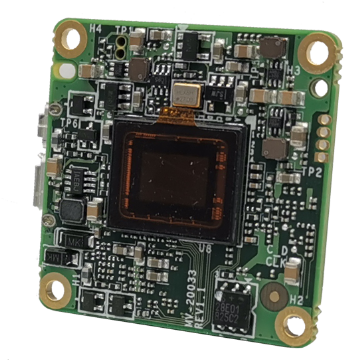

Name	1.6 megapixel USB3.0 board-level Camera, IMX273, black and white, bare board

Performance

Sensor Type	CMOS, global shutter
Sensor Model	Sony IMX273
Pixel Size	3.45 μm × 3.45 μm
Optical Format	1/2.9"
Resolution	1440 × 1080
Max. Frame Rate	165.4 fps@1440 ×1080 Mono 8(ADC12, default) 249.1 fps@1440 ×1080 Mono 8(ADC8)
Dynamic Range	71.5 dB
SNR	39.9 dB
Gain	0 dB ~ 17 dB
Exposure Time	Ultra-short exposure mode:1 μs ~ 14 μs Normal exposure mode:15 μs ~ 10 s
Shutter Mode	Support automatic exposure, manual exposure, and one-click exposure
Mono/Color	black and white
Pixel Format	Mono 8/10/10Packed/12/12Packed
Binning	Support 1 × 1, 2 × 2
Downsampling	Support 1 × 1, 2 × 2
Mirror	Support horizontal Mirror and vertical Mirror

Electrical

Data Interface	USB 3.0
Digital I/O	2 bidirectional configurable non-isolated IO(Line2,Line5)
Power Supply	Supports USB 3.0 Power Supply
Typical Power Consumption	1.5 W@5 VDC(USBPower Supply)

Mechanical

Lens Mount	no
Dimensions	32.5 mm × 32.5 mm × 1.6 mm(excluding Lens Mount)
Weight	about 10 g
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~80%RH non-condensing

General Specifications

Software	MVS or third-party Software compatible with the USB3 Vision protocol
Operating System	Windows XP/7/10/11 32/64bits,Linux 32/64bits
Protocol / Standard	USB3 Vision,GenlCam
Certification	CE,RoHS,KC
