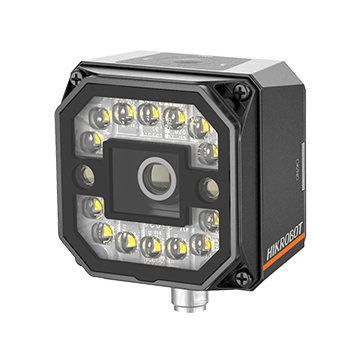

Name: HIKROBOT ID3000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID3013PM-06M-WBN
Availability: InStock

Product introduction

Functional characteristics

Built-in deep learning code reading algorithm, which can adapt to a variety of complex working conditions and is highly robust
Single Cables provides rich IOInterfaces, which can access multiple input and output signals
14 LED Composite Light Source, supports flexible grouping with
compatible polarization function, polarization and non-polarization modes can be quickly switched
Top ring Indicator and bilateral side waist line result Indicator, quick observation of working status
Built-in dual LEDAimer, Convenient installation and alignment

Ordering Model

MV-ID3013PM-15M-WBN

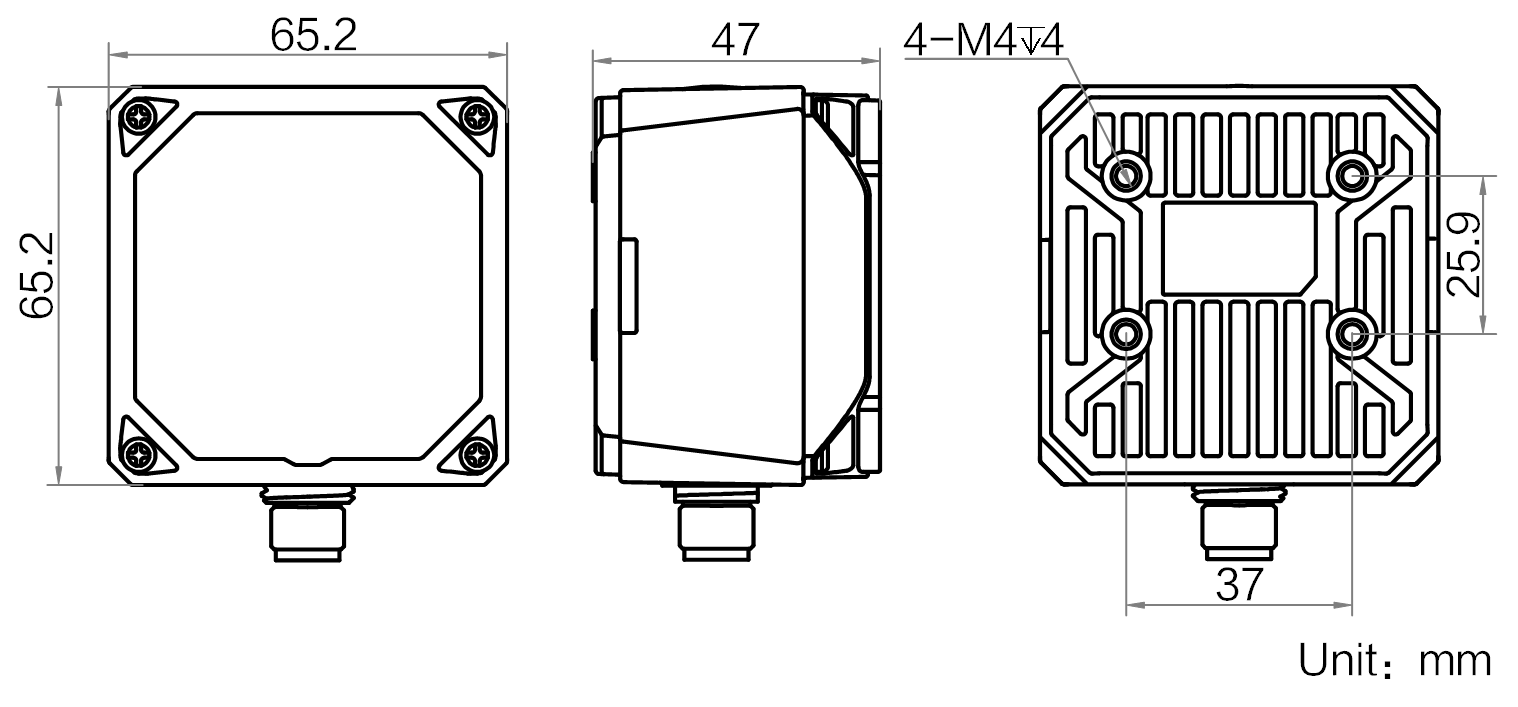

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID3013PM-15M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-ID3013PM-15M-WBN

Model

Model	MV-ID3013PM-15M-WBN
Name	15mmLenses130WResolution Industrial Intelligent Code Reader (V2.0)

Performance

Barcode Type	One-dimensional codes:Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc. QR codes:QR Code(including GS1-QR), Data Matrix(including GS1-DM), MicroQR, AZTEC, HanXin, Maxi Code Stacking codes:PDF417, MicroPDF417
Max. Processing Frame Rate	60 fps
Max. Reading Speed	84 codes/second
Sensor	Global shutter, black and white, 1/2.7 ", 4 μm × 4 μm
Resolution	1280 × 1024
Exposure Time	35 μs ~ 1 sec
Gain	0 dB ~ 28 dB

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP,FINS, Modbus RTU
Digital I/O	V3.0 Version:17-pin M12Interface Provides Power Supply source and I/O: Contains 3 isolated inputs (LineIn 0/1/2), 3 isolated outputs (LineOut 3/4/5), 1 RS-232, supports triggering of the device through the top button V2.0 version: The 17-pin M12Interface provides Power Supply sources and I/O: contains 3 non-isolated inputs (LineIn0/1/2), 3 non-isolated outputs (LineOut3/4/5), 1 RS-232, supports triggering the device via the top button
Power Supply	24 VDC
Power Consumption	Average Power Consumption:9 W@24 VDC(enabling built-in fill light);Max. Power Consumption: 48W@24VDC (enable built-in fill light)

Mechanical

Focal Length	14.8 mm
Field of View	19° (H) × 15° (V)
Lens Mount	M12-Mount, mechanical focus
Lens Cover	Semi-polarized Lens Cover, optional transparent, fully polarized, diffuse, infrared long-wave Lens Cover
Light Source	white light, optional red, blue, infrared, ultraviolet
Indicator	Power Supply Indicator PWR, Network Indicator LNK, Status Indicator STS, Result Display Indicator OK/NG
Housing Material	ADC12
Dimensions	65.2 mm × 65.2 mm × 47 mm
Weight	Approximately 280 g
IP Rating	IP67 (With proper Lenses waterproof cover installed)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH No condensation
Vibration Resistance	10 Hz ~ 55 Hz, full amplitude 1.5 mm X, Y, Z for 2 hours in each direction (IEC 60068-2-6: 2007\GB/T2423.10-2019 )
Shock Resistance	30 g / 11 ms, half sine wave, six axes, 500 shocks in each axial direction (IEC 60068-2-27\GB/T 2423.5-2019 )
