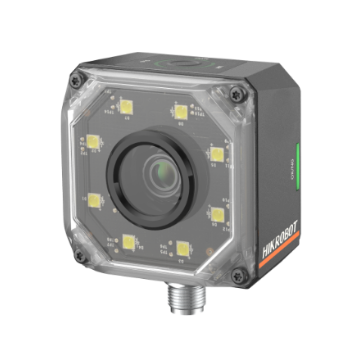

Name: HIKROBOT ID3000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID3013PM-06M-WBN
Availability: InStock

Product introduction

Functional characteristics

Excellent Sensor selection, high-speed acquisition of high-quality images
Single Cables provide rich IOInterface, can access multiple input and output signals
External waterproof debugging button, support external manual triggering
Top ring Indicator, quick observation of working status
Bilateral side waist line result Indicator, multi-angle viewing
Modular Light Source design, controllable shunt, Convenient replacement

Ordering Model

MV-ID3013PM-15M-WBN-8

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID3013PM-15M-WBN-8

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-ID3013PM-15M-WBN-8

Model

Model	MV-ID3013PM-15M-WBN-8
Name	8 lamp beads 15mmLenses130WResolution Industrial Intelligent Code Reader (V2.0)

Performance

Barcode Type	One-dimensional codes:Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc. QR codes:QR Code(including GS1-QR), Data Matrix(including GS1-DM), MicroQR, AZTEC, HanXin, Maxi Code Stacking codes:PDF417, MicroPDF417
Max. Processing Frame Rate	60 fps
Max. Reading Speed	84 codes/second
Sensor	Global shutter, black and white, 1/2.7 ", 4 μm × 4 μm
Resolution	1280×1024
Exposure Time	35 μs ~ 1 sec
Gain	0 dB ~ 28 dB

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS, Modbus RTU
Digital I/O	V3.0 Version:17-pin M12Interface Provides Power Supply source and I/O: Contains 3 isolated inputs (LineIn 0/1/2), 3 isolated outputs (LineOut 3/4/5), 1 RS-232, supports triggering of the device through the top button V2.0 version: The 17-pin M12Interface provides Power Supply source and I/O: contains 3 non-isolated inputs (LineIn0/1/2), 3 non-isolated outputs (LineOut3/4/5), 1 RS-232, supports triggering of the device via the top button
Power Supply	24 VDC
Power Consumption	Average Power Consumption: 9W@24VDC (enables built-in fill light) Max. Power Consumption: 48W@24VDC (enabling built-in fill light)

Mechanical

Focal Length	14.8 mm
Field of View	19° (H) × 15° (V)
Lens Mount	M12-Mount, mechanical focus
Lens Cover	Transparent Lens Cover, optional full-polarized Lens Cover
Light Source	Concentrated white light, optional Concentrated red/blue/infrared, wide-angle white/blue/red light
Indicator	Power Indicator PWR, Network Indicator LNK, Status Indicator STS, Result Display Indicator OK/NG
Housing Material	ADC12
Dimensions	65.2 mm×65.2 mm×42 mm
Weight	Approximately 250 g
IP Rating	IP67 (With proper Lenses waterproof cover installed)
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~95%RH No condensation
Vibration Resistance	10 Hz ~ 55 Hz, full amplitude 1.5 mm X, Y, Z for 2 hours in each direction (IEC 60068-2-6: 2007\GB/T2423.10-2019 )
Shock Resistance	30 g / 11 ms, half sine wave, six axes, 500 shocks in each axial direction (IEC 60068-2-27\GB/T 2423.5-2019 )
