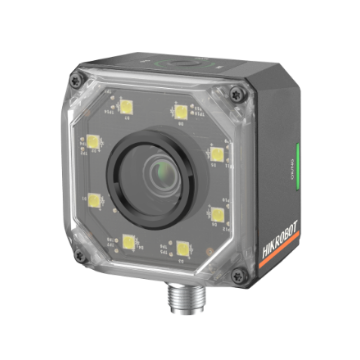

Name: HIKROBOT ID3000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID3013PM-06M-WBN
Availability: InStock

Product introduction

Functional characteristics

Excellent Sensor selection, high-speed acquisition of high-quality images
Single Cables provide rich IOInterface, can access multiple input and output signals
External waterproof debugging button, support external manual triggering
Top ring Indicator, quick observation of working status
Bilateral side waist line result Indicator, multi-angle viewing
Modular Light Source design, controllable shunt, Convenient replacement

Ordering Model

MV-ID3016PM-06M-WBN

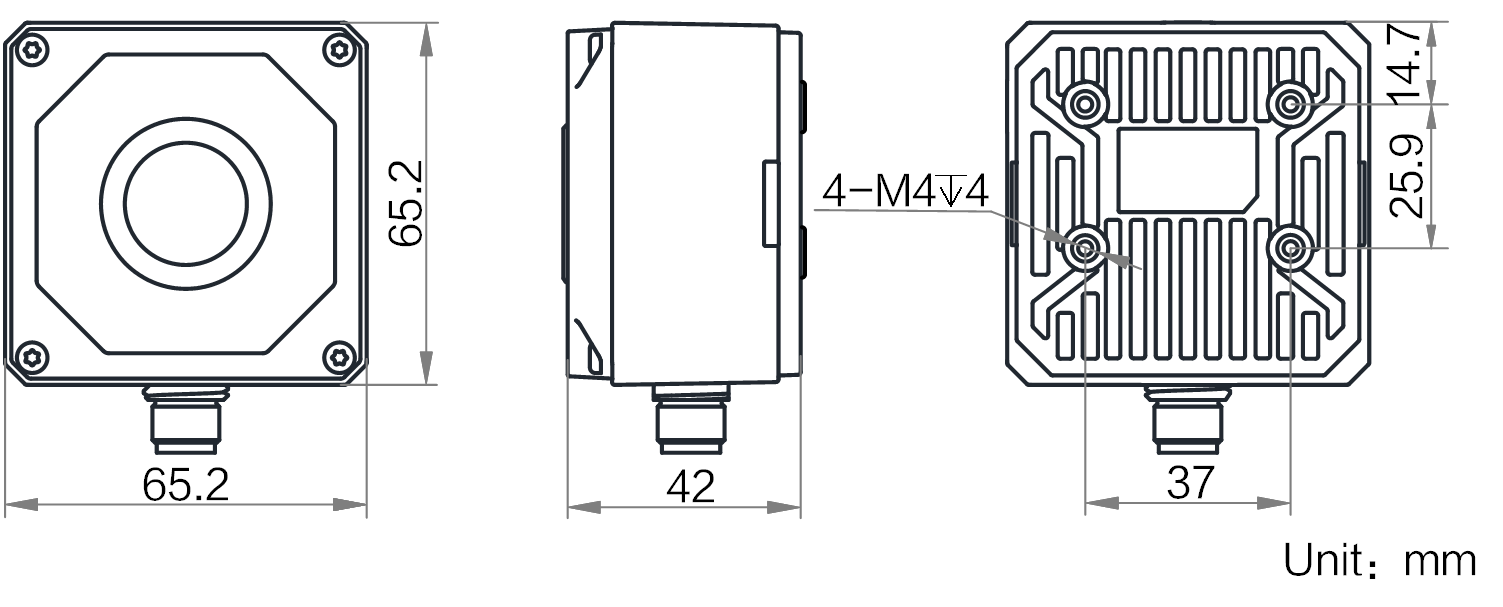

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID3016PM-06M-WBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-ID3016PM-06M-WBN

Model

Model	MV-ID3016PM-06M-WBN
Name	6mmLenses160WResolution Industrial Intelligent Code Reader (V2.0)

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,CodaBar,EAN8,EAN13,UPCA,UPCE, ITF14, ITF25,Matrix 25,MSI,China Post,Code 11,Industrial 25,Pharmacode, etc. QR Code:QR Code(including GS1-QR),Data Matrix(including GS1-DM),MicroQR, AZTEC,HanXin,Maxi Code Stacking codes:PDF417,MicroPDF417
Max. Processing Frame Rate	60 fps
Max. Reading Speed	84 codes/second
Sensor	Global shutter, black and white, 1/2.9 ", 3.45 μm×3.45 μm
Resolution	1408 × 1200
Exposure Time	16 μs ~ 1 sec
Gain	0 ~ 45 dB

Electrical

Data Interface	Fast Ethernet(100 Mbit/s)
Communication Protocol	SmartSDK,TCP Client,Serial,FTP,TCP Server,Profinet,Melsec/SLMP,Ethernet/IP,ModBus,UDP,FINS,Modbus RTU,KV
Digital I/O	V3.0 Version:17-pin M12Interface Power Supply source and I/O: Contains 3 isolated inputs (LineIn 0/1/2), 3 isolated outputs (LineOut 3/4/5), 1 RS-232, supports triggering of the device via the top button Version 2.0:17-pin M12Interface provides Power Supply source and I/O: contains 3 non-isolated inputs (LineIn0/1/2), 3 non-isolated outputs (LineOut3/4/5), 1 RS-232, supports triggering of the device via the top button
Power Supply	24 VDC
Power Consumption	Average Power Consumption:9 W@24 VDC(enabling built-in fill light);Max. Power Consumption: 48W@24VDC (enabling built-in fill light)

Mechanical

Focal Length	6 mm
Field of View	44° (H) × 32° (V)
Lens Mount	M12-Mount, mechanical focus
Lens Cover	transparent Lens Cover, optional fully polarized Lens Cover
Light Source	white light, optional red/blue/infrared
Indicator	Power Supply Indicator PWR, Network Indicator LNK, Status Indicator STS, Result displays Indicator OK/NG
Housing Material	ADC12
Dimensions	65.2 mm×65.2 mm×47 mm
Weight	About 280g
IP Rating	IP67 (With proper Lenses waterproof cover installed)
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~95%RH No condensation
Vibration Resistance	10 Hz ~ 55 Hz, full amplitude 1.5 mm X, Y, Z for 2 hours in each direction (IEC 60068-2-6: 2007\GB/T2423.10-2019 )
Shock Resistance	30 g / 11 ms, half sine wave, six axes, 500 shocks in each axial direction (IEC 60068-2-27\GB/T 2423.5-2019 )
