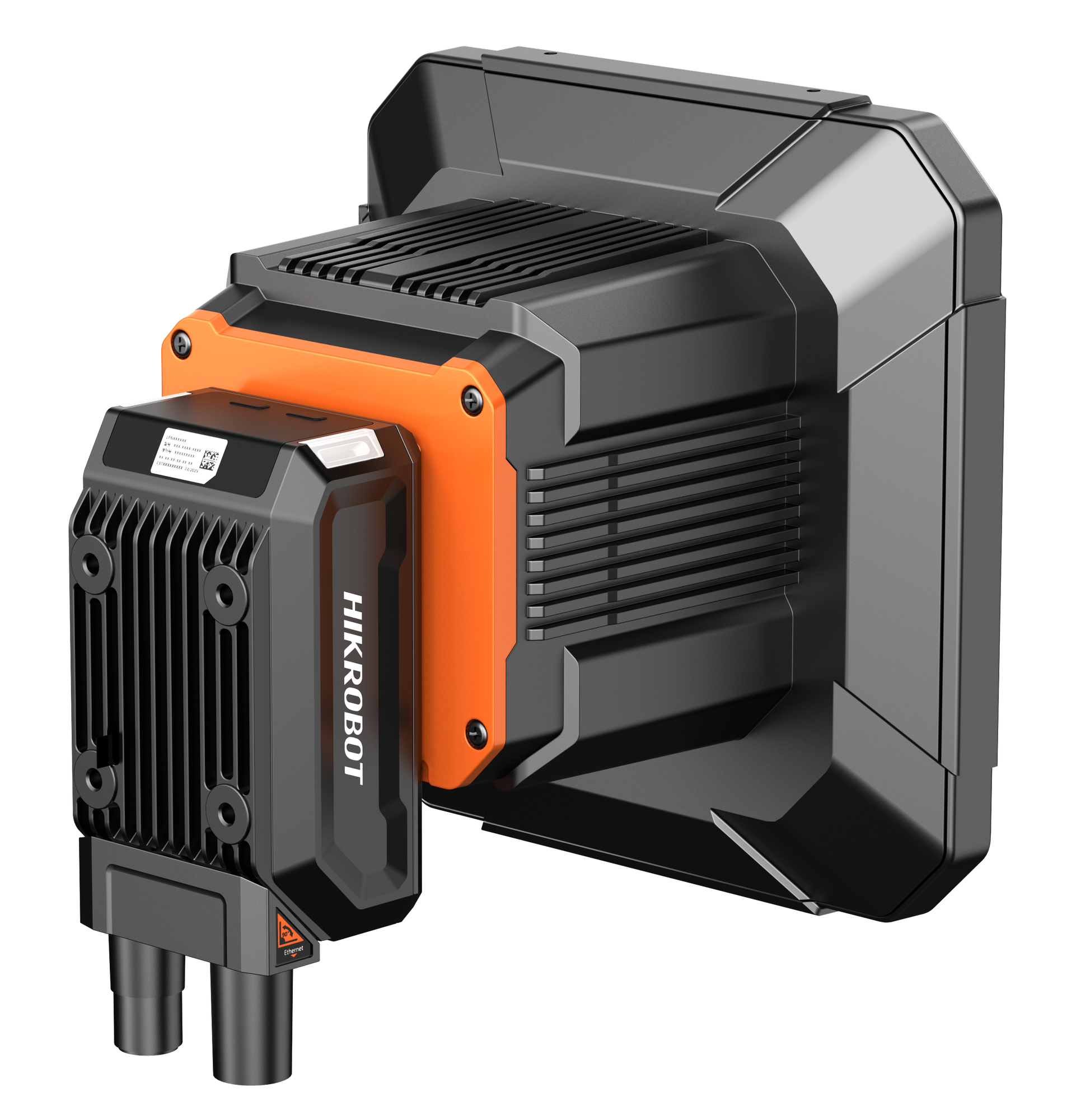

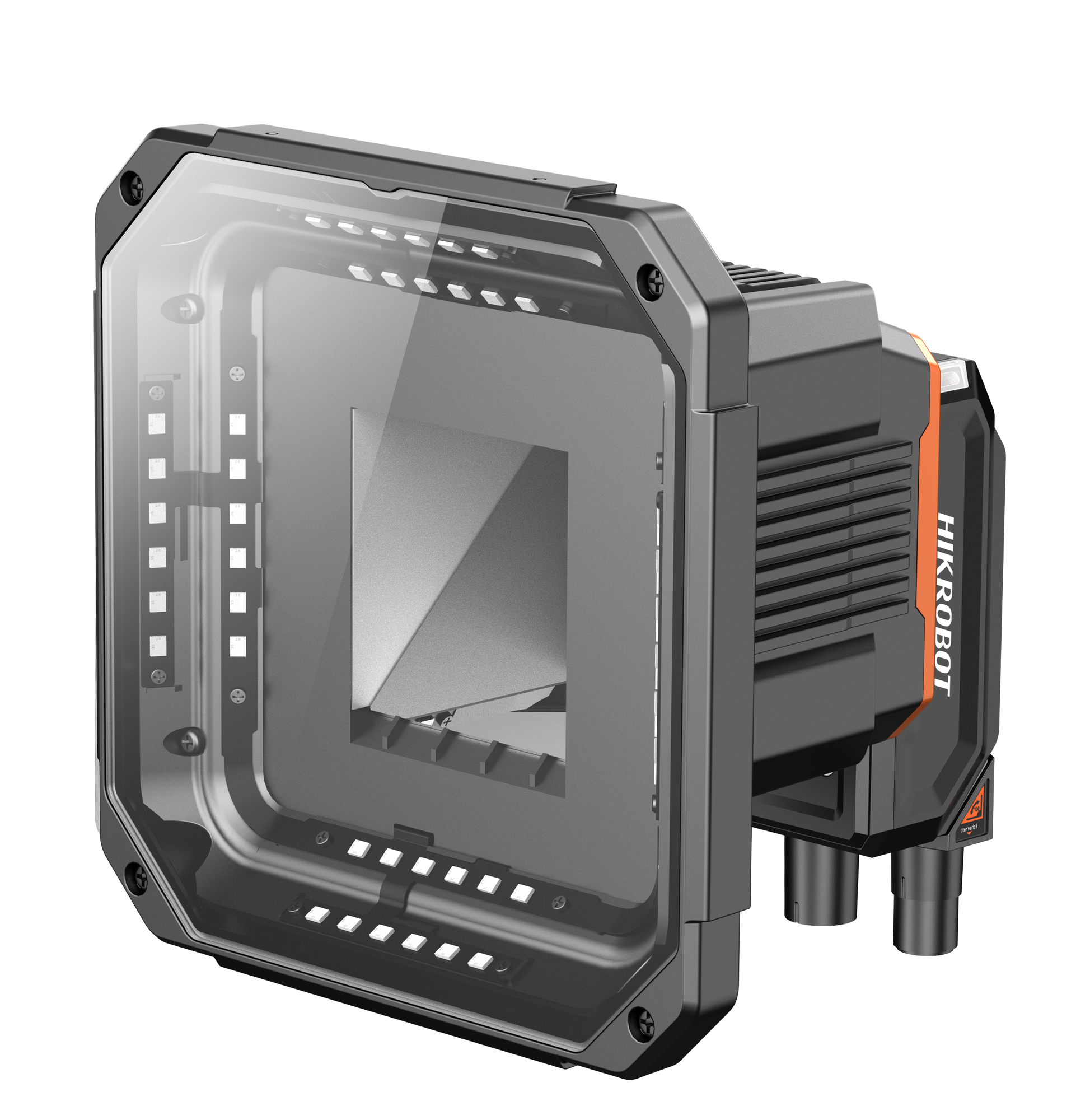

Name: HIKROBOT ID5000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID5050XM-08M-RBN
Availability: InStock

Product introduction

Functional characteristics

Multi-scenario compatibility, using professional Light Source design to accurately evaluate barcode and QR code levels on different material surfaces
Standardized quality verification, automatically generating barcode rating reports based on ISOStandard parameters
Intelligent quality control, based on rating reports and code reading statistical results, provides customers with reference, reduces operation and production interruptions caused by barcode quality issues
Supports multi-code rating, including Code128, Code39, ITF25, EAN8, EAN13, UPCA, ITF14, DM, QR

Ordering Model

MV-ID5050XM-25M-BVS

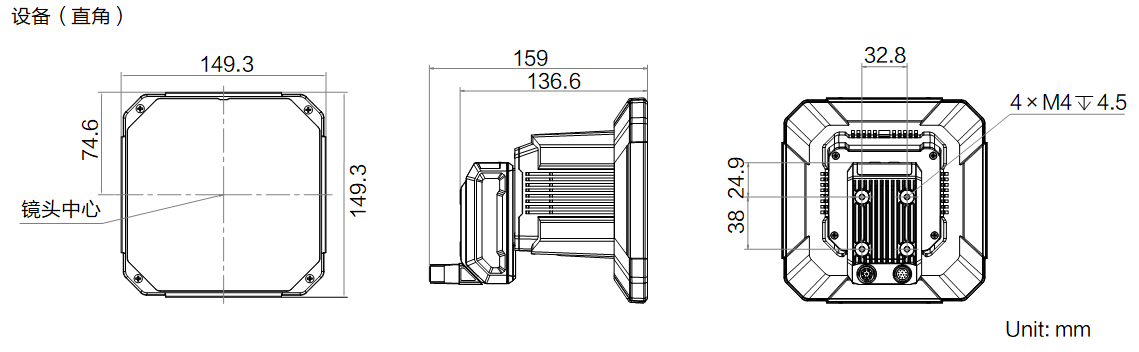

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-ID5050XM-25M-BVS

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

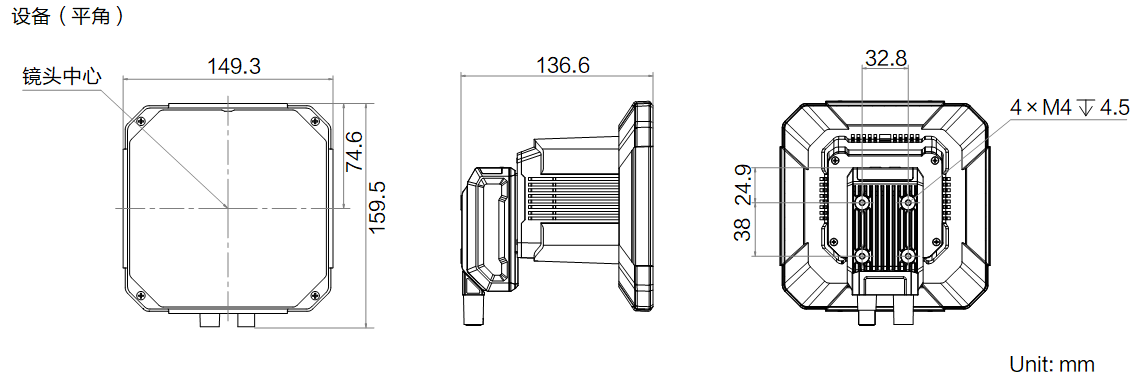

Dimensions

Detailed parameters

Ordering Model MV-ID5050XM-25M-BVS

Model

Model	MV-ID5050XM-25M-BVS
Name	ID5050mini, 500WResolution, 25 mm Focal Length Rating Dedicated Model

Performance

Barcode Type	One-dimensional Code:Code128, Code39, ITF25, EAN8, EAN13, UPCA, ITF14 Matrix QR codes:QR Code(including GS1-QR), Data Matrix(including GS1-DM), MicroQR, AZTEC, HanXin, etc. Stacked QR Code:PDF417, MicroPDF417
Max. Processing Frame Rate	60 fps
Max. Reading Speed	120 codes/s
Working Distance	40 mm
Field of view	32 × 27 mm
X-dimension minimum	1D:0.06mm(2.5mil) 2D:0.09mm(3.5mil)
Sensor	Global shutter, black and white, 1/1.45", 3.45 μm × 3.45 μm
Resolution	2432 × 2048
Exposure Time	6 μs ~ 3 ms
Gain	0 dB ~ 37 dB
Light Source type	660 nm,30°, 1 quadrant, 2 quadrant, 4 quadrant 660 nm,45°, 4 quadrants 660 nm,90°

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, ModBus RTU, UDP, FINS
Digital I/O	12-pin M12Connector provides Power Supply source and I/O, including 3 optocoupler isolated inputs (LineIn 0/1/2), 3 optocoupler isolated outputs (LineOut 3/4/5), 1 RS-232 input, 1 RS-232 output Supports body Display with button trigger device
Power Supply	24 ± 10% VDC
Power Consumption	Average Power Consumption:7.5 W@24VDC Max. Power Consumption:36 W@24VDC

Mechanical

Focal Length	25 mm
Lens Mount	M12-Mount, mechanically focusing
Lens Cover	High-transparency flat glass
Indicator	Multi-angle body Indicator
Housing Material	Aluminum alloy
Dimensions	Straight angle:159.5 mm × 149.3 mm × 136.6 mm Right angle:149.3 mm × 149.3 mm × 159 mm
Weight	968 g
IP Rating	IP67 (With proper Lenses waterproof cover installed)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH No condensation
Vibration Resistance	Bare metal, 10 Hz ~ 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z (IEC 60068-2-6: 2007\GB/T 2423.10-2019)
Shock Resistance	Bare metal, 30 g / 11 ms, half sine wave, six axes, 500 impacts in each axial direction (IEC 60068-2-27\GB/T 2423.5-2019)
