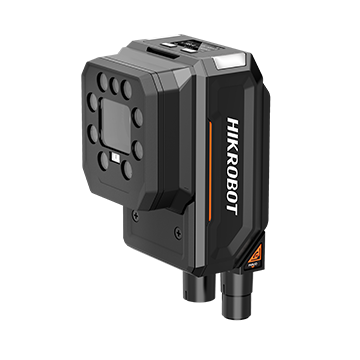

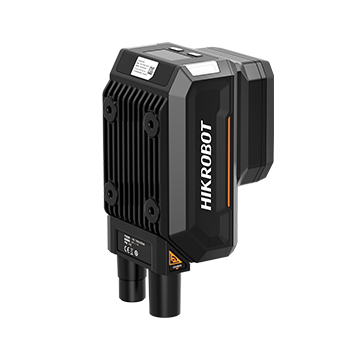

Name: HIKROBOT ID5000 Series Industrial Code Readers
Brand: HIKROBOT
SKU: MV-ID5050XM-08M-RBN
Availability: InStock

Product introduction

Functional characteristics

Built-in deep learning code reading algorithm, which can adapt to a variety of complex working conditions and is highly robust
The screen and buttons are linked to easily realize basic operations such as automatic tuning, parameter configuration, and system information preview.
Multi-sided visual status Indicator, the code reading status is clear at a glance
Rotatable tail line outlet mode, compact body, and narrow space flexibly respond to
Light Source multiplex control, automatically switching optimal lighting according to workpiece material
Rich IOInterface, allowing access to multiple inputs, Output signal
A variety of high-precision sensors are supported, making installation positions easy to copy/restore
Rich accessories, some devices support extended flash Light Source, multicolored Light Source, wafer Light Source, etc., easily solving industry pain points
Support HDR function, higher image contrast
Provide a variety of Lens Mount, optional mechanical focusing, liquid focusing or C-port Lenses, meeting the needs of different application scenarios
Multicolored Light SourceModel supports red/green/blue/white four-color Light Source,

Ordering Model

MV-ID5050XM-25M-RBN

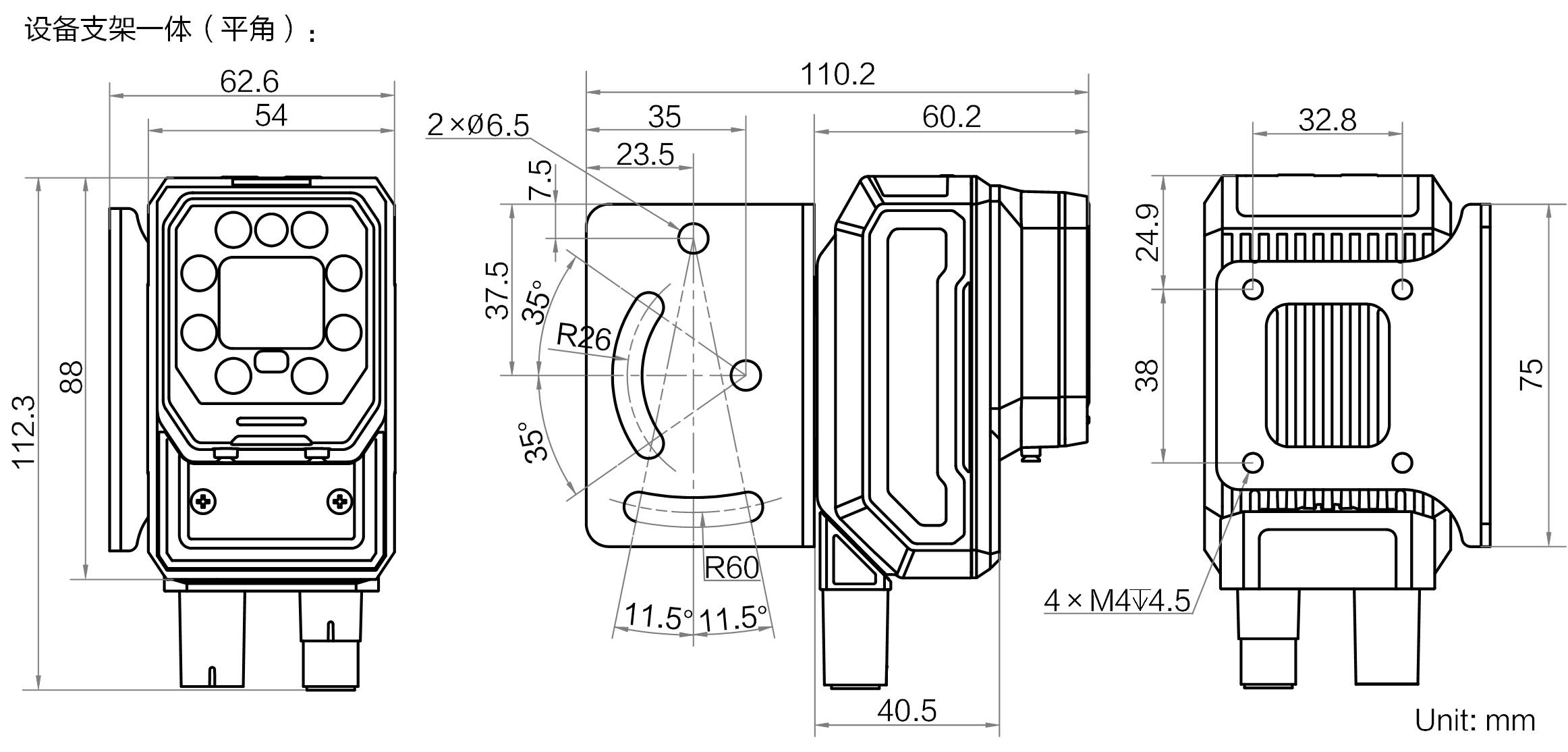

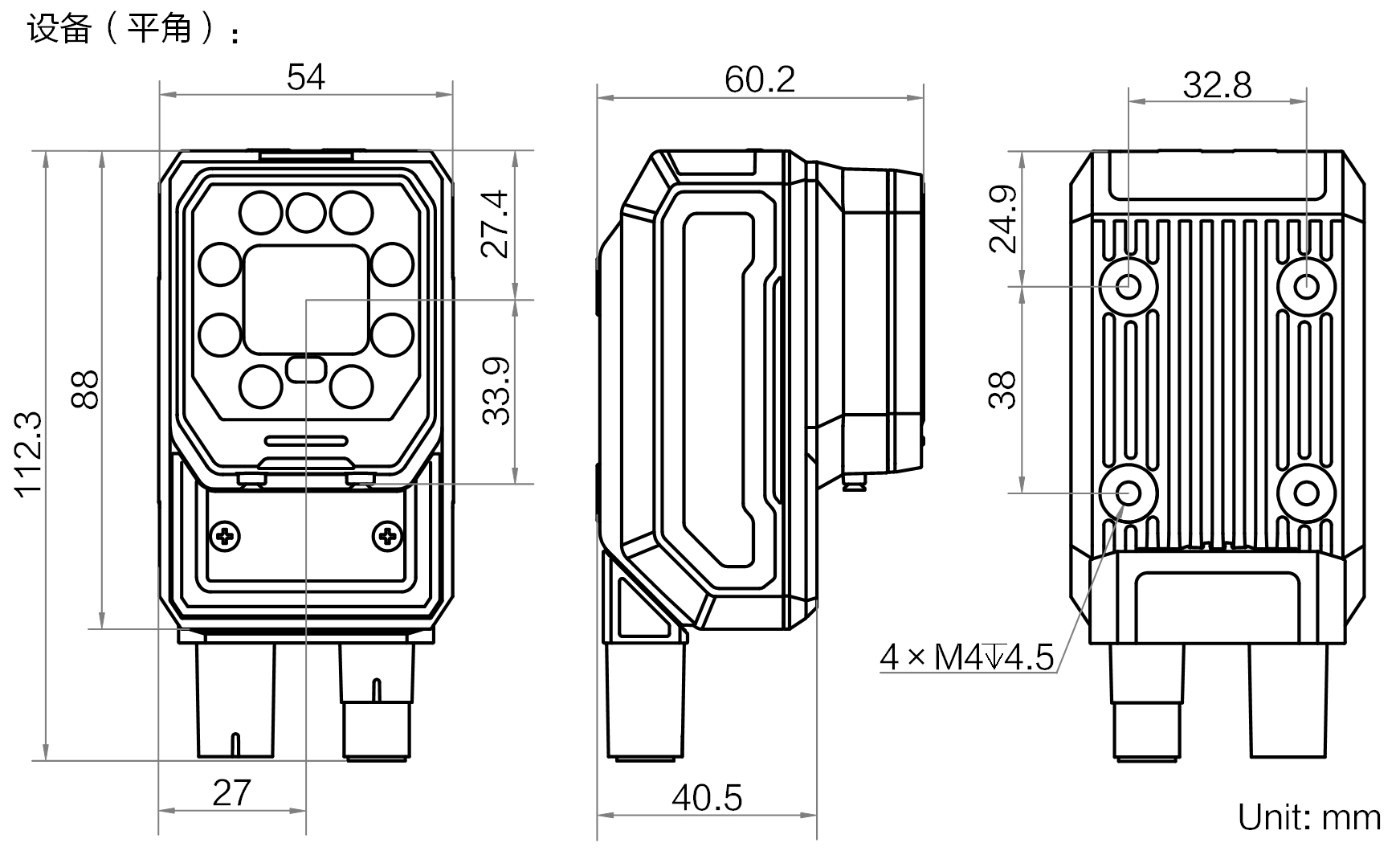

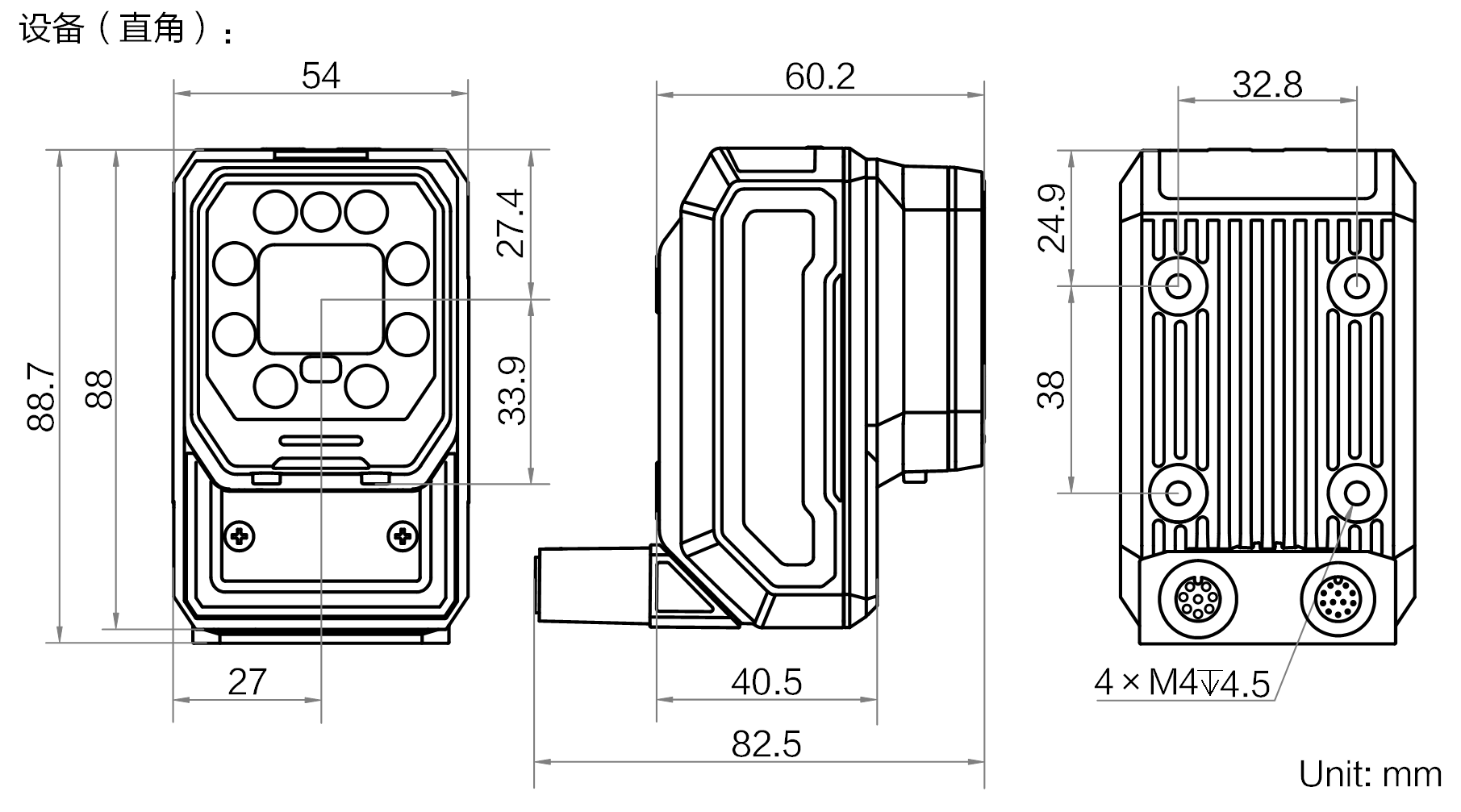

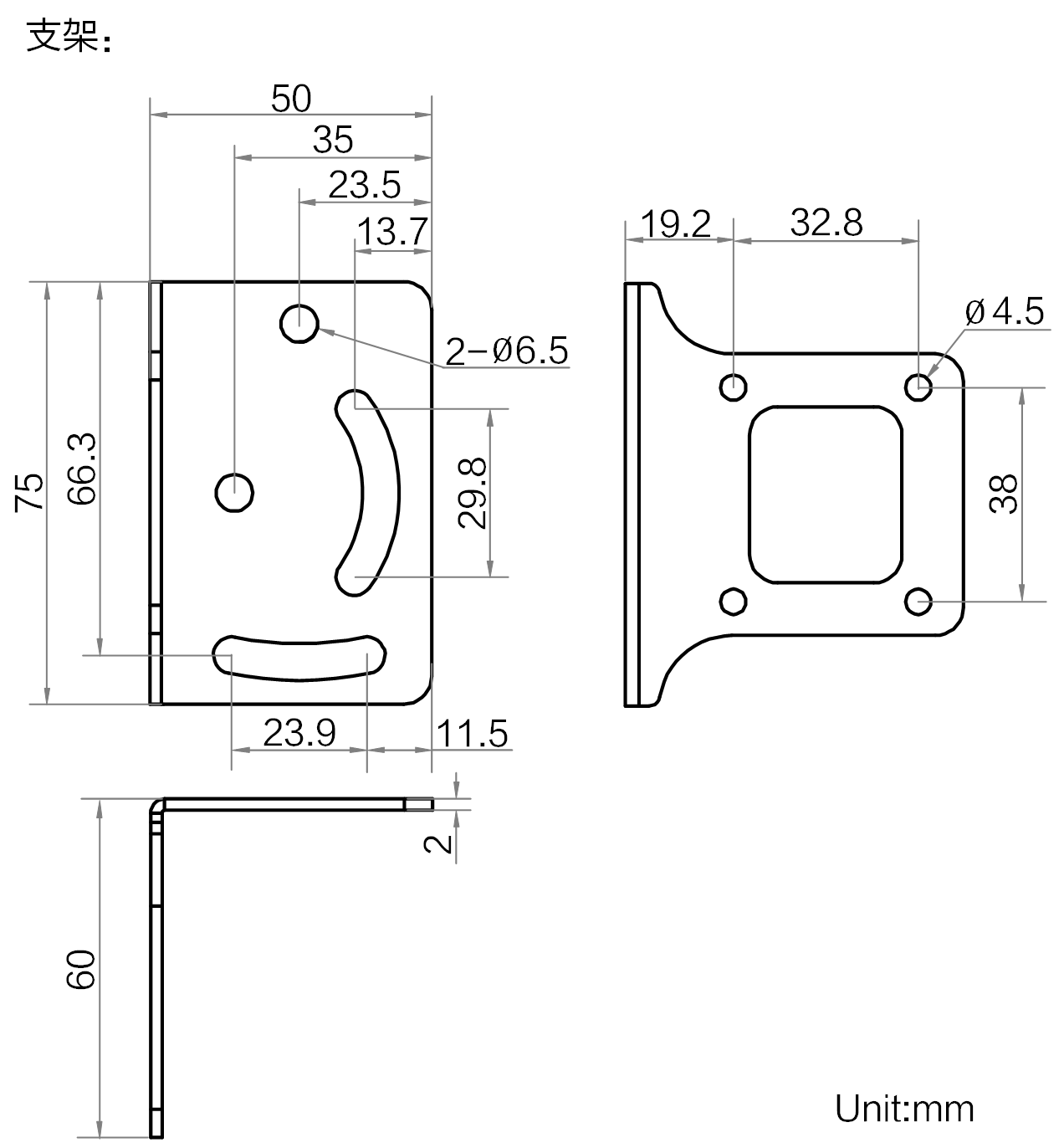

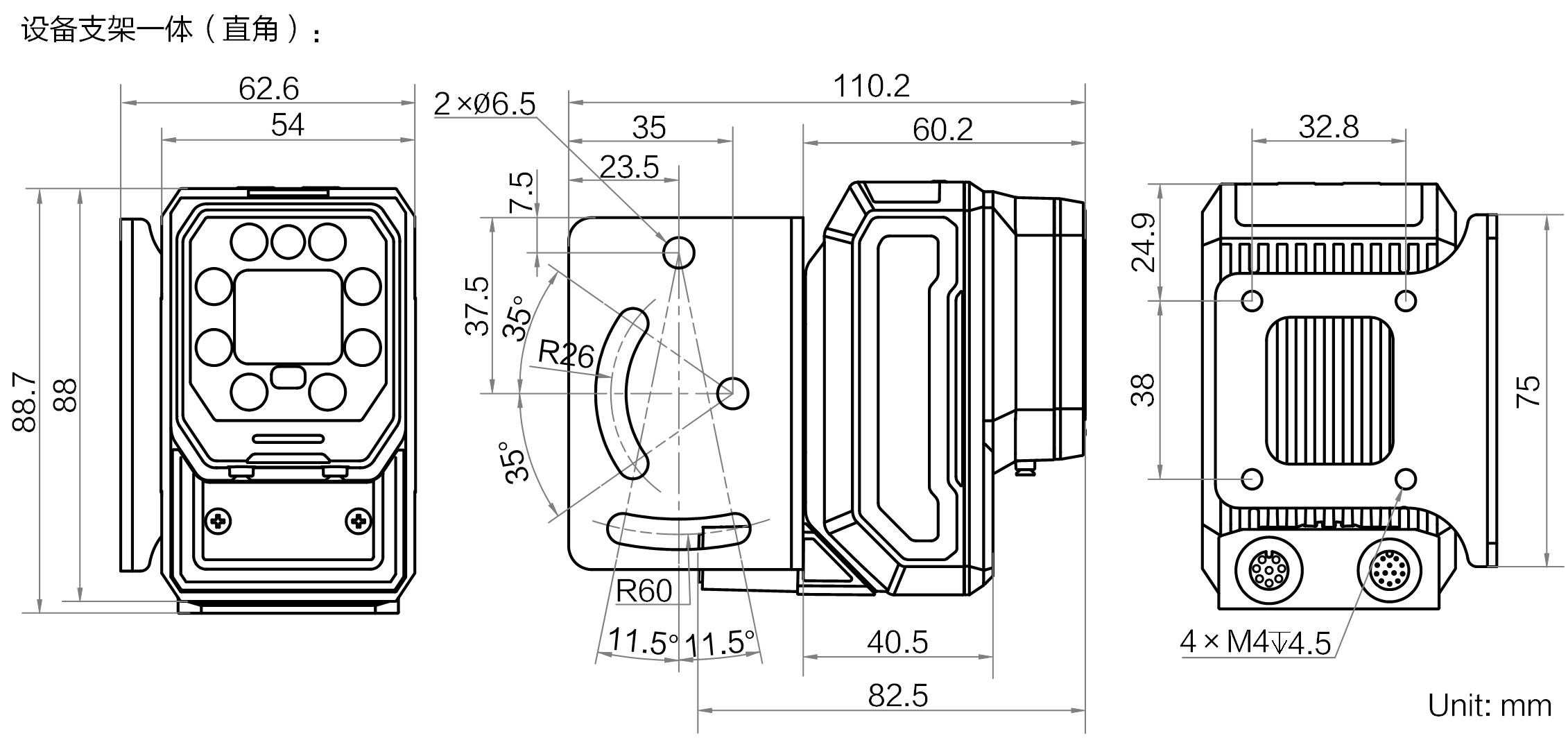

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-ID5050XM-25M-RBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-ID5050XM-25M-RBN

Model

Model	MV-ID5050XM-25M-RBN
Name	ID5050mini, 500WResolution, 25 mm Focal Length, Red Light Full Transparency Model

Performance

Barcode Type	One-dimensional codes:Code 39, Code 93, Code 128(including GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode, etc. Matrix QR codes:QR Code(including GS1-QR), Data Matrix(including GS1-DM), MicroQR, AZTEC, HanXin, etc. Stacked QR codes:PDF417, MicroPDF417
Max. Processing Frame Rate	92 fps
Max. Reading Speed	120 codes/second
Sensor	Global shutter, black and white, 1/1.45", 3.45 μm × 3.45 μm
Resolution	2432 × 2048
Exposure Time	38 μs ~ 3 ms
Gain	0 dB ~ 37 dB

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS, ModBus RTU
Digital I/O	12-pin M12 Connector provides Power Supply source and I/O, including 3 optocoupler isolated inputs (LineIn0/1/2), 3 optocoupler isolated outputs (LineOut 3/4/5), 1 RS-232 input, 1 RS-232 output M12 and D14Interface devices support body Display with button triggering;CInterface devices support body display with button triggering and one-button tuning
Power Supply	24±10% VDC
Power Consumption	Average Power Consumption: 11W@24VDC (enable built-in fill light) Max. Power Consumption: 36W@24VDC (enabling built-in fill light)

Mechanical

Focal Length	25 mm
Lens Mount	M12-Mount, mechanical focus
Lens Cover	Semi-polarized Lens Cover, optional transparent and fully polarized
Light Source	Red Light Source, optional white, blue or infrared light
Indicator	Multi-angle body Indicator
Housing Material	Metal §47 Straight angle §:112.3 mm × 54 mm × 60.2 mm Right angle:88.7 mm × 54 mm × 82.5 mm
Dimensions	Flat angle:112.3 mm × 54 mm × 60.2 mm Right angle:88.7 mm × 54 mm × 82.5 mm
Weight	Approximately 405 g
IP Rating	IP67 (With proper Lenses waterproof cover installed)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95% RH No condensation
Vibration Resistance	Bare metal, 10 Hz ~ 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z (IEC 60068-2-6: 2007\GB/T 2423.10-2019)
Shock Resistance	Bare metal, 30 g / 11 ms, half sine wave, six axes, 500 impacts in each axial direction (IEC 60068-2-27\GB/T 2423.5-2019)
