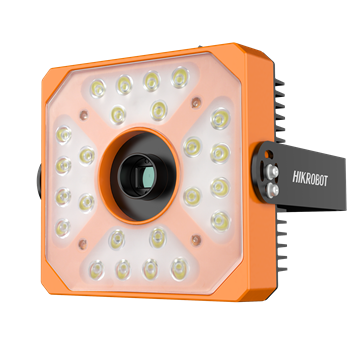

Name: HIKROBOT IDS Series Logistics Code Readers
Brand: HIKROBOT
SKU: MV-PD010003-06M-12C
Availability: InStock

Product introduction

Functional characteristics

Built-in deep learning code reading algorithm, which can effectively read one-dimensional and two-dimensional codes of a variety of code systems. It is highly robust
realizes image acquisition, data processing, and result output functions in one
Integrated Mechanical design, fast installation
Concentrated light, high luminous efficiency
Adopt high-end materials, professional design, long life, stable Performance, and strong environmental adaptability
Seamless docking with commonly used express Logistics management systems, Provide real-time and effective data to Logistics and production companies

Ordering Model

MV-IDS006M-12C-C

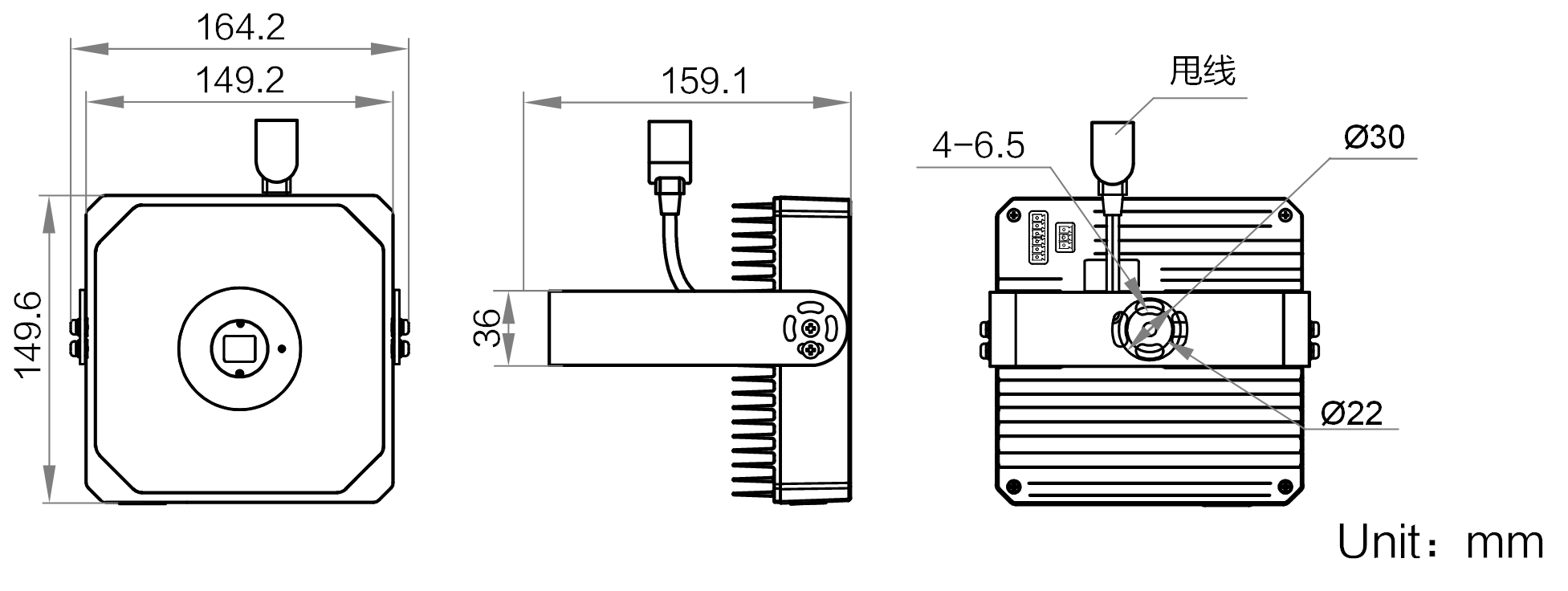

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IDS006M-12C-C

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IDS006M-12C-C

Model

Model	MV-IDS006M-12C-C
Name	6 Megapixel Logistics Code Reader

Performance

Barcode Type	One-dimensional codes:Code 128, Code 39, Code 93, Codabar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE QR Code, Data Matrix
Max. Frame Rate	28 fps
Max. Reading Speed	84 codes/s
Focal Length	12 mm
Optimal Working Distance	1050 mm
Field of View	650 mm × 440 mm@10 mil
Depth of Field	600 mm
Resolution	3072 × 2048
Exposure Time	48 μs ~ 1 sec
Gain	0 ~ 40 dB
Aperture	F2.4 ~ F16
Central Illuminance	11000 lux@1000 mm
Uniformity	0.53
Luminous Flux	5200 lm
Light SourceWavelength	420 ~ 730 nm
Color Temperature	5700 K
Mono/Color	Black and White
Pixel Format	Mono8

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	6-pin Green Terminals Power Supply and I/O Interface, including 1 optocoupler isolated input (LineIn 0), 1 optocoupler isolated output (LineOut 3), 1 non-isolated optional input/output (LineIn 2/Lineout 4) RS-232 Serial Port
Power Supply	24 VDC
Max. Power Consumption	53 W@ 24 VDC

Mechanical

Dimensions (excluding Lenses)	164.2 mm × 149.6 mm × 159.1 mm
Weight (excluding Lenses) § 57§ Approx. 990 g	Approximately 990 g
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~70 °C
Humidity	20%~80%RH Non-condensing
