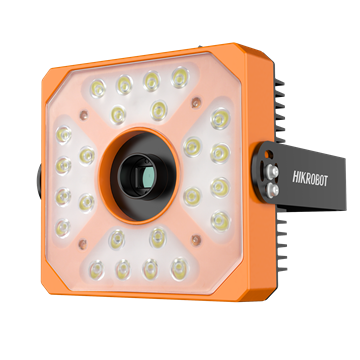

Name: HIKROBOT IDS Series Logistics Code Readers
Brand: HIKROBOT
SKU: MV-PD010003-06M-12C
Availability: InStock

Product introduction

Functional characteristics

Built-in deep learning code reading algorithm can effectively read one-dimensional and two-dimensional codes in a variety of code systems. It is highly robust
realizes image acquisition, data processing, and result output functions in one
Supports OCR character recognition of express face single three-segment codes, with high accuracy
Integrated Mechanical design, fast installation
Concentrated light, high luminous efficiency
High-end materials, professional design, long life, stable Performance, Strong environmental adaptability
Seamless connection with commonly used express Logistics management systems, providing Logistics and production companies with real-time and effective data

Ordering Model

MV-IDS012M-16C-OCR

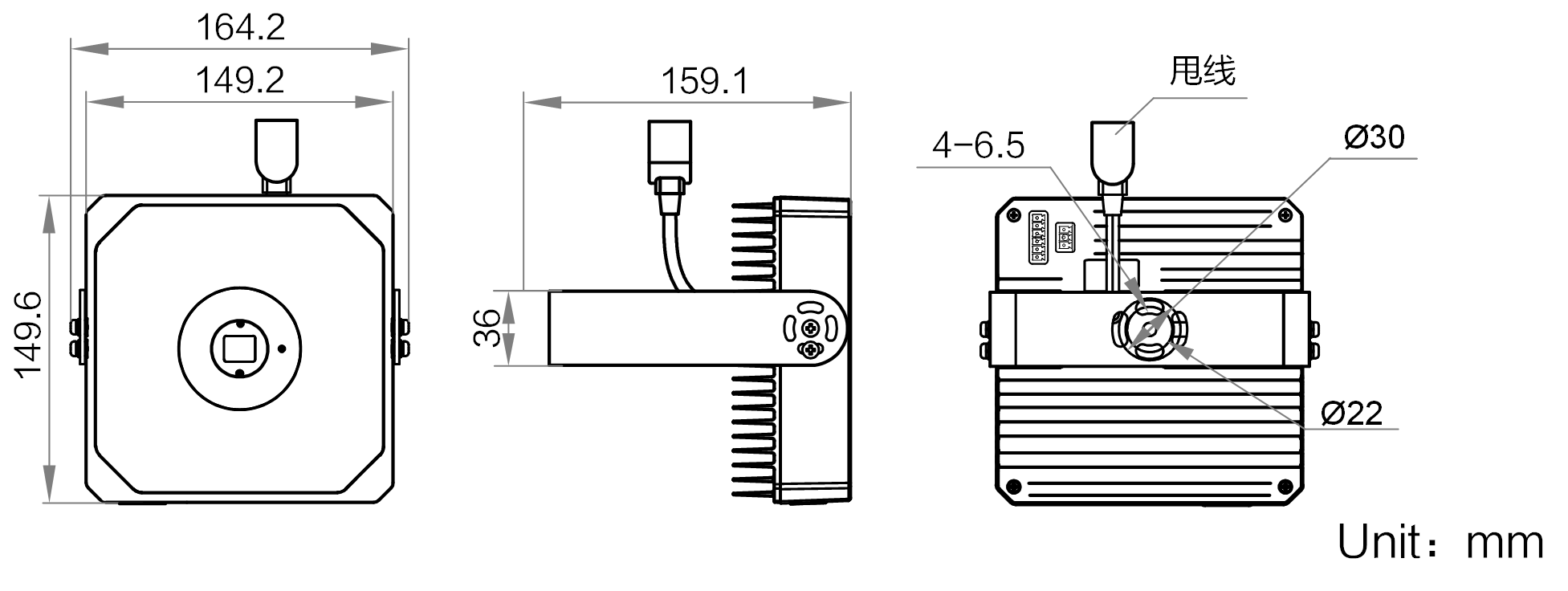

Dimensions

* The data involved in the product may cause Differences due to environmental and other factors. The company will not bear the consequences arising therefrom.

Ordering Model

MV-IDS012M-16C-OCR

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IDS012M-16C-OCR

Model

Model	MV-IDS012M-16C-OCR
Name	12-megapixel Logistics Code Reader-Including OCR

Performance

Barcode Type	One-dimensional codes:Code 128, Code 39, Code 93, Codabar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE QR Code:QR Code, Data Matrix, PDF417
Max. Frame Rate	Reading code:20 fps Code reading +OCR:3 fps
Focal Length	16 mm
Optimal Working Distance	1870 mm
Field of view	870 mm × 635 mm@ 10 mil
Depth of Field	700 mm
Resolution	3968 × 3000
Exposure Time	48 μs ~ 0.5 sec
Gain	0 ~ 40 dB
Aperture	F2.4 ~ F16
Central Illuminance	11000 lux @ 1000 mm
Uniformity	0.56
Luminous flux	5200 lm
Light SourceWavelength	420 nm ~ 730 nm
Color Temperature	6500 K
Mono/Color	Black and White
Pixel Format	Mono 8

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	6-pin green terminal provides the Power Supply source and I/O Interface, including 1 optocoupler isolated input (LineIn 0), 1 optocoupler isolated output (LineOut 3), 1 non-isolated configurable input/output (LineIn 2/Lineout 4) 3-Pin green terminal provides RS-232 Serial Port
Power Supply	24 VDC
Max. Power Consumption	53 W@ 24 VDC

Mechanical

Dimensions (excluding Lenses)	164.2 mm × 149.6 mm × 159.1 mm
Weight (excluding Lenses)	Approximately 990 g
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~80%RH Non-condensing
