Name: HIKROBOT Frame Grabbers
Brand: HIKROBOT
SKU: MV-GC1002-V2
Availability: InStock

Product introduction

Functional characteristics

Support GigE Vision protocol, the maximum rate of a single network port can reach 1Gbps
Support PoE, and a single channel can provide up to 15W
Bus Indicator and Channel Indicator real-time feedback on Frame Grabbers status
Rich I/O Interface, integrated multiple input and output
Provides SDK for easy secondary development
Follow GenlCamStandard

Ordering Model

MV-GE1004

Dimensions

* Data involved in the product may cause Differences due to environmental factors. The company will not bear the consequences.

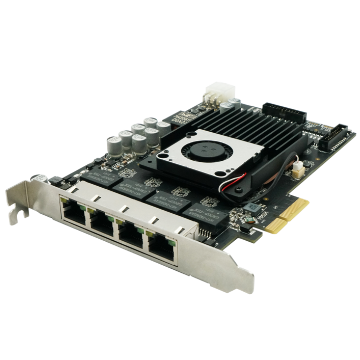

MV-GE1004

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-GE1004

Model

Model	MV-GE1004
Name	4-port GigE Frame Grabber

Memory

Onboard Memory

1 GB DDR3-RAM

Host Interface

Bus Interface	PCI-E gen2 × 4
Bus Interface Performance	1720 MB/s(peak transmission bandwidth), 1600 MB/s(persistent transmission bandwidth)
Bus Indicator	1

Camera Interface

Standard	GigE Vision
Connector	4 × RJ45
Power output	PoE, a single channel can provide up to 15 W (POE functions need to be connected to ATX 6pin Power Supply)
Supported Camera Type	Gigabit Ethernet Industrial Cameras
Supported Camera Quantity	Up to 4
Camera Interface Rate	1 Gbps
Flow Channel	4
Channel Indicator	4 pairs

Processing Functions

Pixel Format

Mono 8/10/10p/12/12p Bayer 8/10/10p/12/12p YUV422Packed,YUV422_YUYV_Packed RGB 8,BGR 8

General-Purpose I/O

I/O Type	24 I/O Interfaces,4 optoelectronic isolation inputs (4.5 ~ 28V), 4 photoelectric isolation outputs (4.5 ~ 28V), 4 channels of 422 inputs and 4 channels of 422 outputs, 4 channels of TTL inputs and 4 channels of TTL outputs
Connector	Bus

Electrical

Typical Power Consumption

10W (excluding PoE)
