HIKROBOT Frame Grabbers

MV-GE1104

We are a global provider of machine vision, mobile robots, and articulated robot products and solutions

Consulting quotation

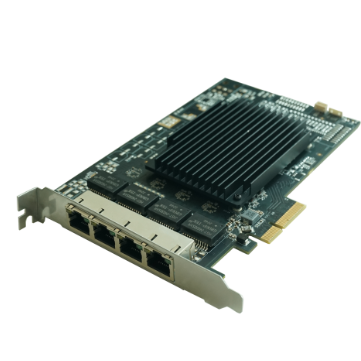

MV-GE1104

Product introduction

Functional characteristics

  • Supports GigE Vision protocol, and the maximum speed of a single network port can reach 1Gbps

  • Compatible with the universal network stack protocol



Ordering Model

MV-GE1104


Dimensions


* Data involved in the product may occur Differences , and the company will not bear the consequences arising therefrom.

Ordering Model

MV-GE1104

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

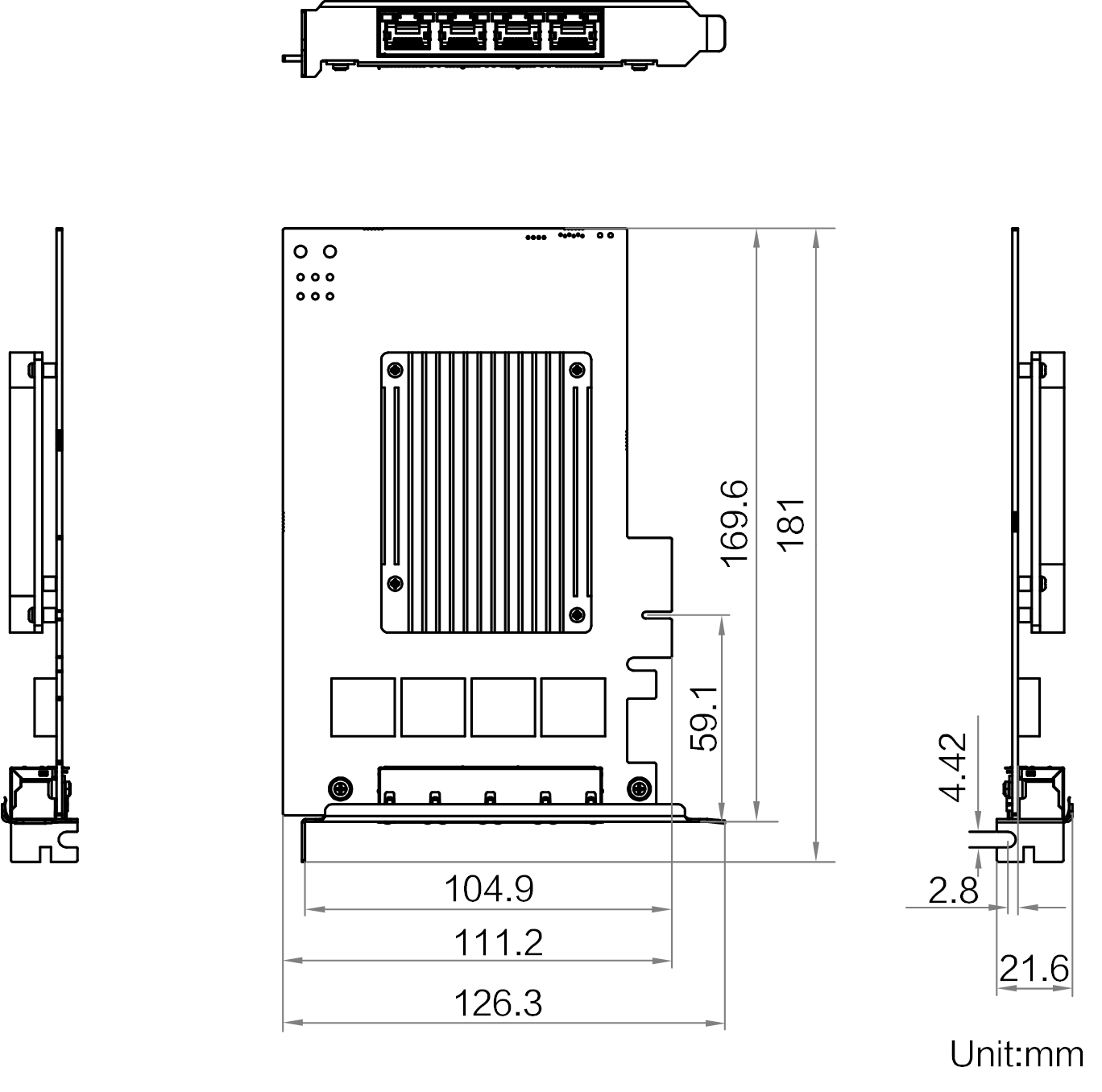

Dimensions

Overall size

Detailed parameters

Ordering Model MV-GE1104
Model
Model MV-GE1104
Name 4-port GigE Frame Grabber
Memory
Onboard Memory 512MB DDR3-RAM
Host Interface
Bus Interface PCI-E gen2 ×4
Bus Interface Performance 860 MB/s(peak transmission bandwidth), 800 MB/s(continuous transmission bandwidth)
Bus Indicator 3
Camera Interface
Standard GigE Vision
Connector 4 × RJ45
Supported Camera Type Gigabit Ethernet Ports Industrial Cameras
Supported Camera Quantity Up to 4
Camera Interface Rate 1 Gbps
Flow Channel 4
Channel Indicator 4 Pair
Processing Functions
Jumbo Macro Frame 2/4/8 KB
Electrical
Typical Power Consumption 10 W
Mechanical
Dimensions 181 mm × 126.3 mm × 21.6 mm
Temperature Operating Temperature0 ~ 60°C, Storage Temperature-20 ~ 70°C
Humidity 10% ~ 95%RH No condensation
General Specifications
Software MVS
Operating System Windows 7/10/11, Linux supports 64-bit Ubuntu 18.04 ~ 24.04
Certification WEEE,RoHS,REACH

Data download

Product manual· SDK ·Development documentation
