HIKROBOT Frame Grabbers

MV-GE2002

We are a global provider of machine vision, mobile robots, and articulated robot products and solutions

Consulting quotation

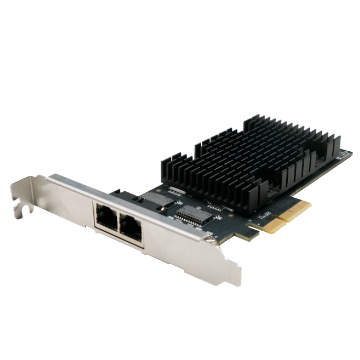

MV-GE2002

Product introduction

Functional characteristics

  • Support IEEE 802.3 protocol

  • Have up to 4 independent bandwidth Gigabit ports

  • Full high gear bars, support for 3U and 4U chassis



Ordering Model

MV-GE2002


Dimensions


* Product data may cause Differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-GE2002

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

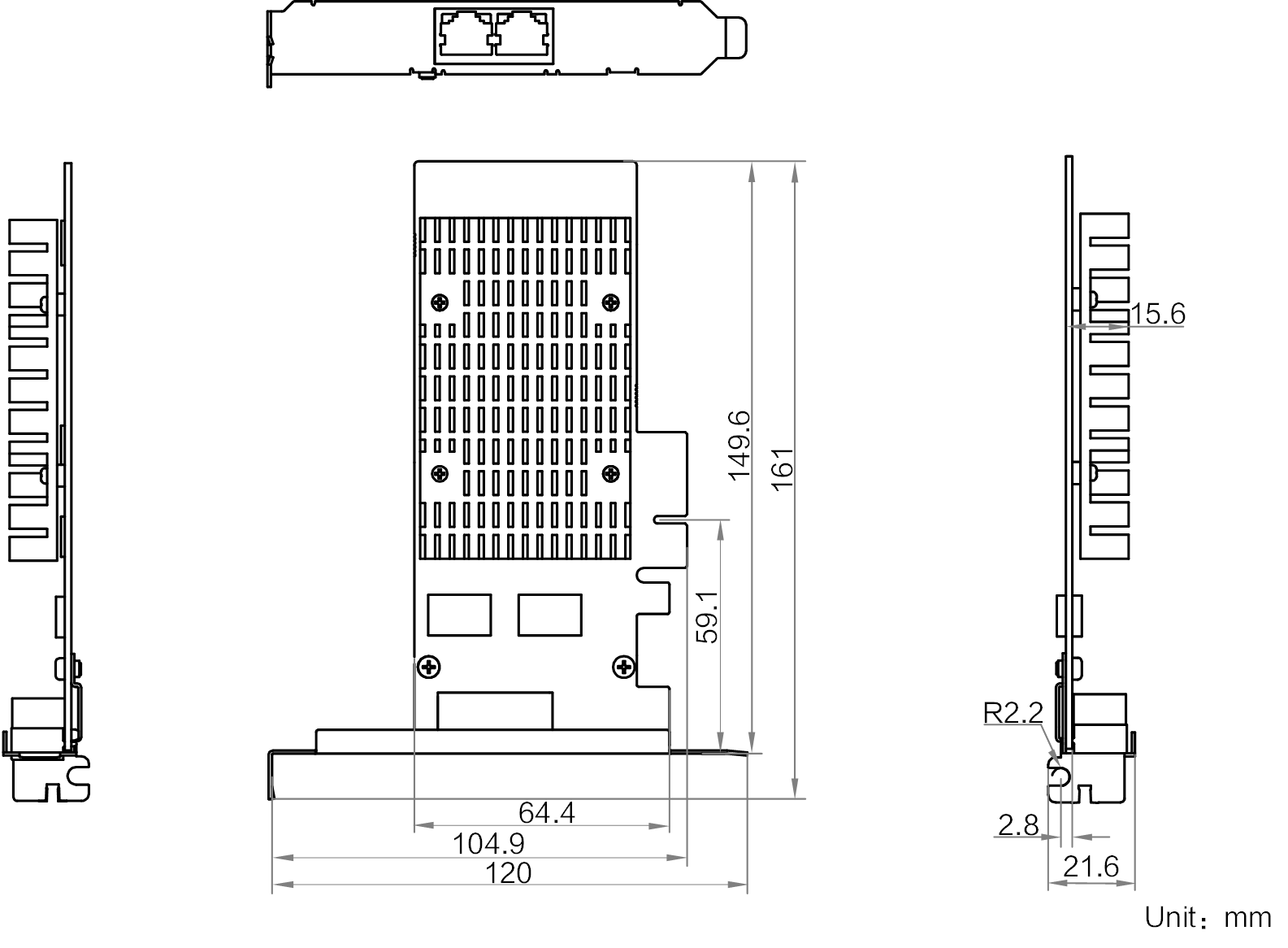

Overall size

Detailed parameters

Ordering Model MV-GE2002
Model
Model MV-GE2002
Name Dual-port NIC V2.0, full-height gear bar
Host Interface
Bus Interface PCI-E gen2 × 4
Bus Interface Performance 860 MB/s(peak transmission bandwidth), 800 MB/s(continuous transmission bandwidth)
Camera Interface
Standard IEEE 802.3
Connector 2 × RJ45
Supported Camera Type Gigabit Ethernet Industrial Cameras
Supported Camera Quantity Up to 2
Camera Interface Rate 10/100/1000 Mbps
Flow Channel 2
Electrical
Typical Power Consumption 4.3 W
Mechanical
Dimensions 161 mm × 120 mm × 21.6 mm
Weight 125 g
Temperature Operating Temperature0 ~ 60°C, Storage Temperature-30 ~ 70°C
Humidity 10% ~ 95%RH No condensation
Heat dissipation method Natural cooling, Fanless heat sink
General Specifications
Operating System Windows 7/10/11,Linux
Certification CE,RoHS

Data download

Product manual· SDK ·Development documentation
