HIKROBOT Frame Grabbers

MV-GE1104P

We are a global provider of machine vision, mobile robots, and articulated robot products and solutions

Consulting quotation

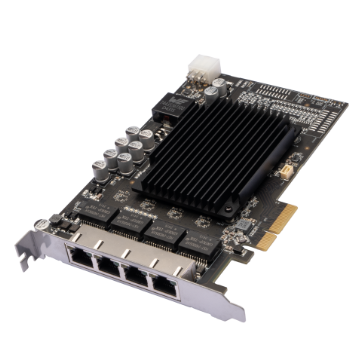

MV-GE1104P

Product introduction

Functional characteristics

  • Supports GigE Vision protocol, and the maximum speed of a single network port can reach 1Gbps

  • Gigabit PoE network port with up to 4 independent bandwidths

  • Compatible with the common network stack protocol



Ordering Model

MV-GE1104P


Dimensions


* Data involved in the product may cause Differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-GE1104P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

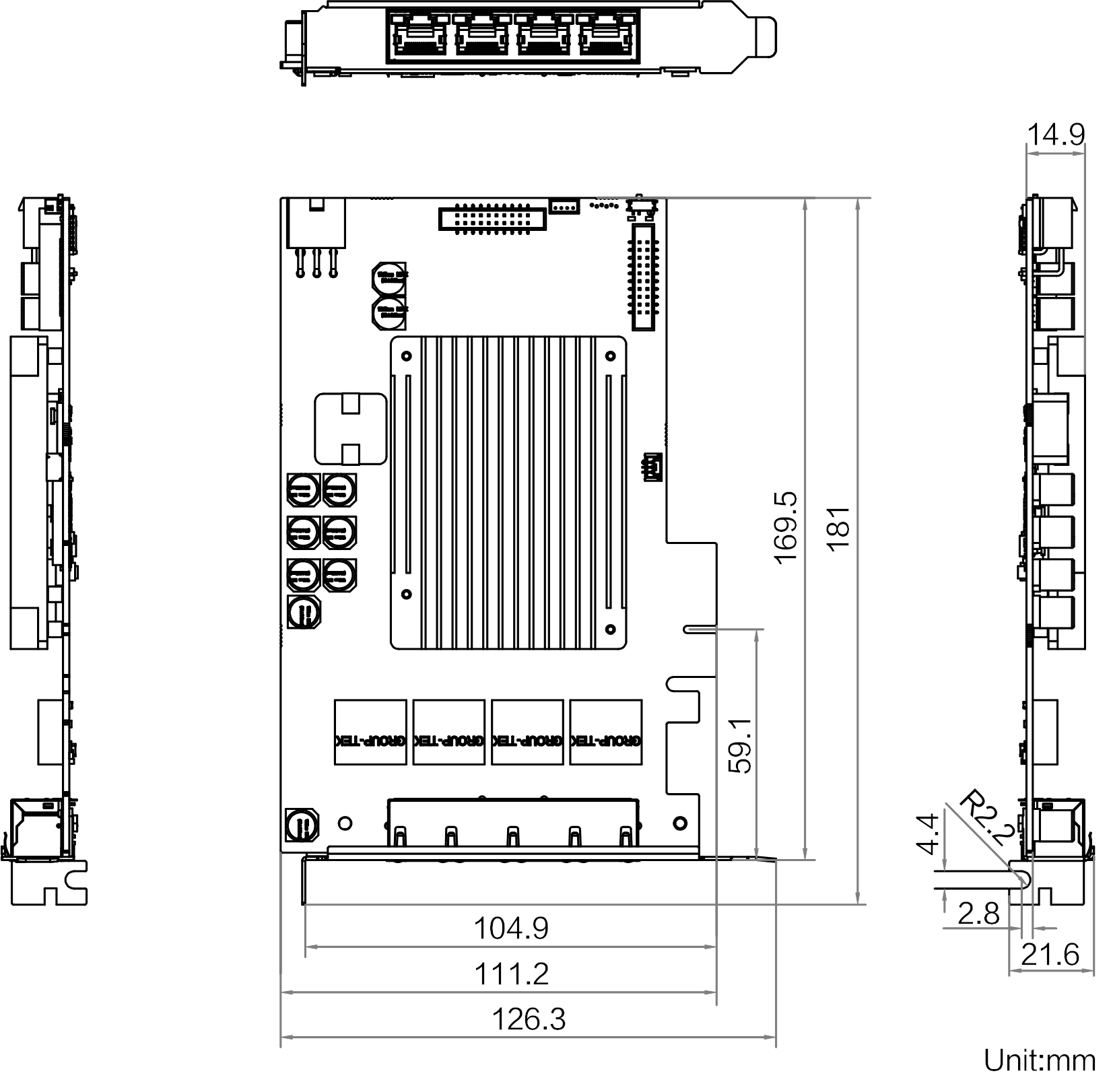

Overall size

Detailed parameters

Ordering Model MV-GE1104P
Model
Model MV-GE1104P
Name 4-port GigE Frame Grabber, PoE
Memory
Onboard Memory 512MB DDR3-RAM
Host Interface
Bus Interface PCI-E gen2 ×2
Bus Interface Performance 860 MB/s(peak transmission bandwidth), 800 MB/s(continuous transmission bandwidth)
Bus Indicator 3
Camera Interface
Standard GigE Vision
Connector 4 × RJ45
Power output PoE, a single channel can provide up to 15.4 W (PoE function requires access to ATXPower Supply)
Supported Camera Type Gigabit Ethernet Industrial Cameras
Supported Camera Quantity Up to 4
Camera Interface Rate 1 Gbps
Flow Channel 4
Channel Indicator 4 pairs
Processing Functions
Jumbo macro frames 9.5 KB
Electrical
Typical Power Consumption 4.7 W(excluding PoE)
Mechanical
Dimensions 181 mm × 126.3 mm × 21.6 mm
Temperature Operating Temperature0 ~ 60°C, Storage Temperature-20 ~ 70°C
Humidity 10% ~ 95%RH No condensation
General Specifications
Software MVS
Operating System Windows 7/10/11,Linux supports 64-bit Ubuntu 18.04 ~ 24.04
Certification CE,RoHS

Data download

Product manual· SDK ·Development documentation
