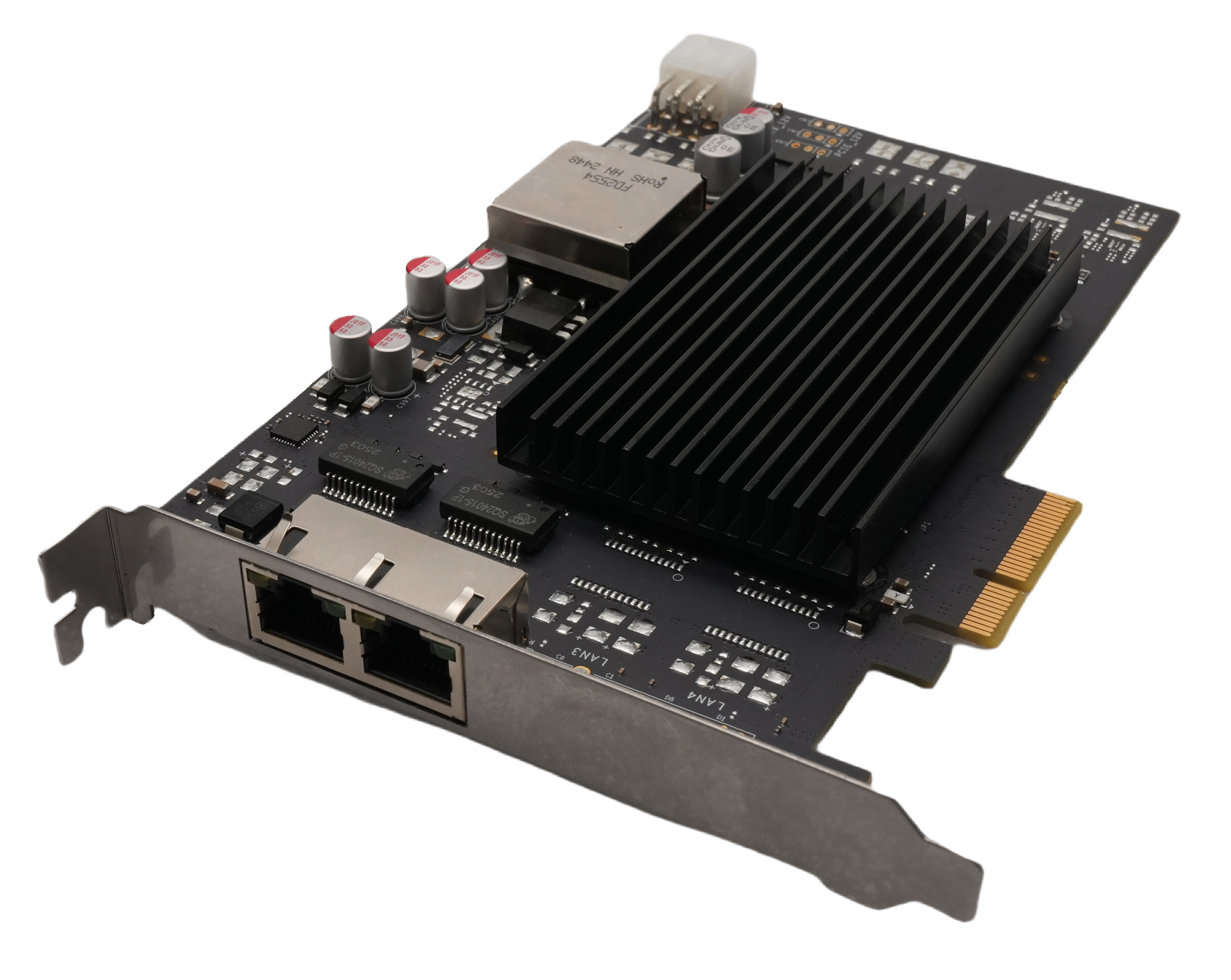

MV-GE4002P

Product introduction

Features

  • Supports IEEE 802.3 protocol

  • Comply with PCI-E gen2 × 4 Standard

  • 2.5G PoE network ports with up to 4 independent bandwidths

  • Supports adaptive rates of 10/100/1000/2500Mbps

  • Supports IEEE 802.3af specification, provides up to 15.4W Power Supply per port

  • Supports 9KB jumbo frames

  • Full height bar, supports 3U, 4U chassis



Ordering Model

MV-GE4002P


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-GE4002P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

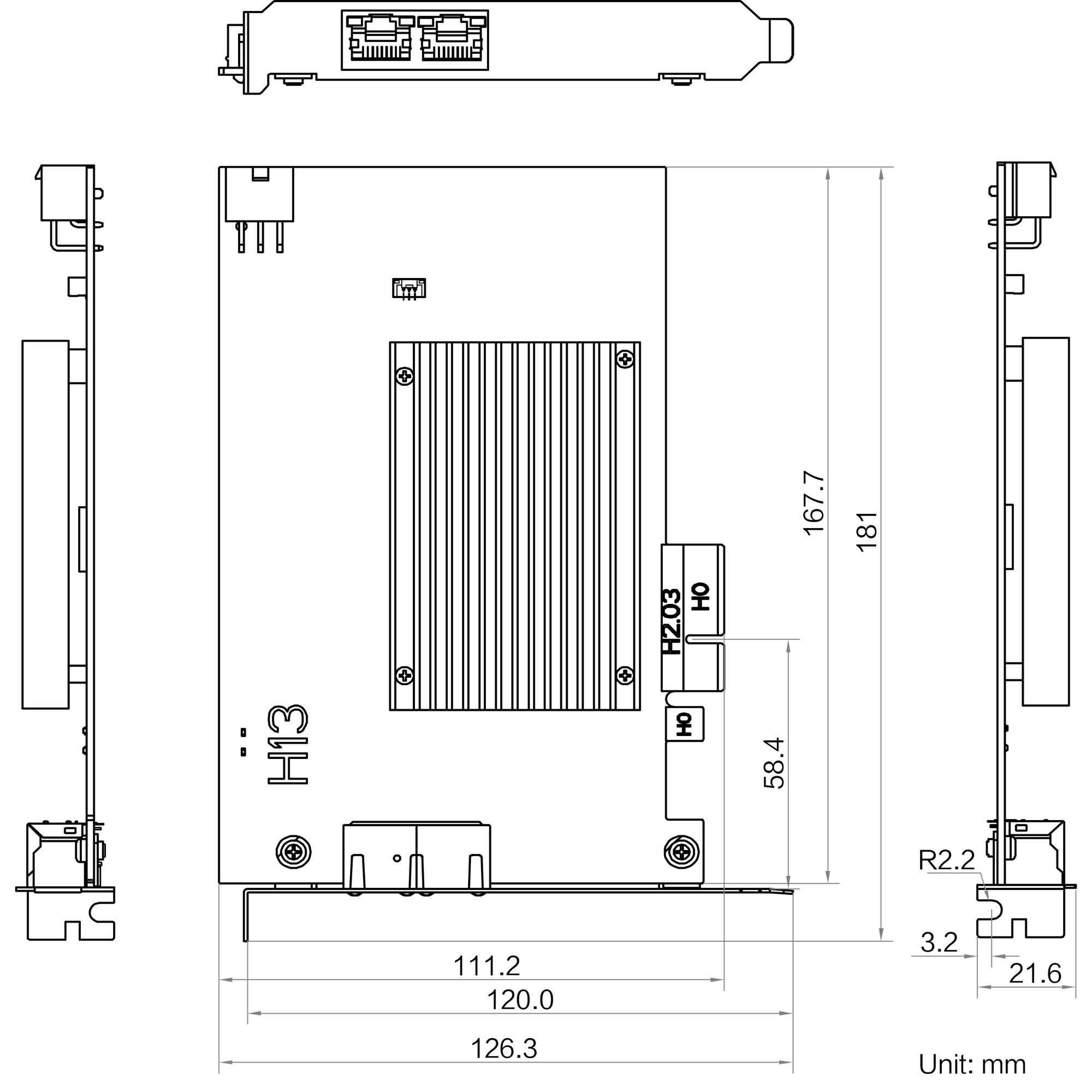

Dimensions

Overall size

Detailed parameters

Ordering Model MV-GE4002P
Model
Model MV-GE4002P
Name Dual port 2.5G Network Card, POE
Host Interface
Bus Interface PCI-E gen2 × 4
Bus Interface Performance 2000MB/s(peak transmission bandwidth)
Camera Interface
Standard IEEE 802.3
Connector 2 × RJ45
Supported Camera Type Gigabit Ethernet Industrial Cameras, 2.5G Ethernet Industrial Cameras
Supported Camera Quantity 2
Camera Interface Rate 10/100/1000/2500 Mbps
Flow Channel 2
Electrical
Typical Power Consumption 4 W(excluding PoE)
Mechanical
Dimensions 181 mm × 126.3 mm × 21.6 mm
Weight Approximately 202 g
Temperature Operating Temperature0 ~ 55°C, Storage Temperature-20 ~ 70°C
Humidity 10% ~ 95% RH No condensation
Heat dissipation method Natural cooling, Fanless heat sink
General Specifications
Operating System Windows 7/10/11,Linux supports 64-bit Ubuntu 18.04 ~ 24.04
Certification CE,RoHS,KC

Data download

Product manual· SDK ·Development documentation
